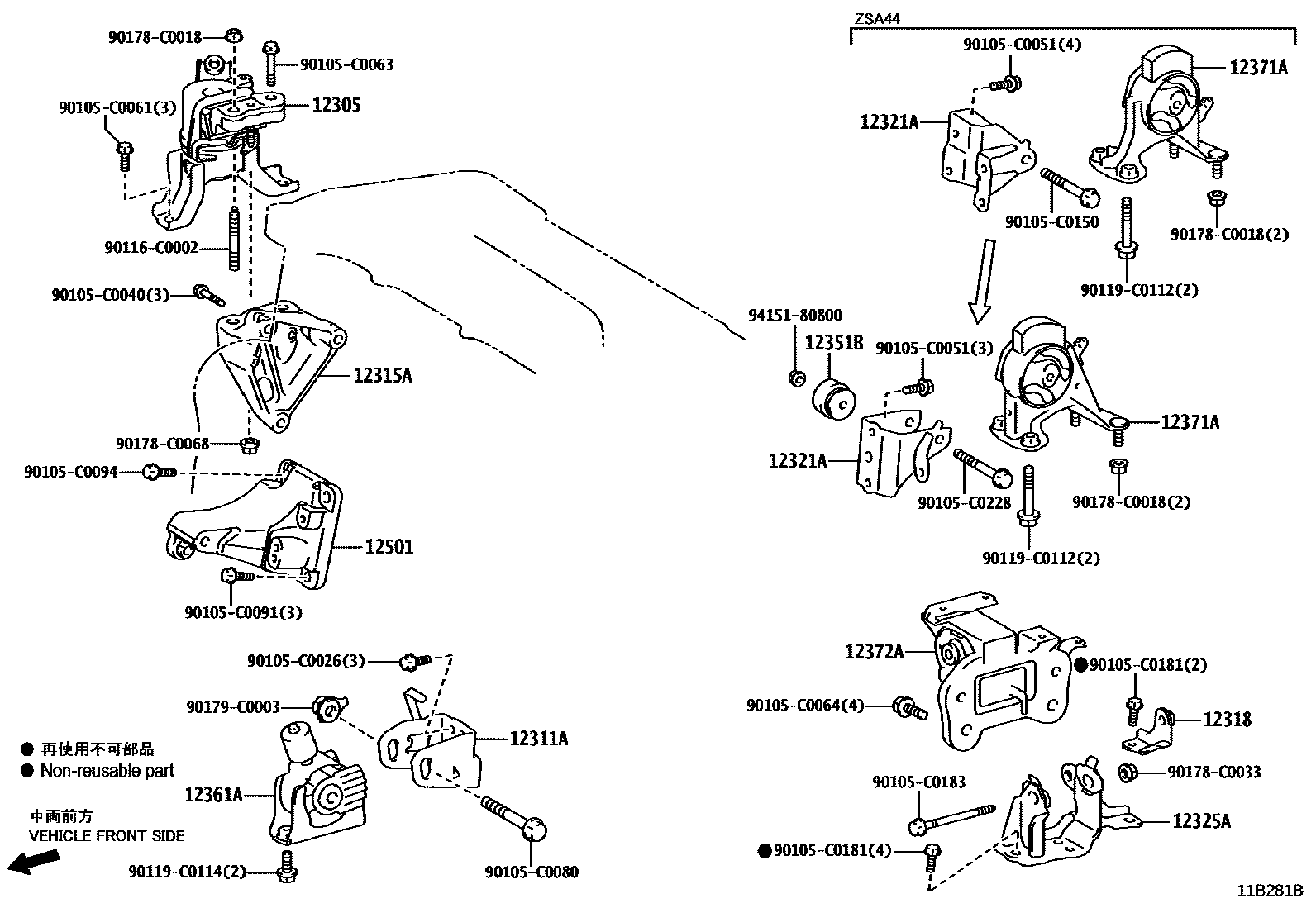

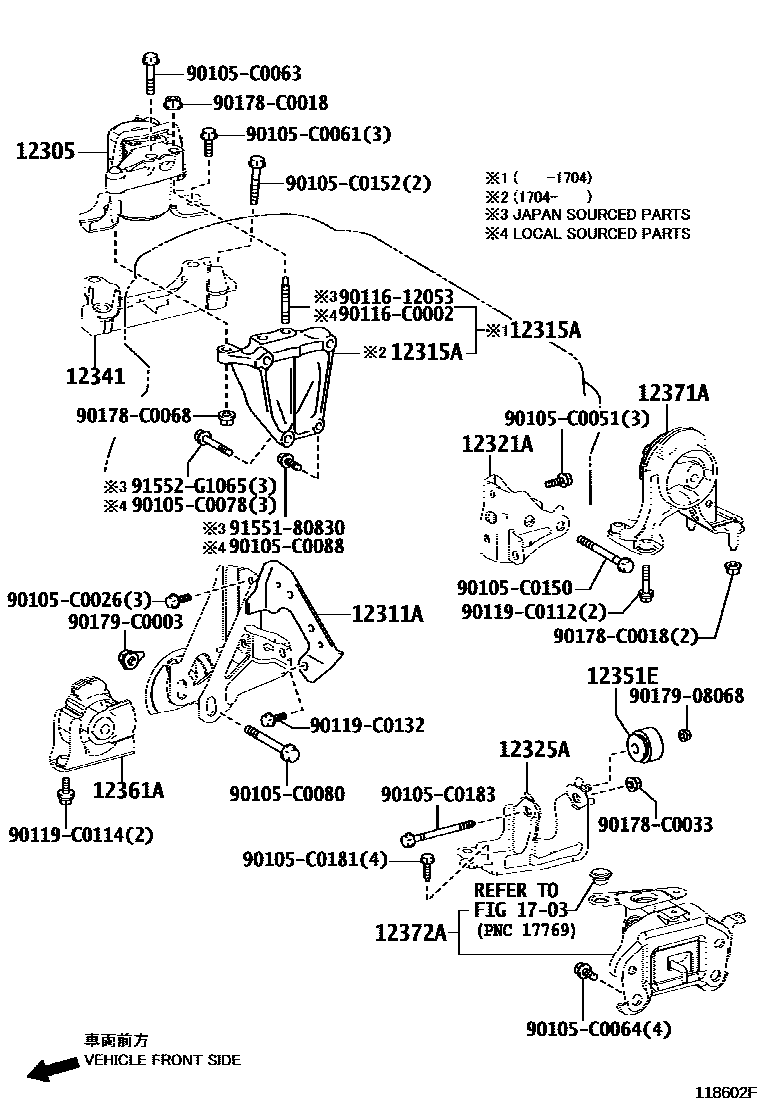

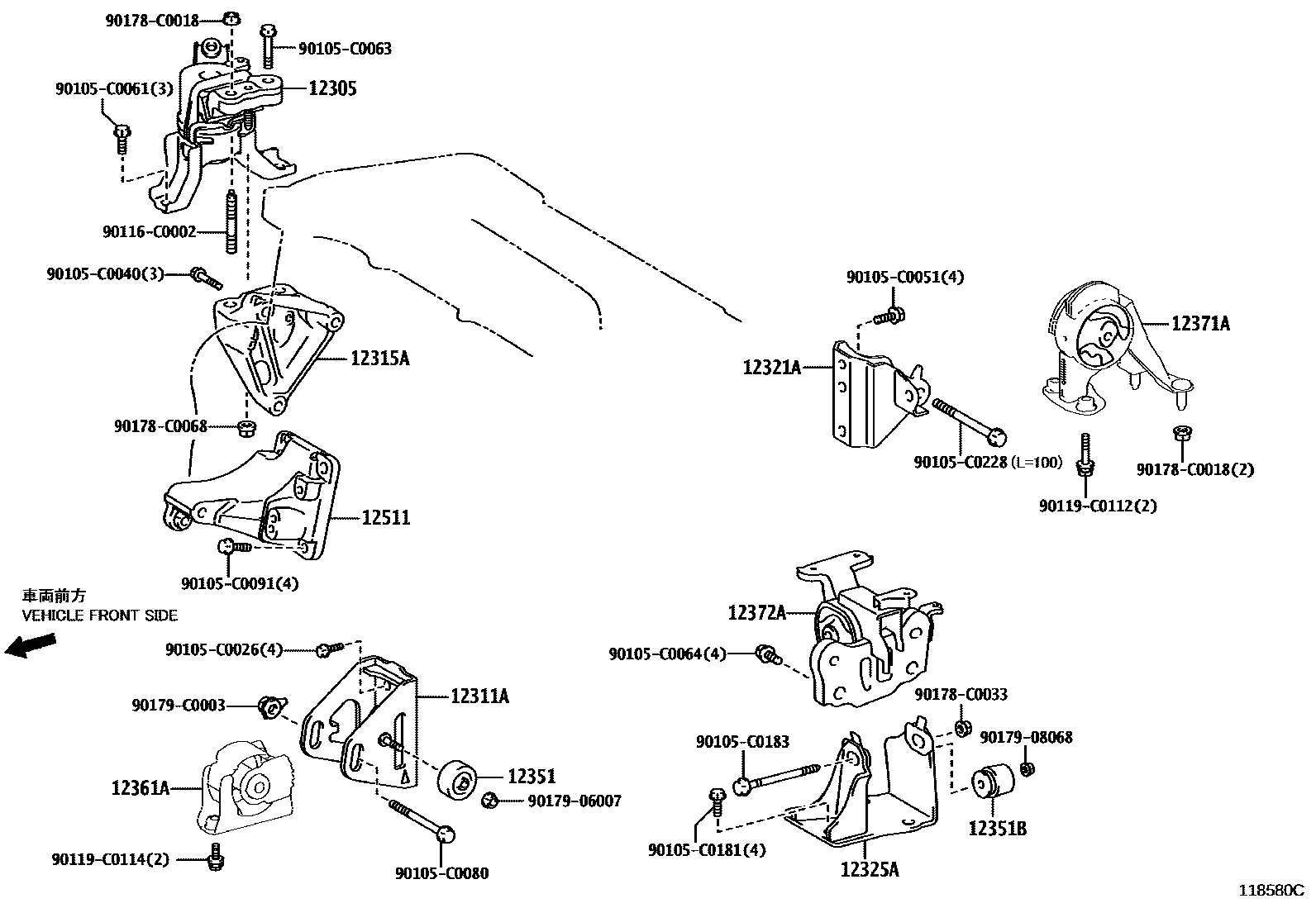

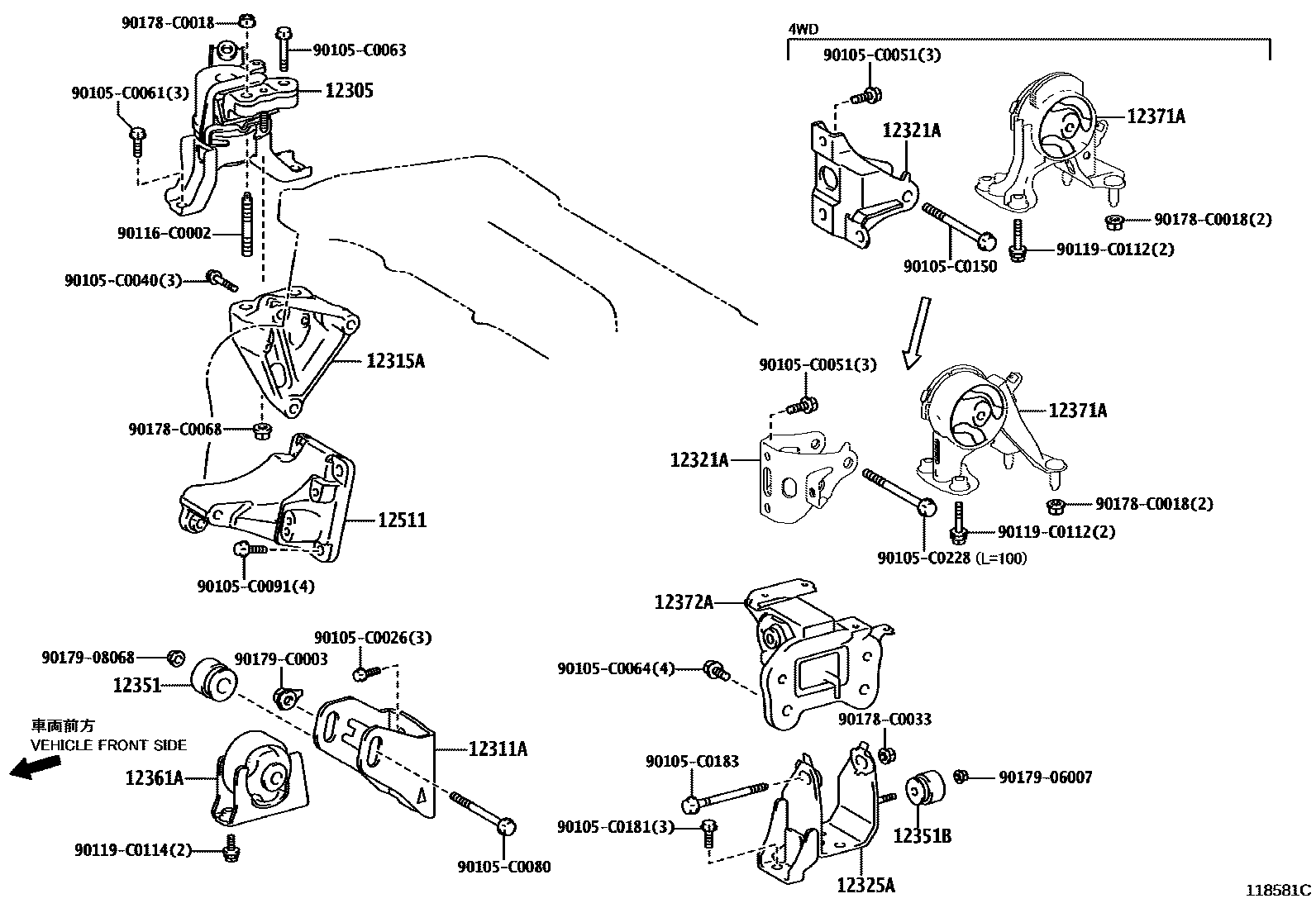

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T180 · 12305-0T350 · 12305-0V040 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0T400 · 12311-0T410 · 12311-0T530 · 12311-0V150 · 12311-0V200 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T010 · 12315-0V030 · 12315-0V031 · 12315-36010 · 12315-36011 |
| 12318 | Engine left mounting bracket | 12318-0T020 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0T170 · 12321-0T430 · 12321-0T440 · 12321-0T620 · 12321-0T630 · 12321-0V030 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T380 · 12325-0T390 · 12325-0T500 · 12325-0V020 |
| 12341 | engine mounting spacer | 12341-0V020 · 12341-26011 |
| 12351 | engine mount shock absorber | 12351-0T180 · 12351-0T200 |
| 12351B | engine mount shock absorber | 12351-0T040 · 12351-0T200 · 12351-0T210 |
| 12351E | engine mount shock absorber | 12351-0T040 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T240 · 12361-0T250 · 12361-0T420 · 12361-0V150 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0T290 · 12371-0T300 · 12371-0T310 · 12371-0T490 · 12371-0T500 · 12371-0V050 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T350 · 12372-0T360 · 12372-0T590 · 12372-0V080 |
| 12501 | Generator bracket sub-assembly | 12501-0T050 |
| 12511 | No. 1 generator bracket | 12511-0T010 |
