Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 11 PNC and OE references.

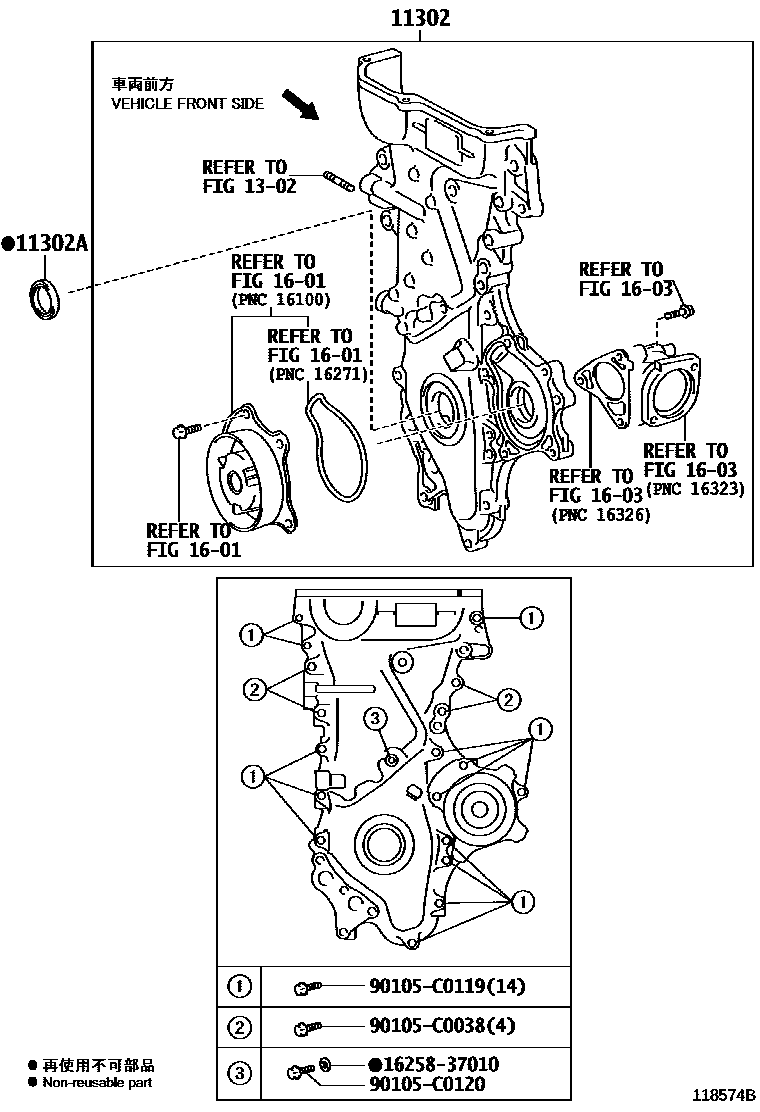

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 118574B
Timing Gear Cover & Rear End Plate — 118574B (201308 – 999999)

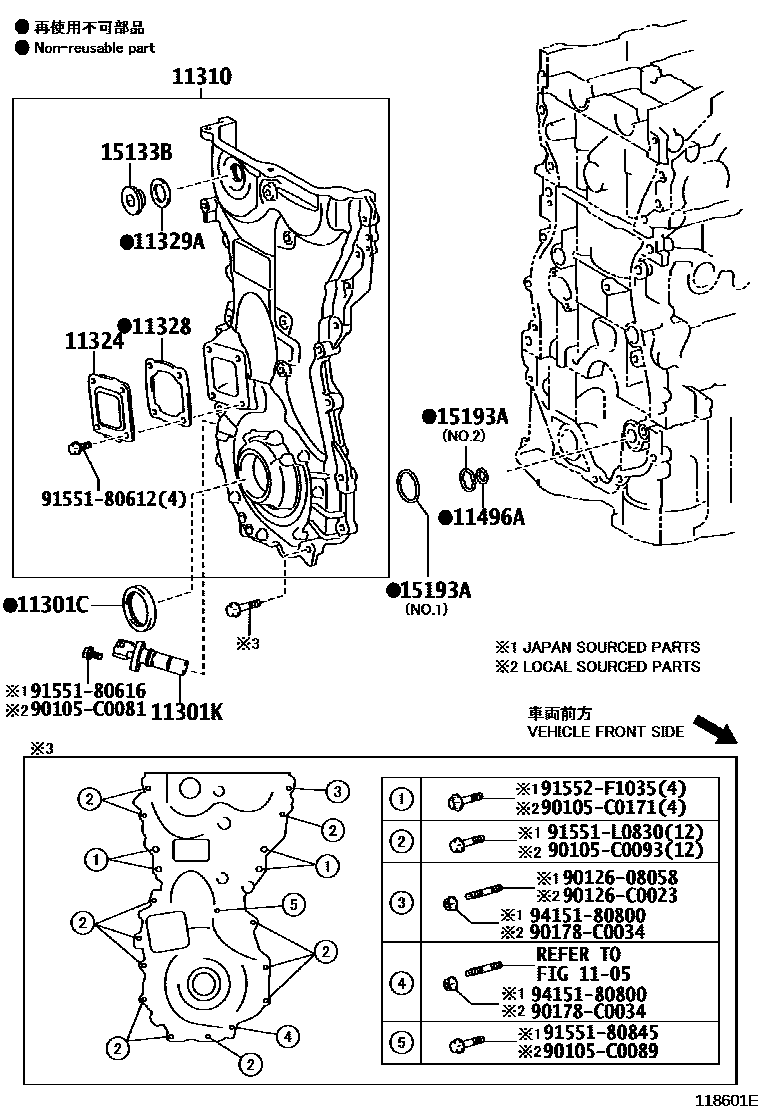

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 118601E
Timing Gear Cover & Rear End Plate — 118601E (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40042 · 90311-42061 · 90311-C0017 · 90311-C0036 · 90311-C0040 · 90311-C0046
11301Kcrankshaft position sensor90919-05070 · 90919-05088
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T030 · 11310-0T130
11302AOil seal (for timing chain or timing belt cover)90311-T0024
11310Timing chain cover assembly11310-0V030 · 11310-36020
11324Timing chain cover11324-36010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-36020
11329ANo. 2 timing belt or chain cover gasket11329-36010 · 11329-36020
11496AOil hole cover gasket11496-0V010 · 11496-36010
15133BPLUG, OIL PUMP RELIEF VALVE15133-36020
15193Aoil pump gasket15193-0V010 · 15193-36010 · 15197-0V010 · 15197-36010
