Toyota RAV4 Cylinder Block — Figure 1105

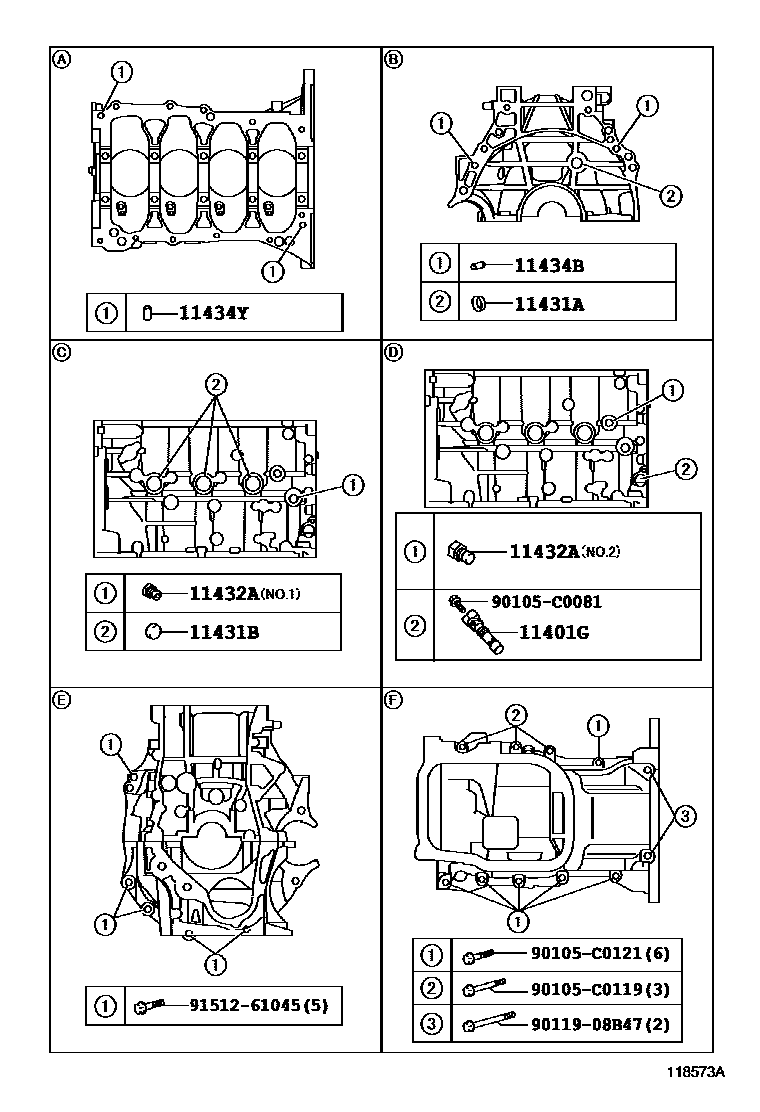

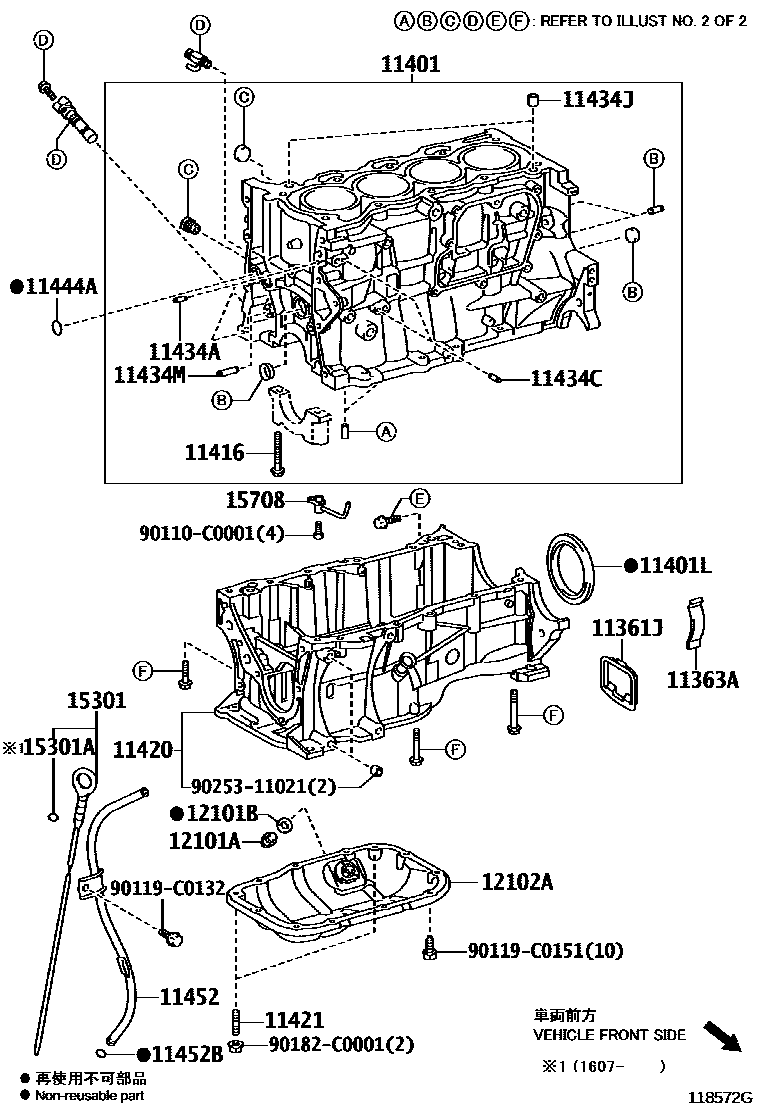

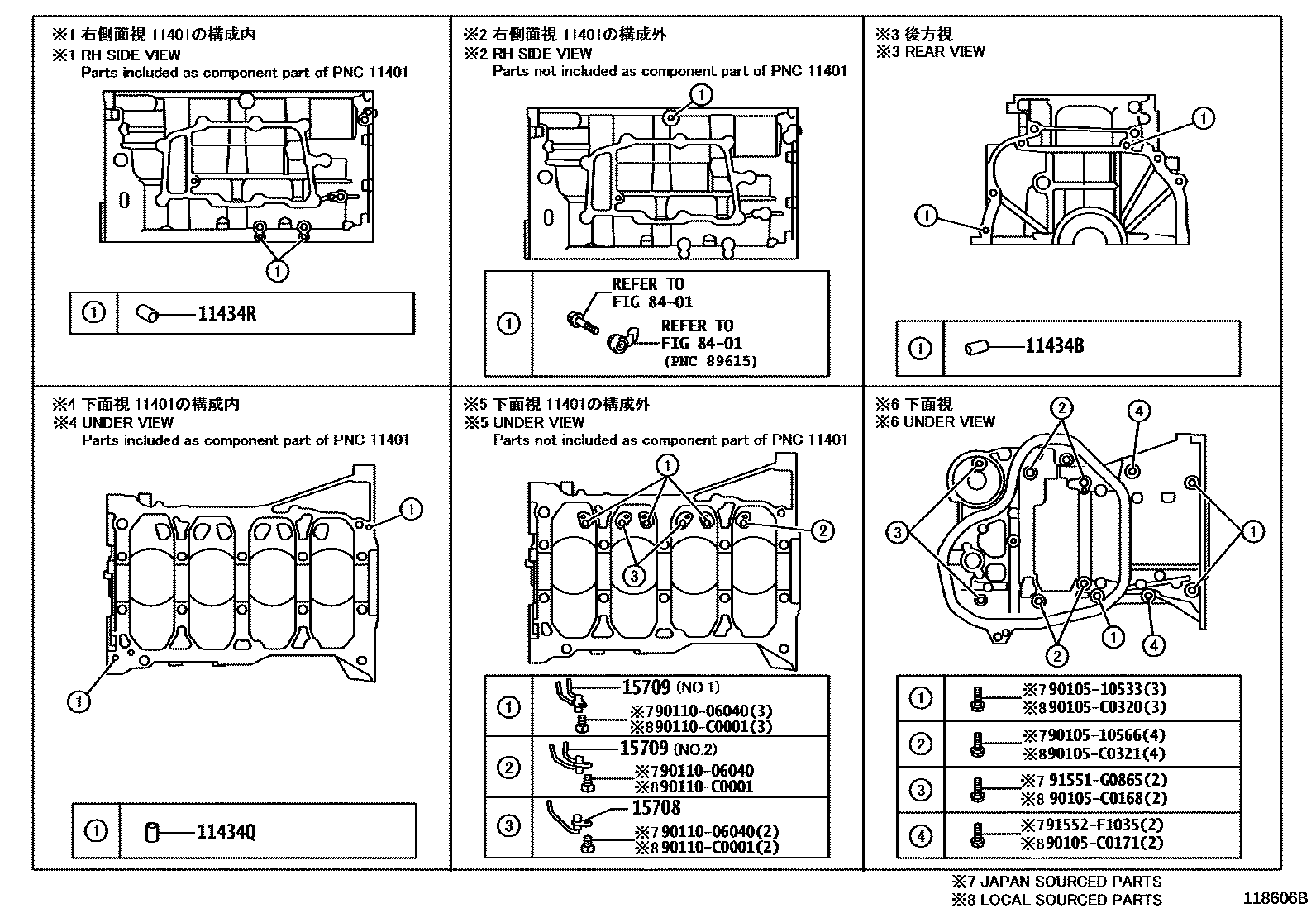

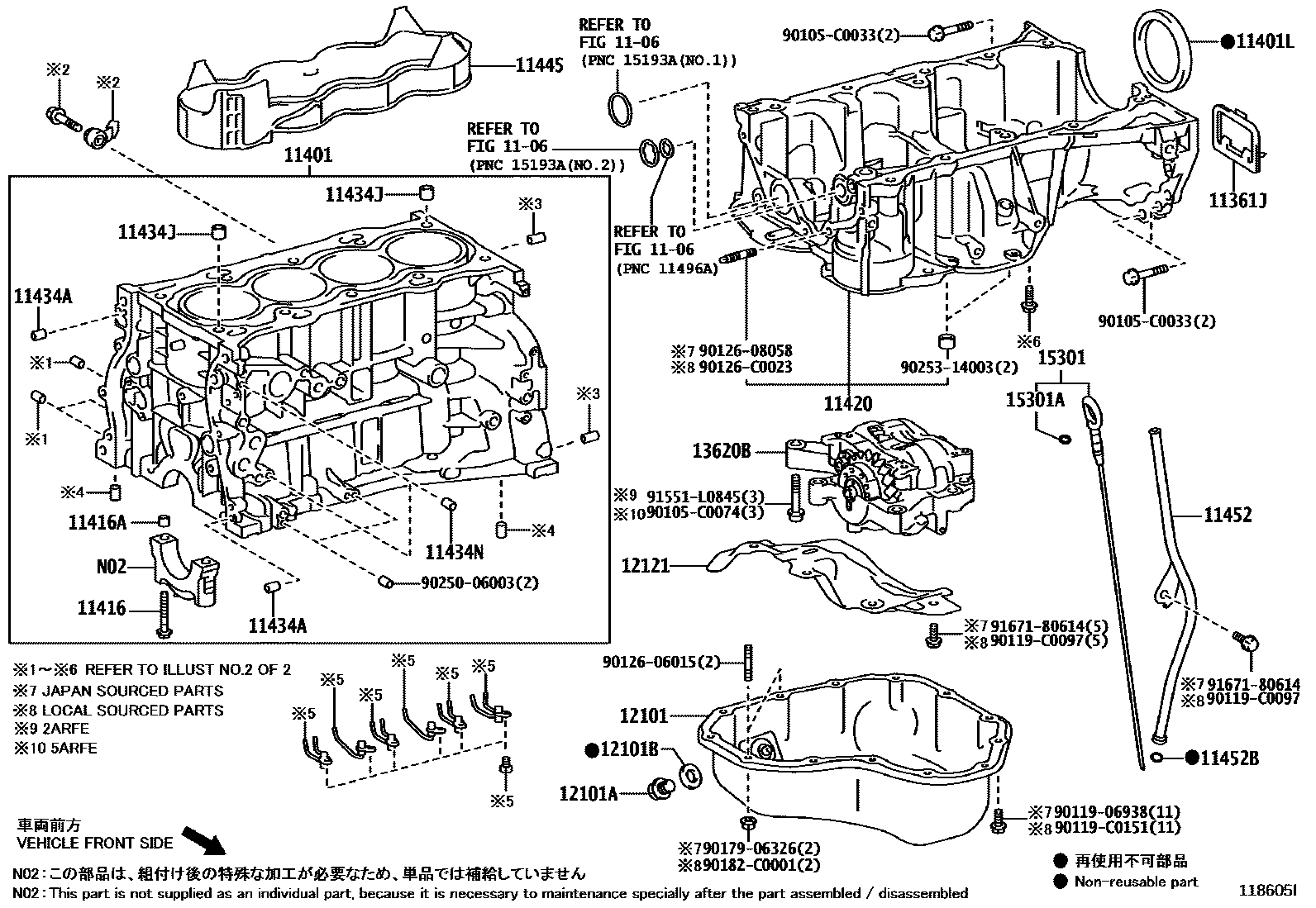

Toyota RAV4 EPC diagram 1105, Cylinder Block, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0T020 · 11361-0V020 · 11361-21011 · 11361-28010 |
| 11363A | Flywheel housing side cover | 11363-0T020 · 11363-21010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11410-09550 · 11410-09790 · 11410-39126 · 11410-39165 · 11410-39166 · 11410-39167 · 11410-39275 |
| 11401G | crankshaft position sensor | 90919-05070 · 90919-05091 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-89015 · 90311-C0007 · 90311-C0023 · 90311-C0041 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02163 · 90910-02173 · 90910-C2001 · 90910-C2005 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 · 90253-C0006 |
| 11420 | Reinforce crankcase assembly | 11420-0T070 · 11420-0V020 · 11420-36020 |
| 11421 | Stud bolts (for oil pan) | 90126-06028 · 90126-C0001 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-42500 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 · 90250-C0009 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-C0012 |
| 11434C | Direct sales (for cylinder head components) | 90250-C0009 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15001 · 90253-C0003 · 90253-C0008 |
| 11434M | Direct pin (for chain tensioner) | 90250-C0006 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434Y | Direct sales (for oil pan) | 90250-C0011 |
| 11444A | O-ring | 90301-C0033 |
| 11445 | Cylinder block water jacket spacer | 11445-0V020 · 11445-36010 |
| 11452 | Engine oil level gauge guide | 11452-0T070 · 11452-0V020 · 11452-36050 · 11452-37020 |
| 11452B | O-ring (for oil level gauge guide) | 90301-C0007 · 90301-C0037 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-0V040 · 12101-36050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-C0013 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 · 90430-C0005 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T010 |
| 12121 | No. 1 oil pan baffle | 12121-0V020 · 12121-36030 |
| 13620B | Engine balancer assembly | 13620-0V011 · 13620-36020 · 13620-36060 |
| 15301 | Engine oil level scoring assembly | 15301-0T040 · 15301-0V010 · 15301-36031 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0V020 · 15708-36010 · 15708-37012 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-36010 · 15709-36020 |
