Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

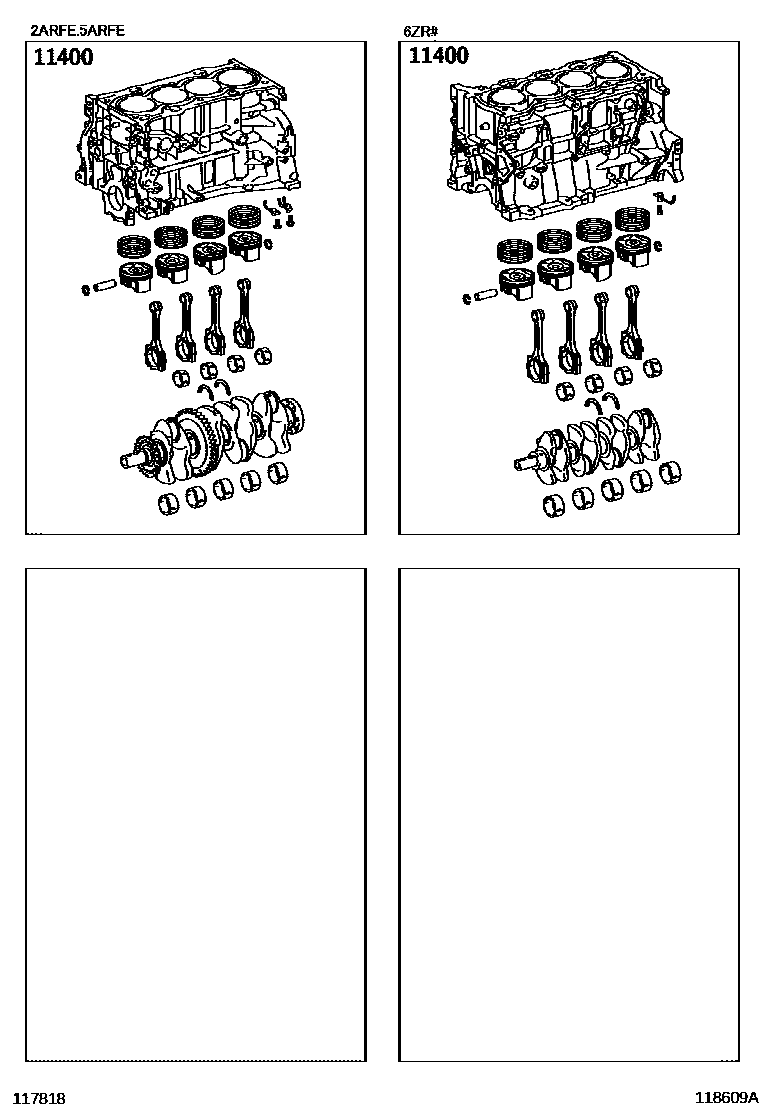

Toyota RAV4 Short Block Assembly EPC diagram — 118609A
Short Block Assembly — 118609A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0T240 · 11400-0T430 · 11400-0T490 · 11400-0V040 · 11400-0V150 · 11400-36220 · 11400-36240
