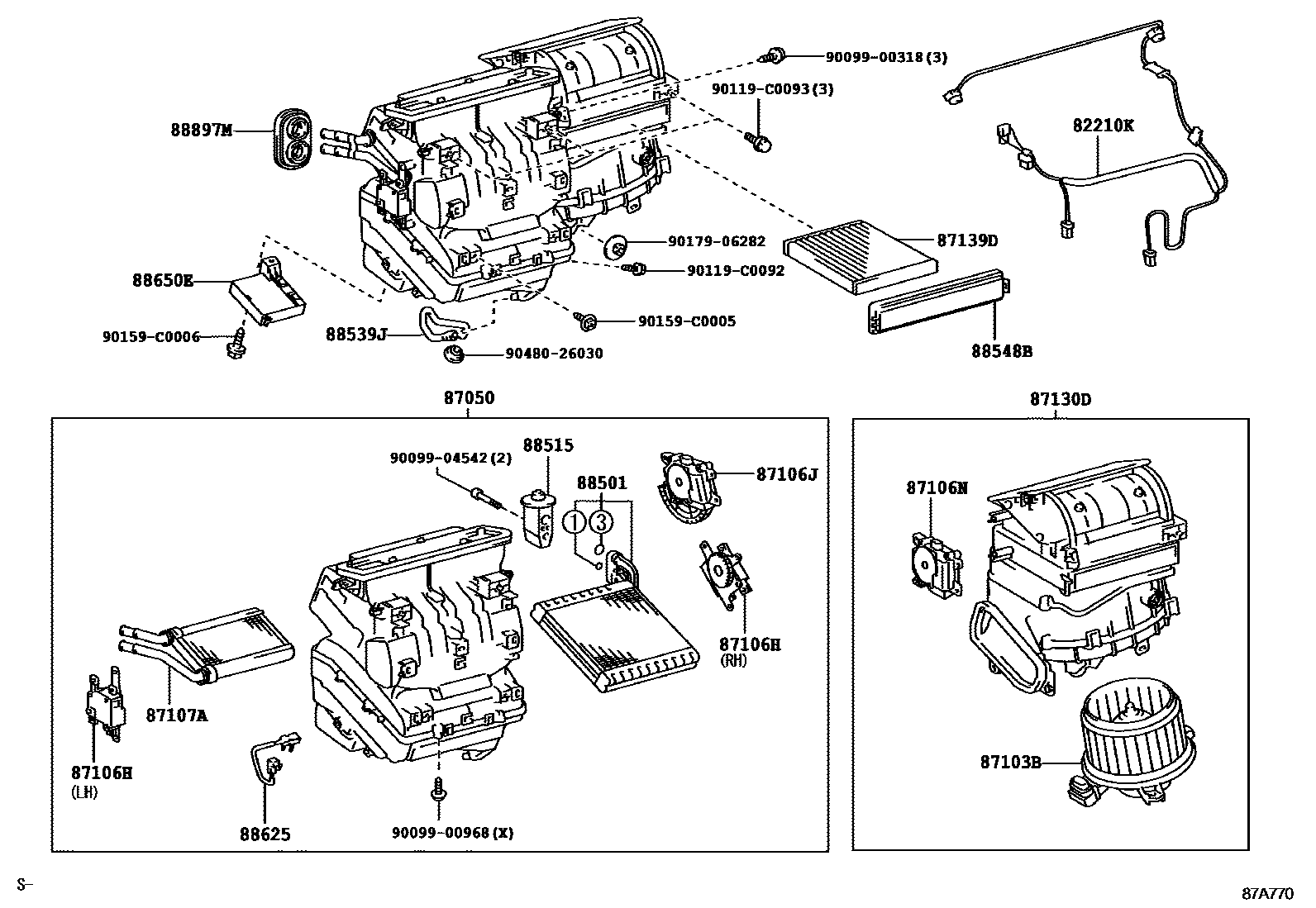

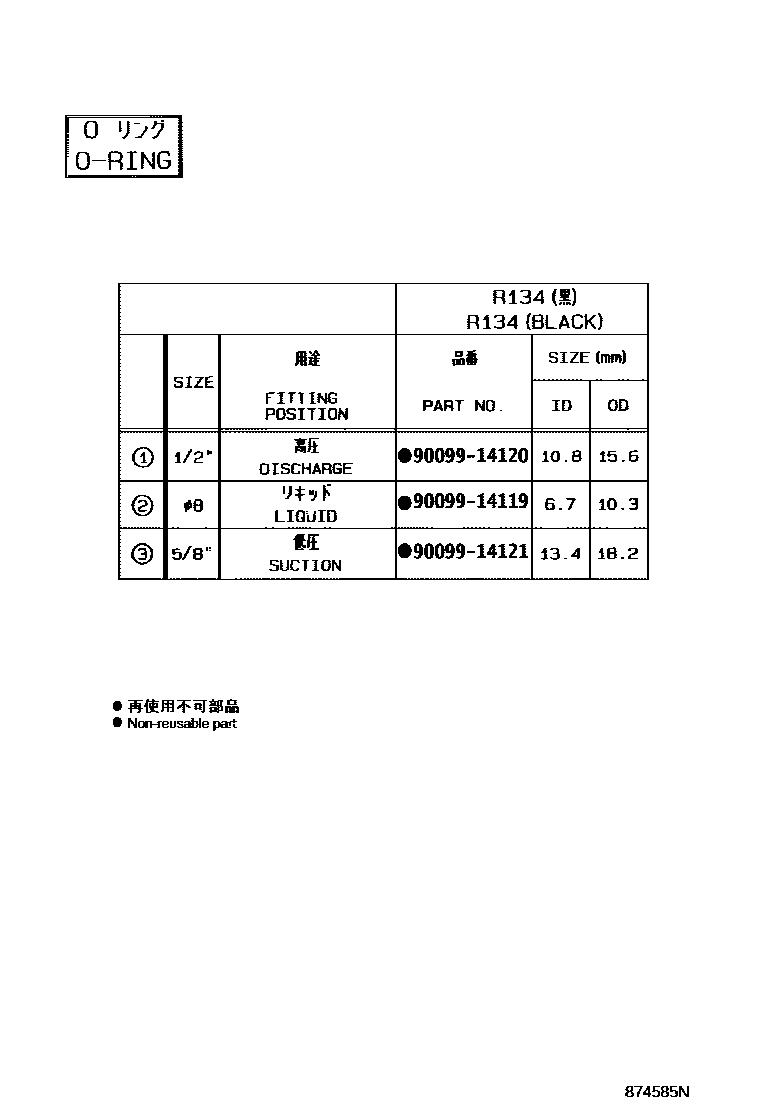

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0R030 |
| 87050 | Air conditioning radiator assembly | 87050-0R020 |
| 87103B | Blower motor sub-assembly with fan | 87103-0R020 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-0R040 · 87106-0R050 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02320 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02340 |
| 87107A | Heater radiator device sub-assembly | 87107-02220 |
| 87130D | Blower assembly | 87130-0R020 |
| 87139D | Air fine filter element | 87139-06060 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02211 · 88501-02212 |
| 88515 | Cooler expansion valve | 88515-02130 · 88515-0D100 |
| 88539J | Cooler drain hose | 88539-0R030 |
| 88548B | air filter housing | 88548-02100 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D100 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0R050 · 88650-0R100 |
| 88897M | Seals (for heater tubes) | 87128-02020 |
