Toyota RAV4 后视镜 — Figure 8701

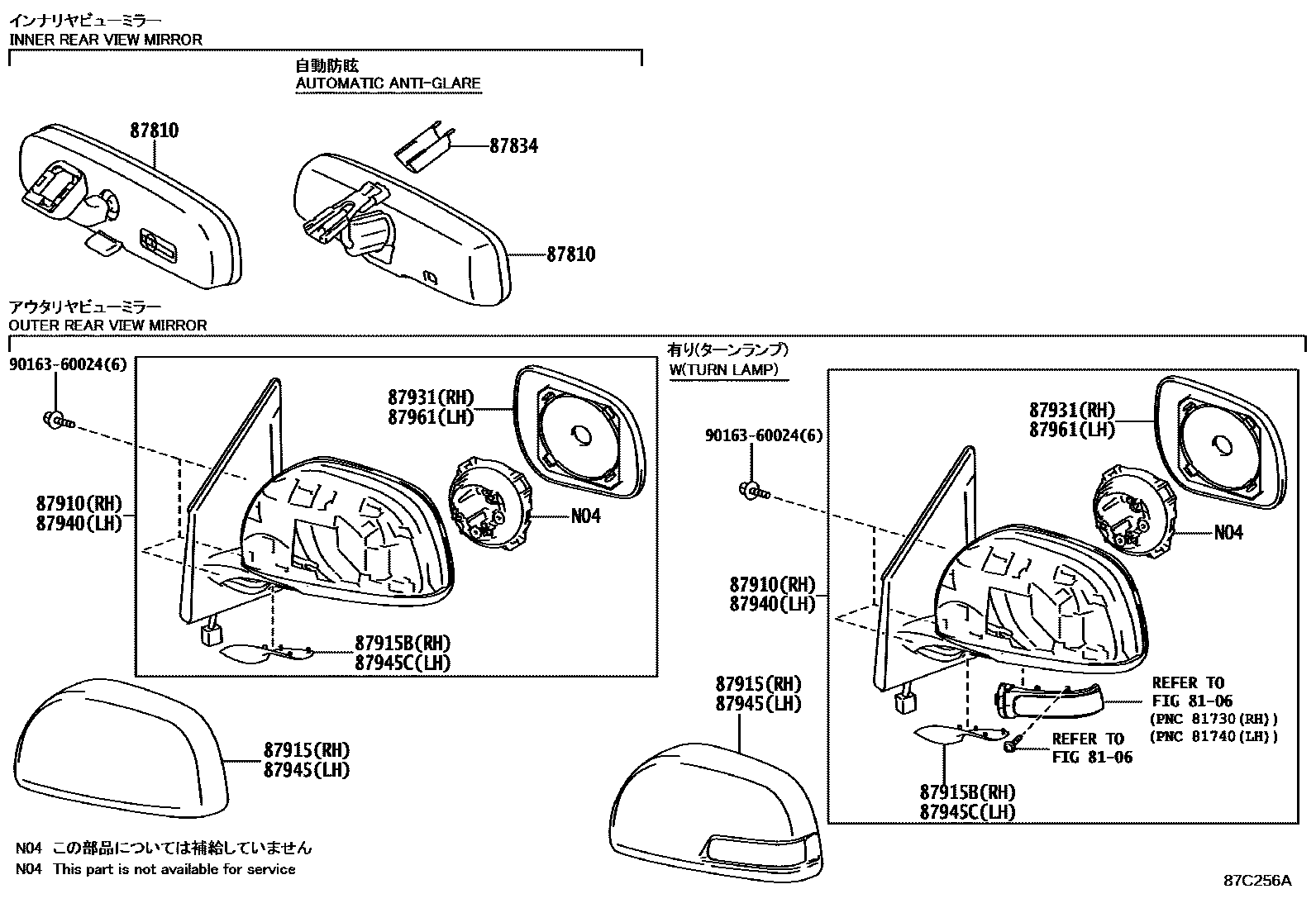

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06061 · 87810-0R010 · 87810-YY020 · 87810-YY030 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-0R010 |
| 87910 | Right exterior rearview mirror assembly | 87910-0R030 · 87910-0R040 · 87910-0R050 · 87910-0R060 |
| 87915 | Right exterior rearview mirror cover | 87915-0F906 · 87915-0R900 |
| 87915B | Right exterior rearview mirror lower cover | 87915-0R040 |
| 87931 | Right exterior rearview mirror | 87931-0R030 |
| 87940 | Left exterior rearview mirror assembly | 87940-0R030 · 87940-0R050 · 87940-0R060 · 87940-0R070 |
| 87945 | Left exterior rearview mirror cap | 87945-0R900 · 87945-0R901 |
| 87945C | Left exterior rearview mirror lower cover | 87945-0R040 |
| 87961 | Left exterior rearview mirror | 87961-0R030 · 87961-0R050 |
