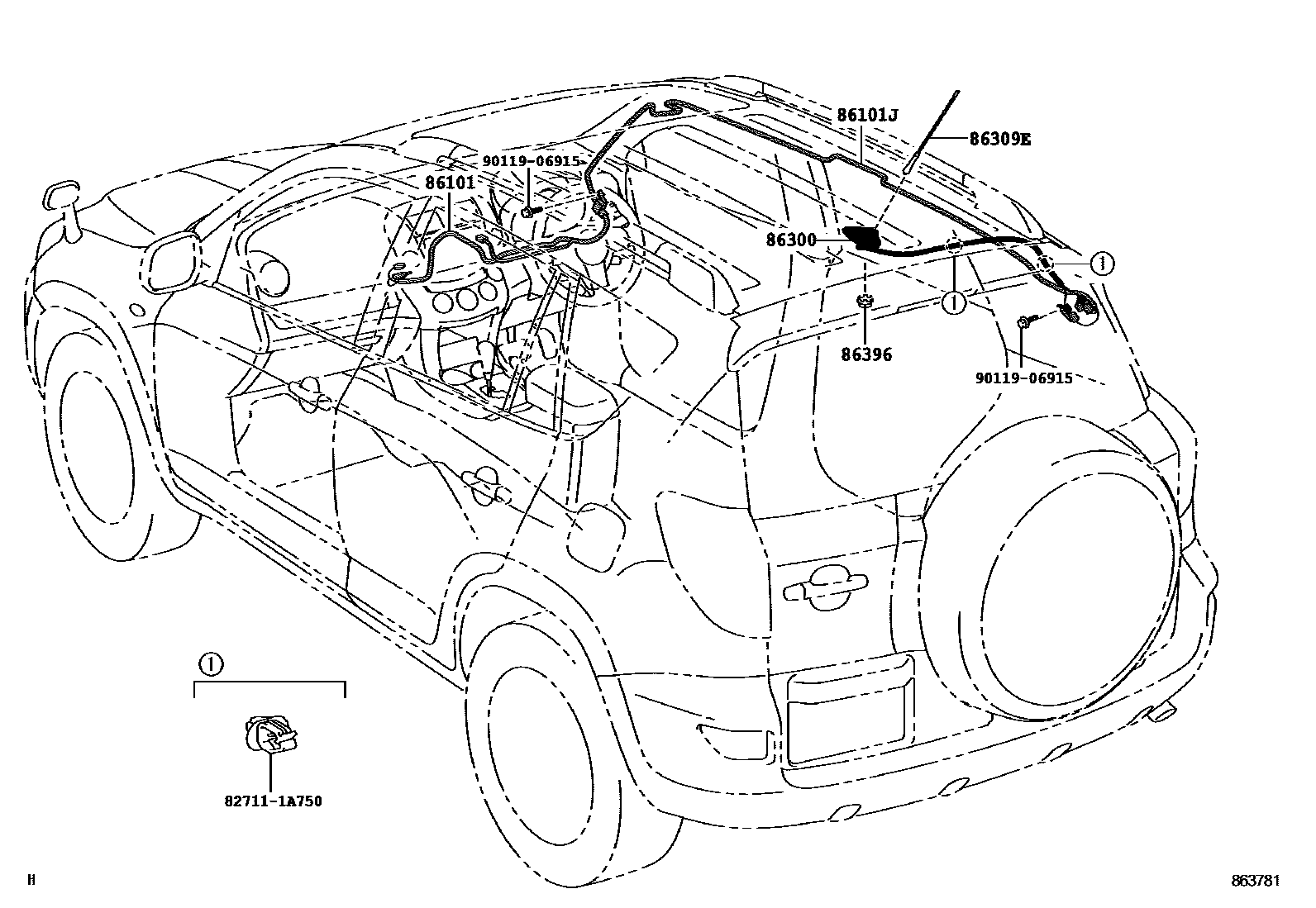

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0R100 · 86101-0R101 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0R090 · 86101-0R091 |
| 86300 | Antenna assembly with fixing parts | 86300-0R040 |
| 86309E | Roof antenna sub-assembly | 86309-0D030 |
| 86396 | Antenna nut | 86396-0D010 |
