Toyota RAV4 导航和前监视器显示屏 — Figure 8603

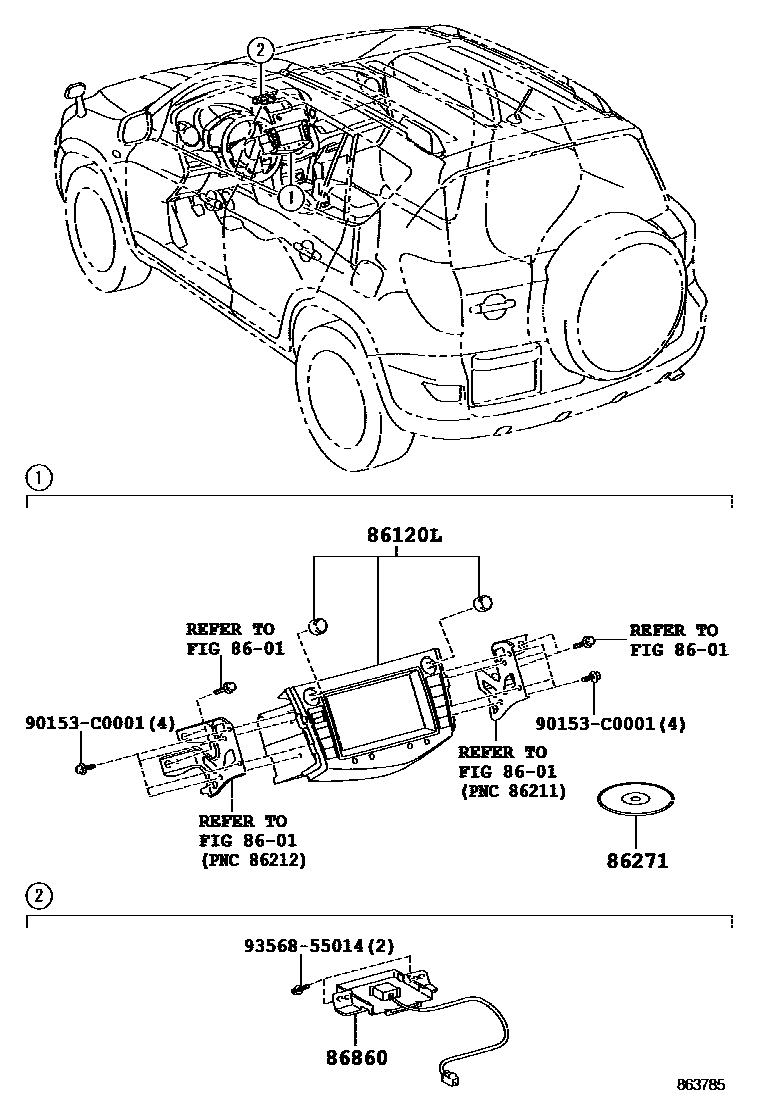

Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-0R060 |
| 86271 | CD | 86807-0W024 · 86807-0W025 · 86807-0W026 · 86807-0W027 |
| 86860 | Navigation antenna assembly | 86860-42030 |
