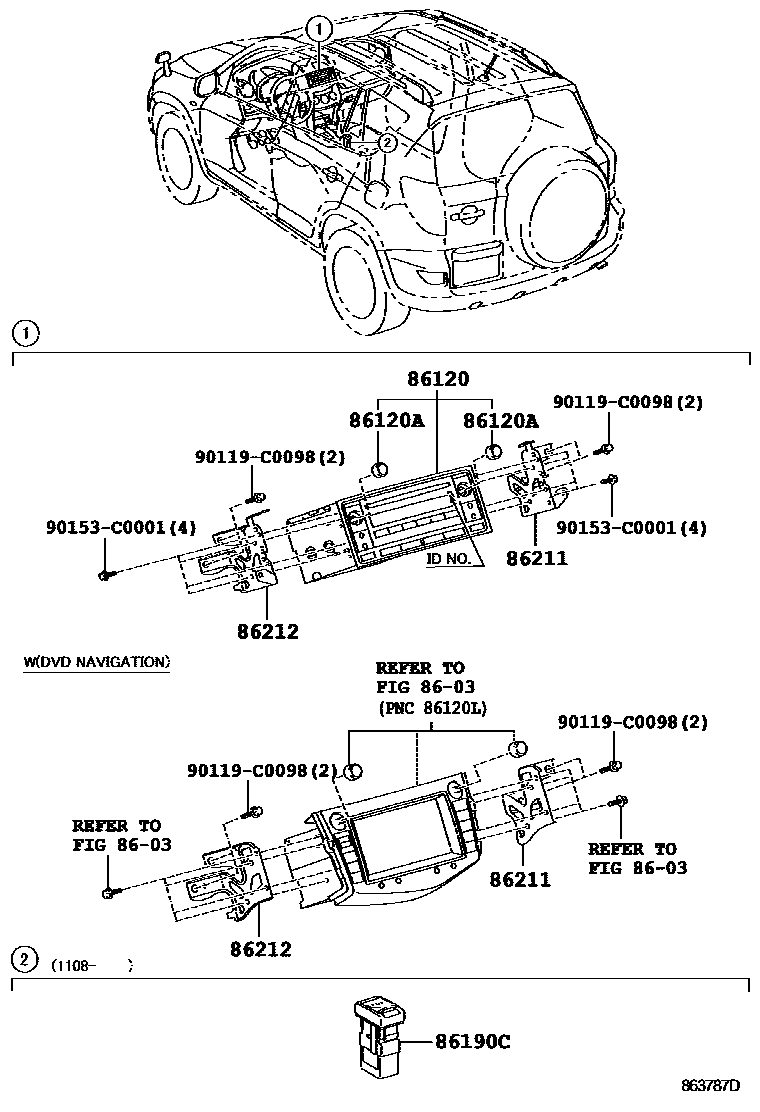

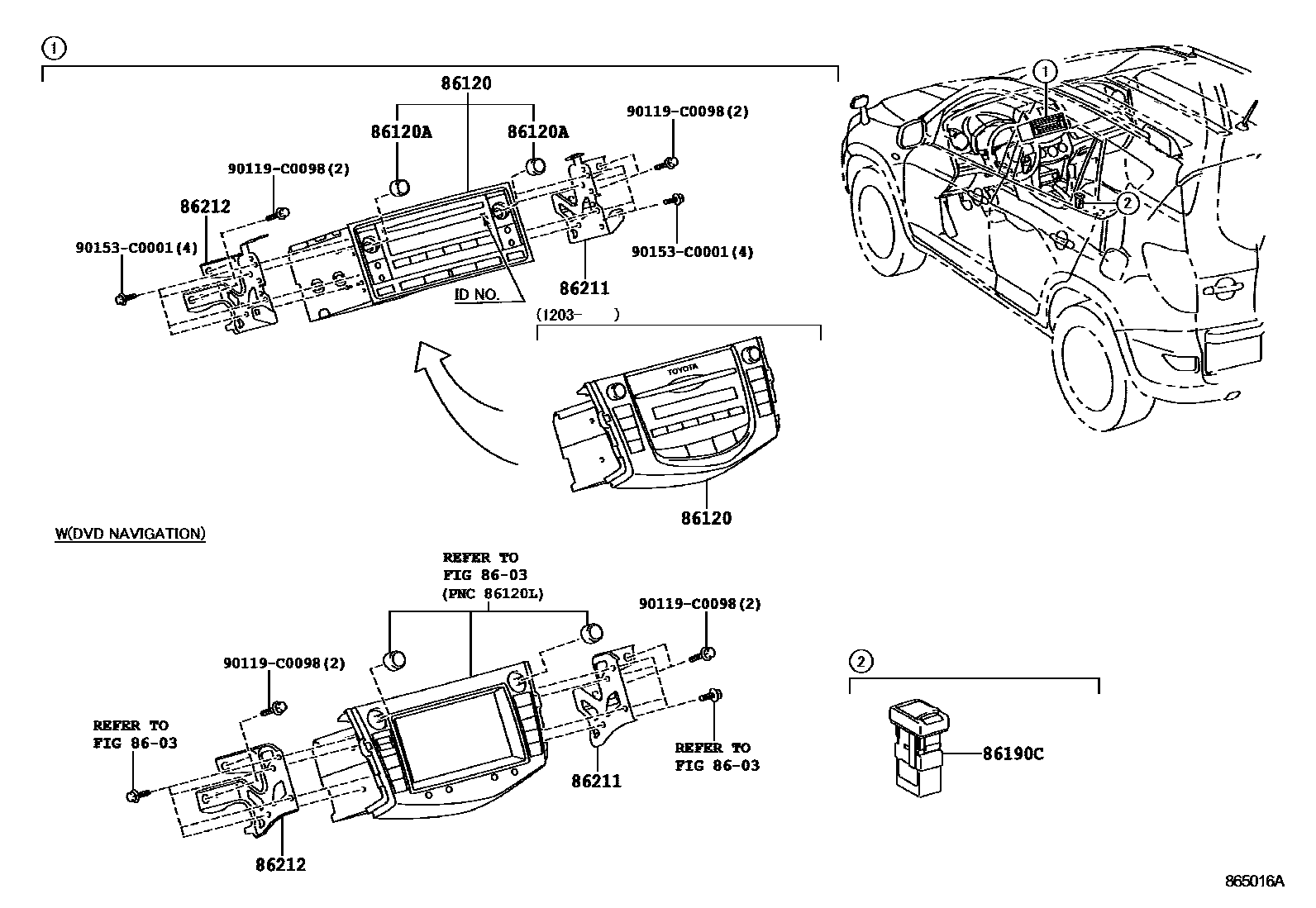

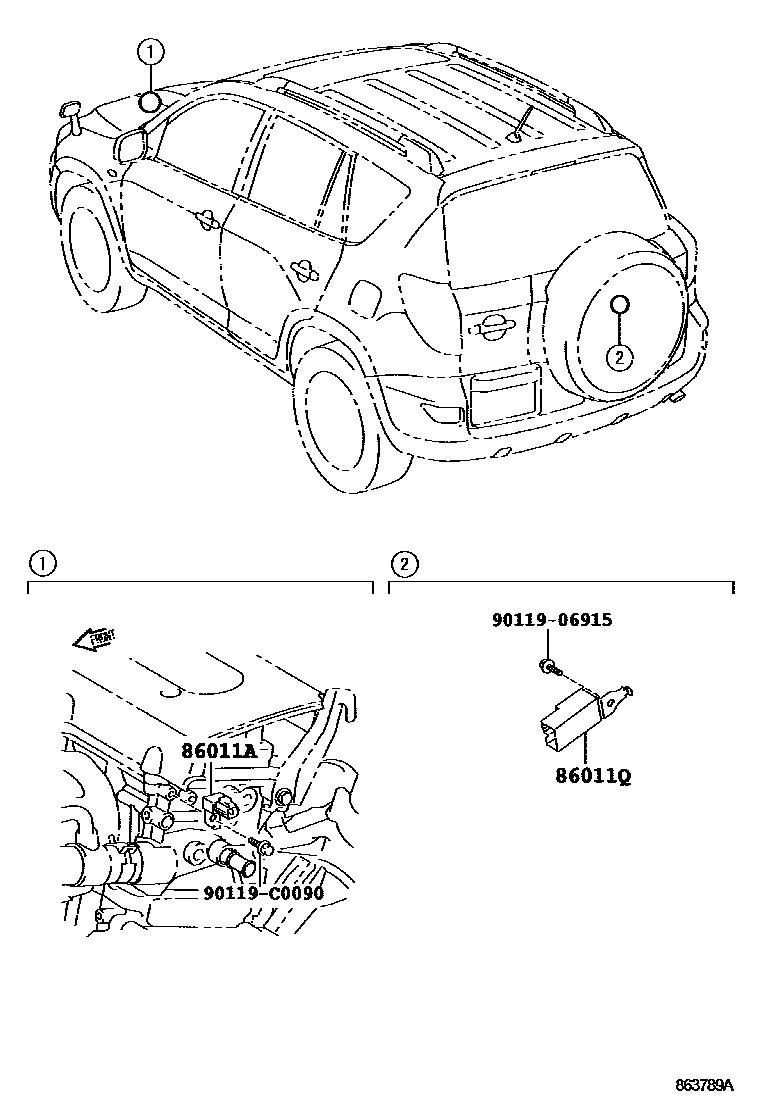

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04195 |
| 86011Q | radio settings phase modulator | 90980-04197 |
| 86120 | Radio assembly | 86120-0R020 · 86120-0R030 · 86120-0R050 · 86120-0R120 · 86120-YY230 |
| 86120A | Radio switch knob | 90011-25170 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0D050 · 86190-42010 |
| 86211 | No. 1 radio bracket | 86211-0R020 · 86211-42060 |
| 86212 | No. 2 radio bracket | 86212-0R020 · 86212-42060 |
