Toyota RAV4 后清洗器 — Figure 8504

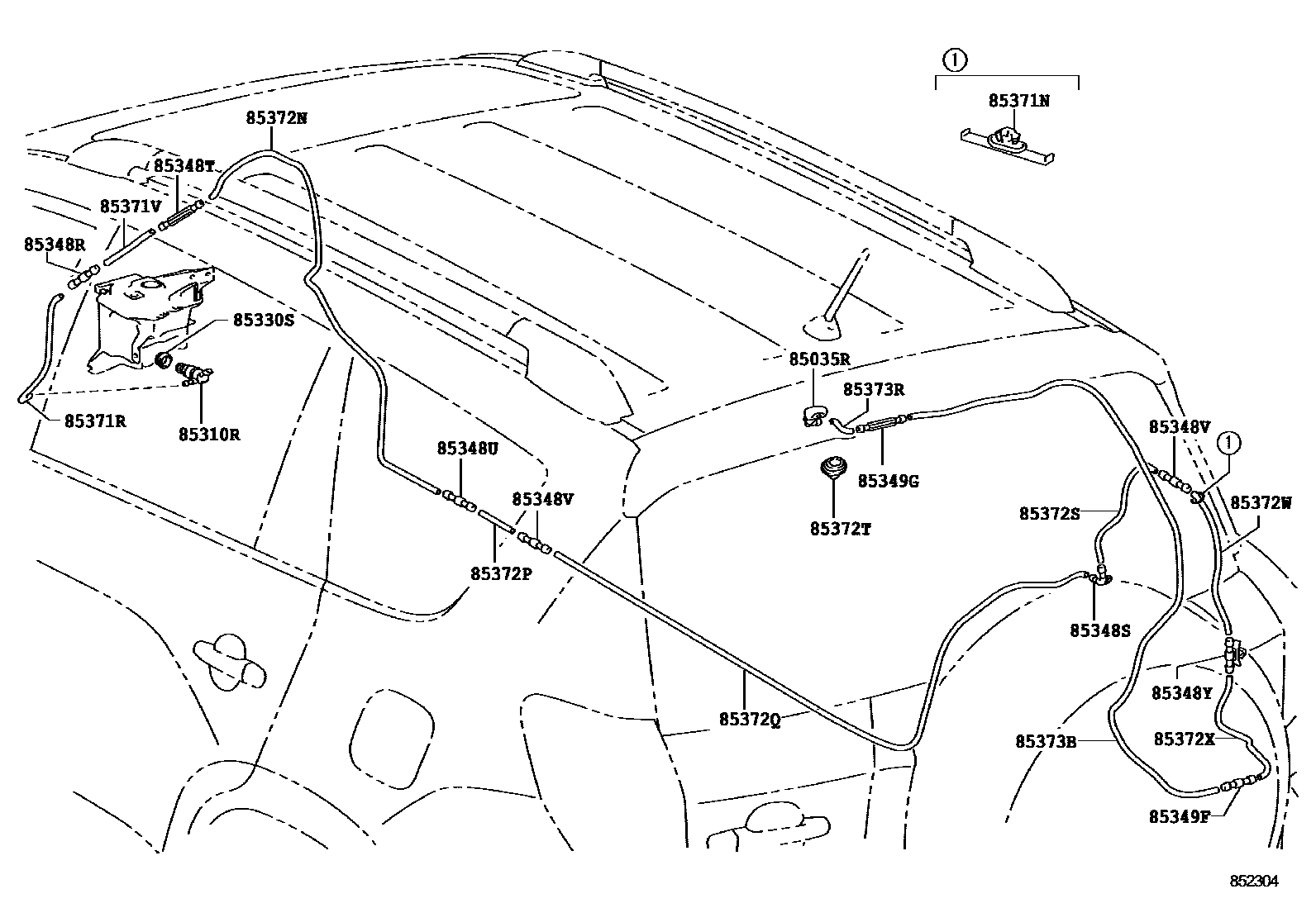

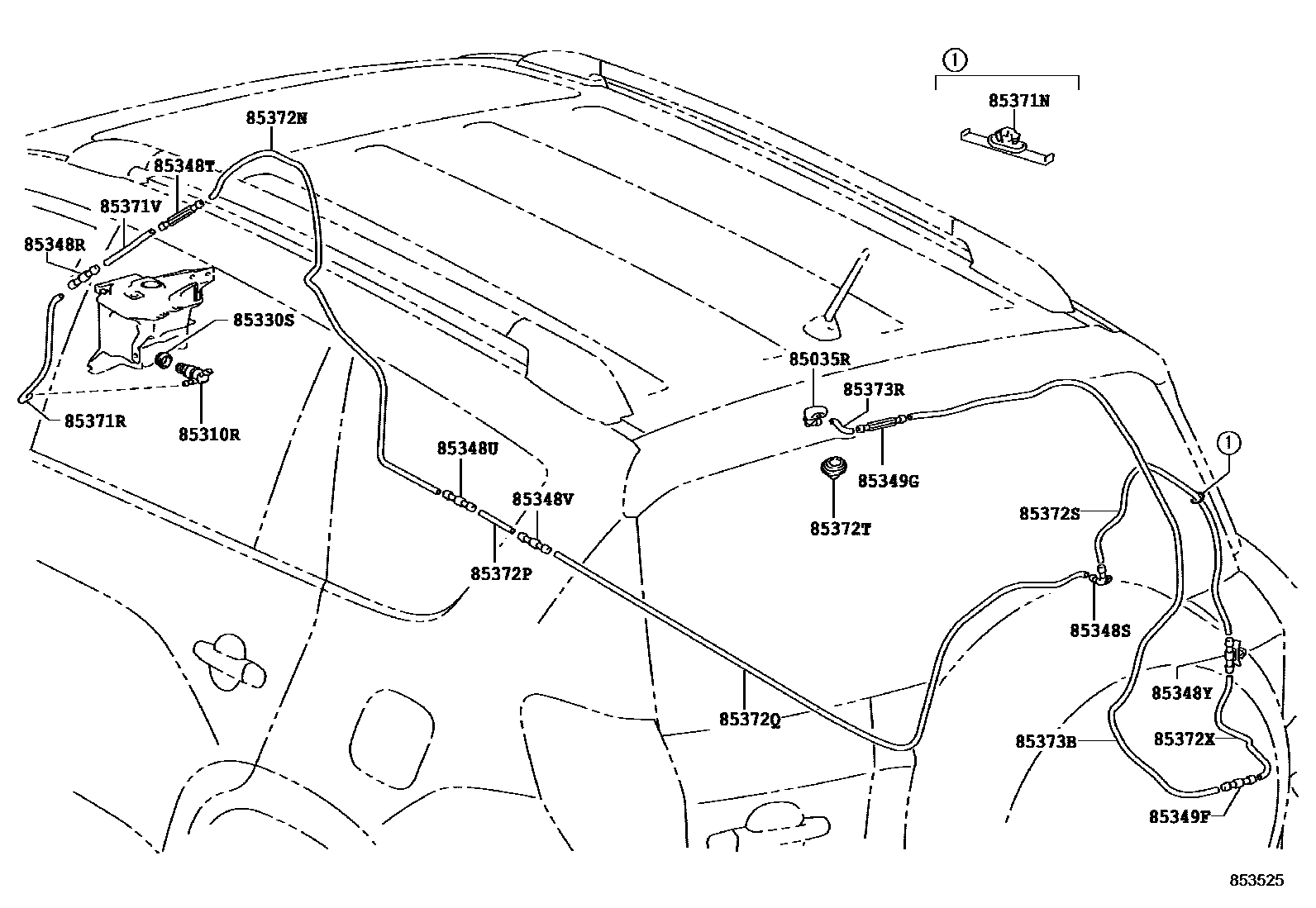

Toyota RAV4 EPC diagram 8504, 后清洗器, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-42010 |
| 85310R | Rear washer motor assembly | 85330-60160 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85375-0D030 |
| 85348S | No. 1 rear cleaner elbow joint | 85375-60290 |
| 85348T | No. 2 rear washer hose connector | 85349-0R060 |
| 85348U | No. 3 rear washer hose connector | 85375-0D030 |
| 85348V | No. 4 rear washer hose connector | 85375-0D030 |
| 85348Y | No. 5 rear washer hose connector | 85375-0R050 |
| 85349F | No. 1 rear washer hose connector | 85375-0D030 |
| 85349G | No. 2 rear washer hose connector | 85349-0R060 |
| 85371N | Rear washer hose clamp | 82711-3F290 |
| 85371R | Rear washer hose (from motor to connector) | 90068-59076 |
| 85371V | Rear washer hose (from fitting to fitting) | 90068-33074 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-59074 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-33074 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90068-59073 |
| 85372S | No. 4 rear washer hose (from connector to connector) | 90068-33061 · 90068-59104 |
| 85372T | Cleaner seal | 85372-20020 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 90068-59072 |
| 85372X | No. 6 rear washer hose (from connector to connector) | 90068-33098 |
| 85373B | No. 7 rear washer hose (from connector to connector) | 90068-59075 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33043 |
