Toyota RAV4 挡风玻璃清洗器 — Figure 8503

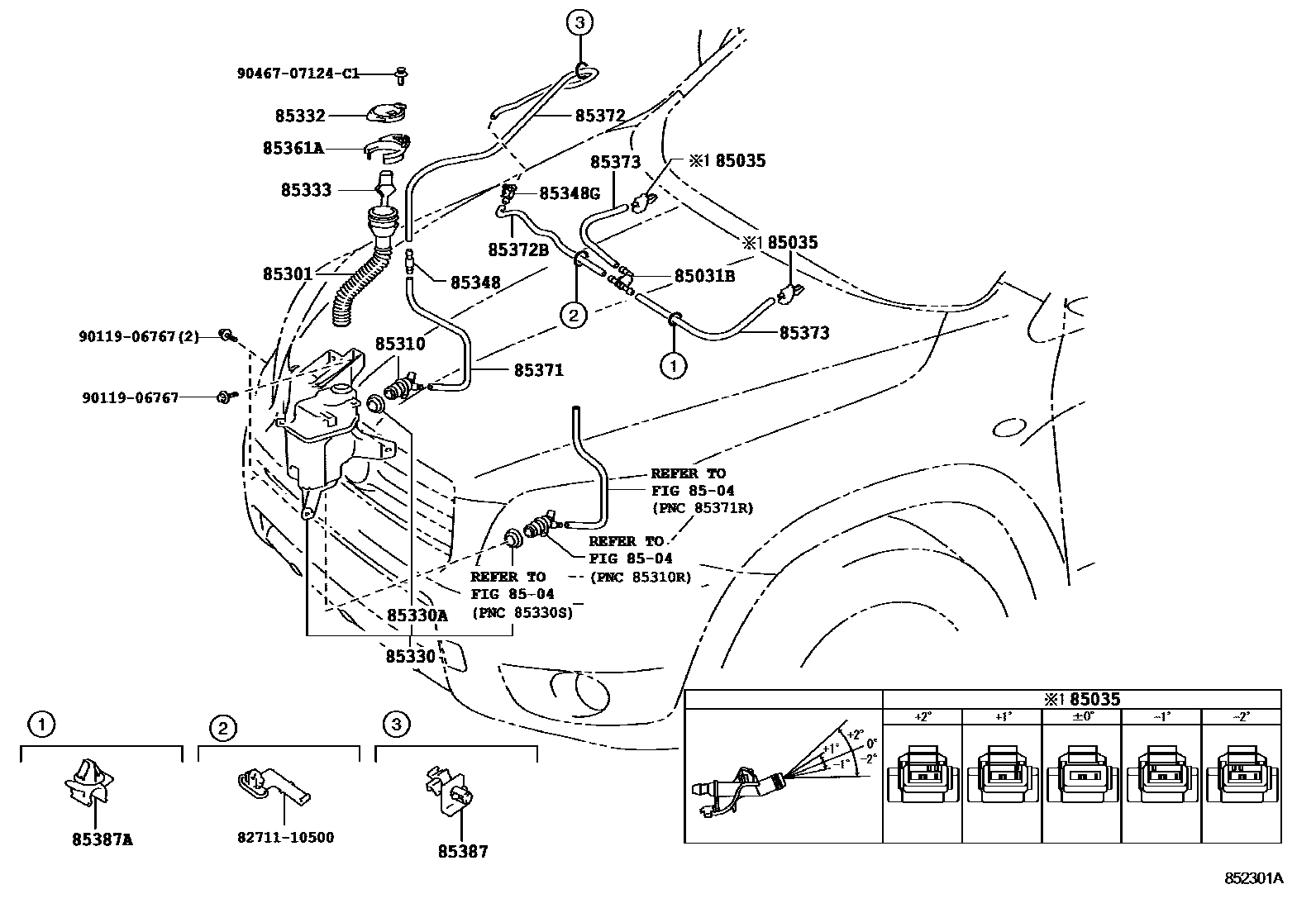

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-28020 |
| 85035 | Cleaner nozzle sub-assembly | 85381-30170 · 85381-30180 · 85381-30190 · 85381-30200 · 85381-30210 |
| 85301 | Cleaner water inlet sub-assembly | 85319-0R020 |
| 85310 | Windshield washer motor and pump assembly | 85330-71010 |
| 85330 | Windshield washer fluid tank assembly | 85315-0R020 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-0P010 |
| 85333 | Windshield washer fluid tank filter | 85312-0R010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D030 |
| 85348G | Windshield washer hose connector No. 2 | 85375-0R050 |
| 85361A | Windshield washer bracket No. 1 | 85337-0R020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33100 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33097 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33099 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33070 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-32020 |
| 85387A | Cleaner clip No. 2 | 90469-07011 |
