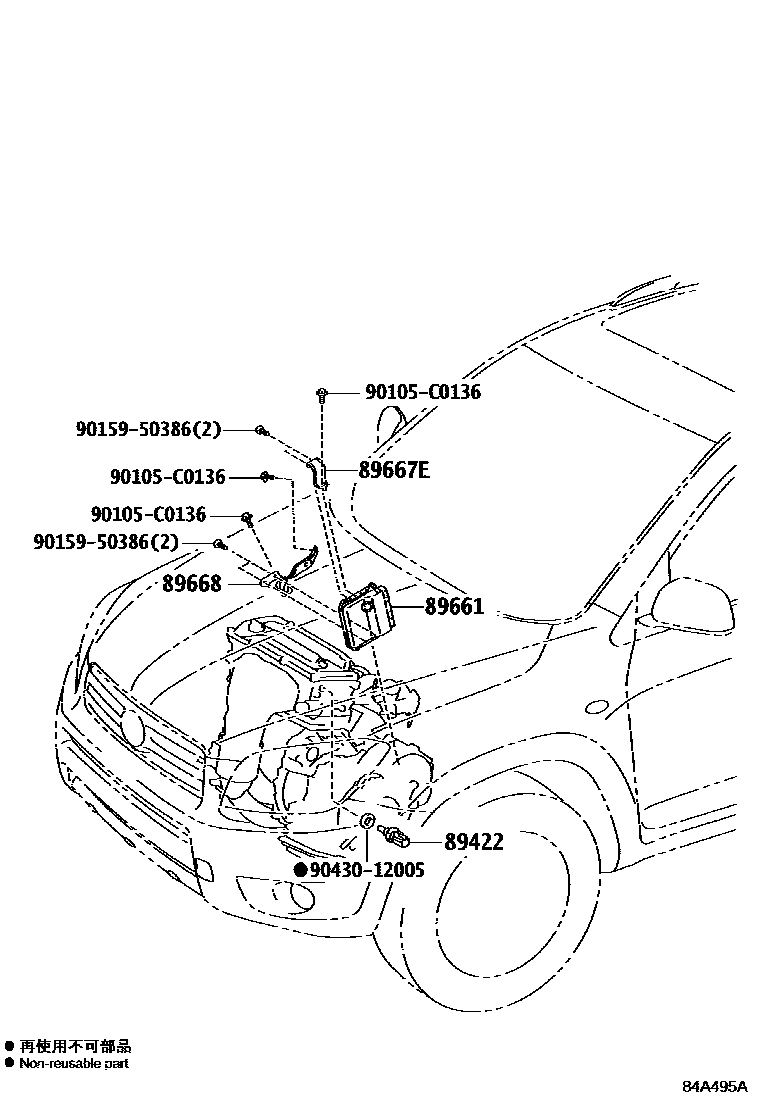

Toyota RAV4 电子燃油喷射系统 — Figure 8404
Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 |
| 89661 | Engine control ECU | 89661-0R010 · 89661-0R020 · 89661-0R030 · 89661-0R040 · 89661-0R050 · 89661-0R060 · 89661-0R170 · 89661-0R180 · 89661-0R190 · 89661-0R200 |
| 89667E | No. 1 engine control ECU bracket | 89667-42050 |
| 89668 | No. 2 engine control ECU bracket | 89668-42050 |
