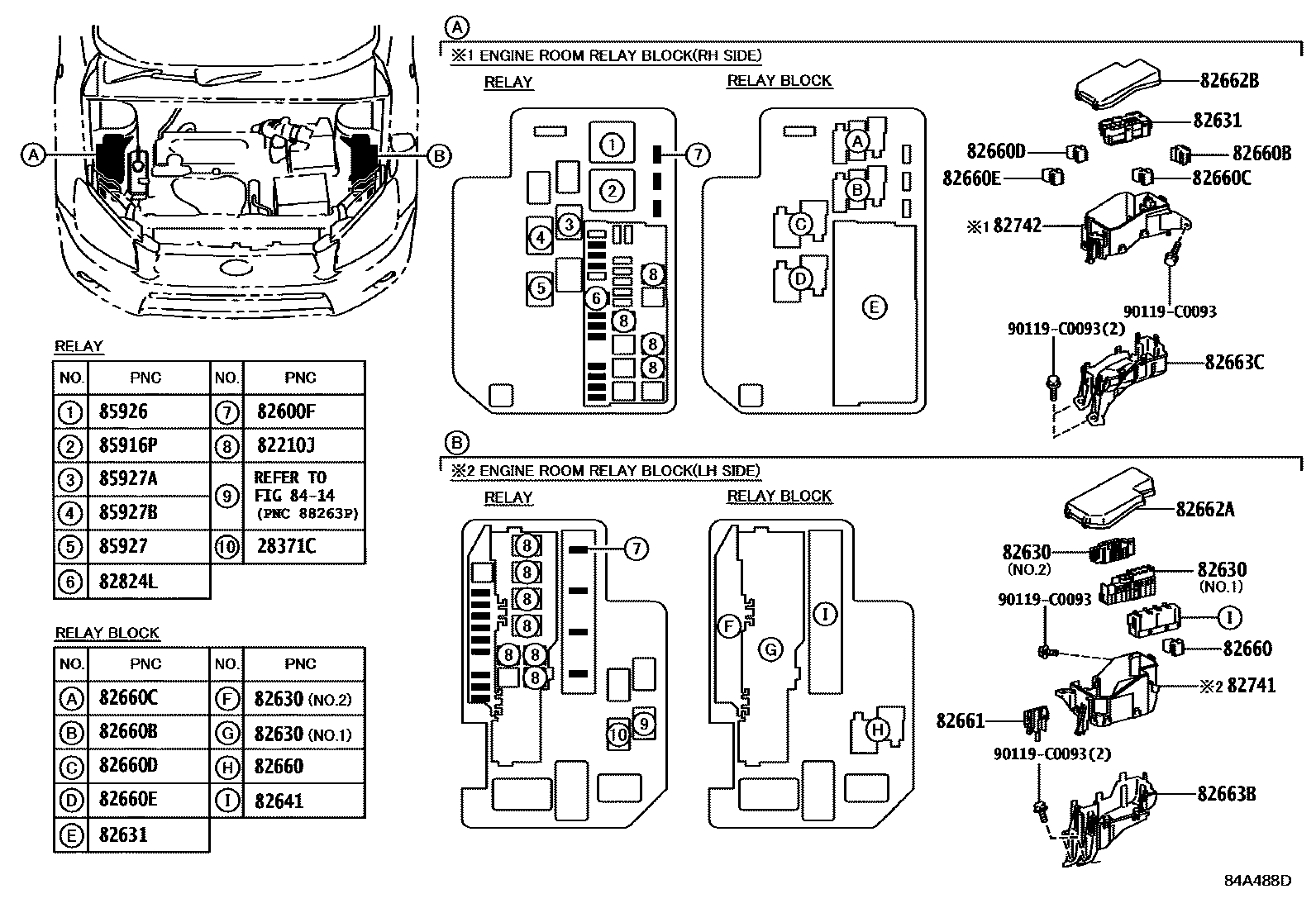

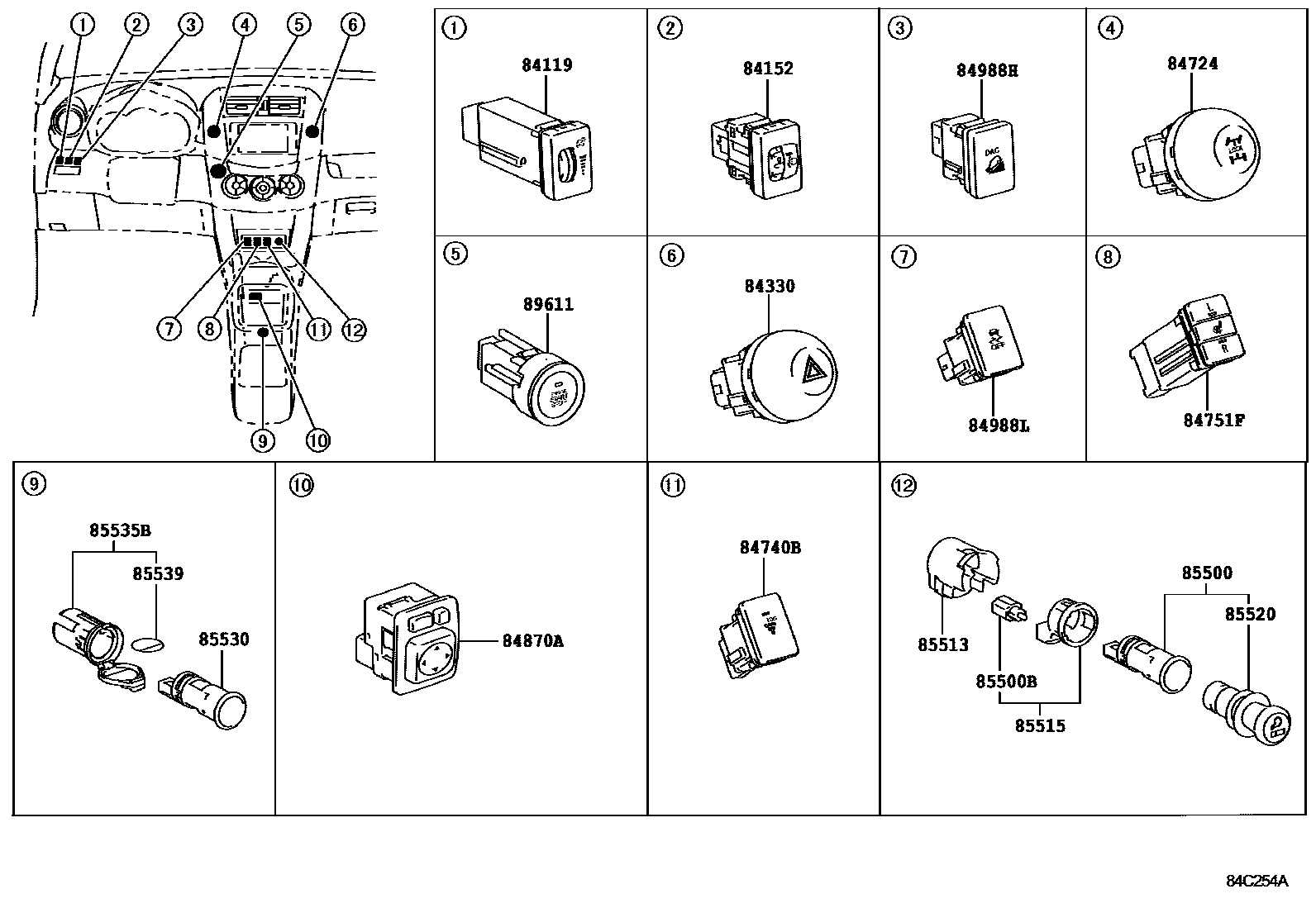

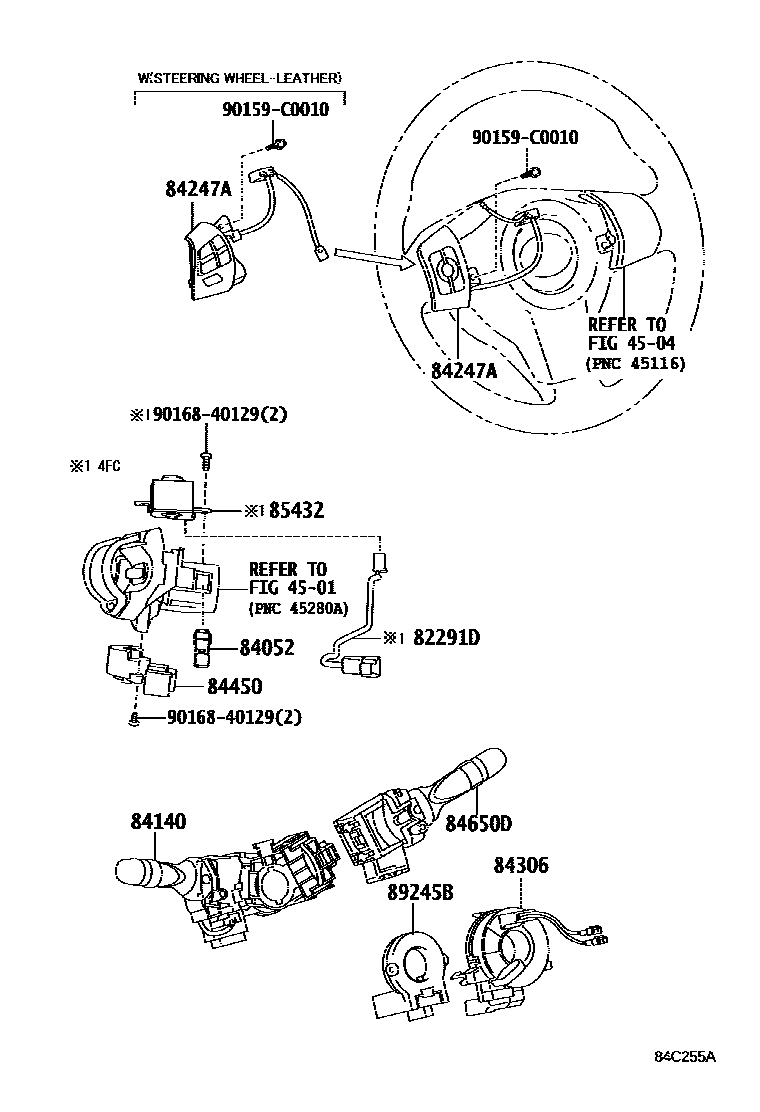

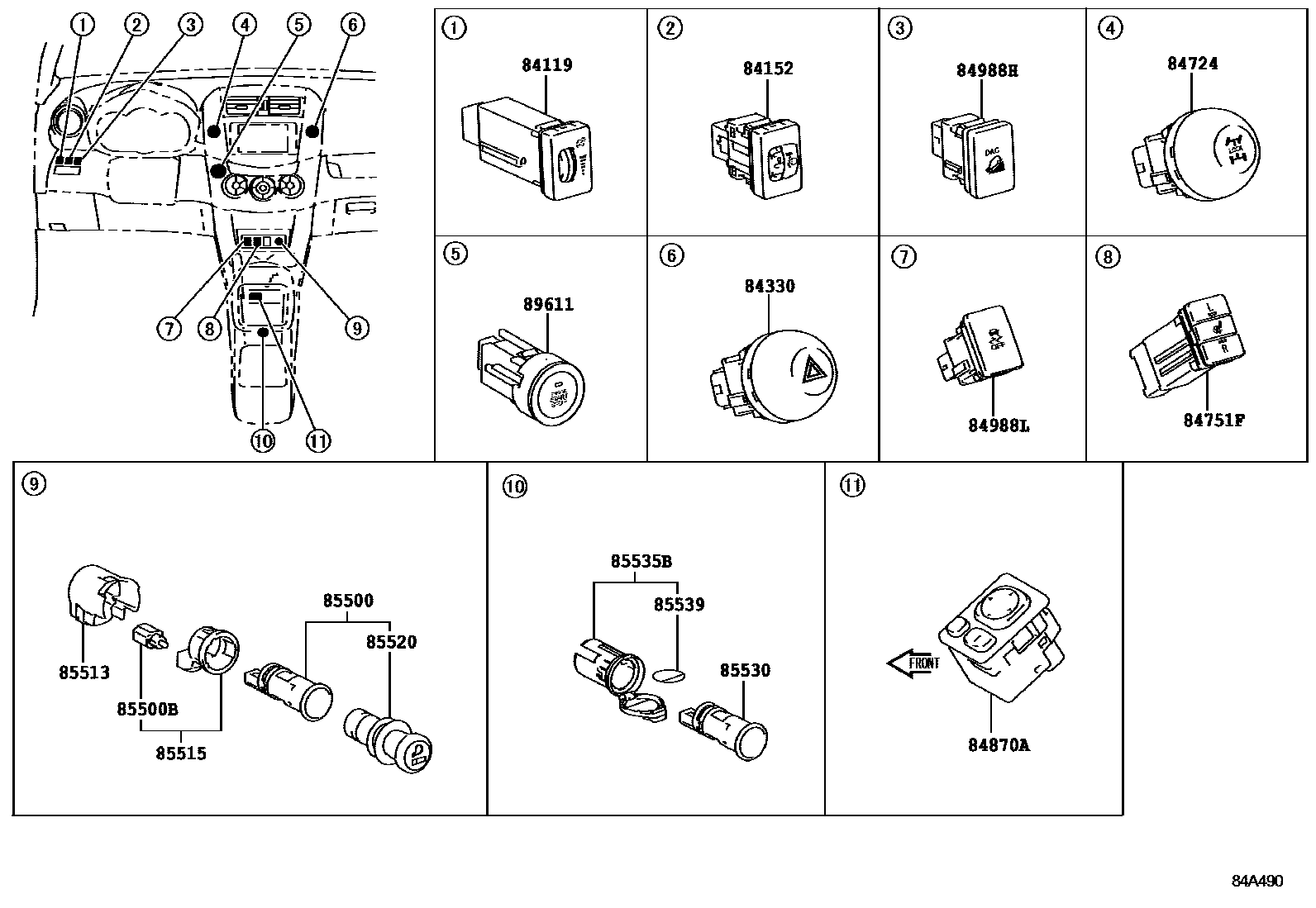

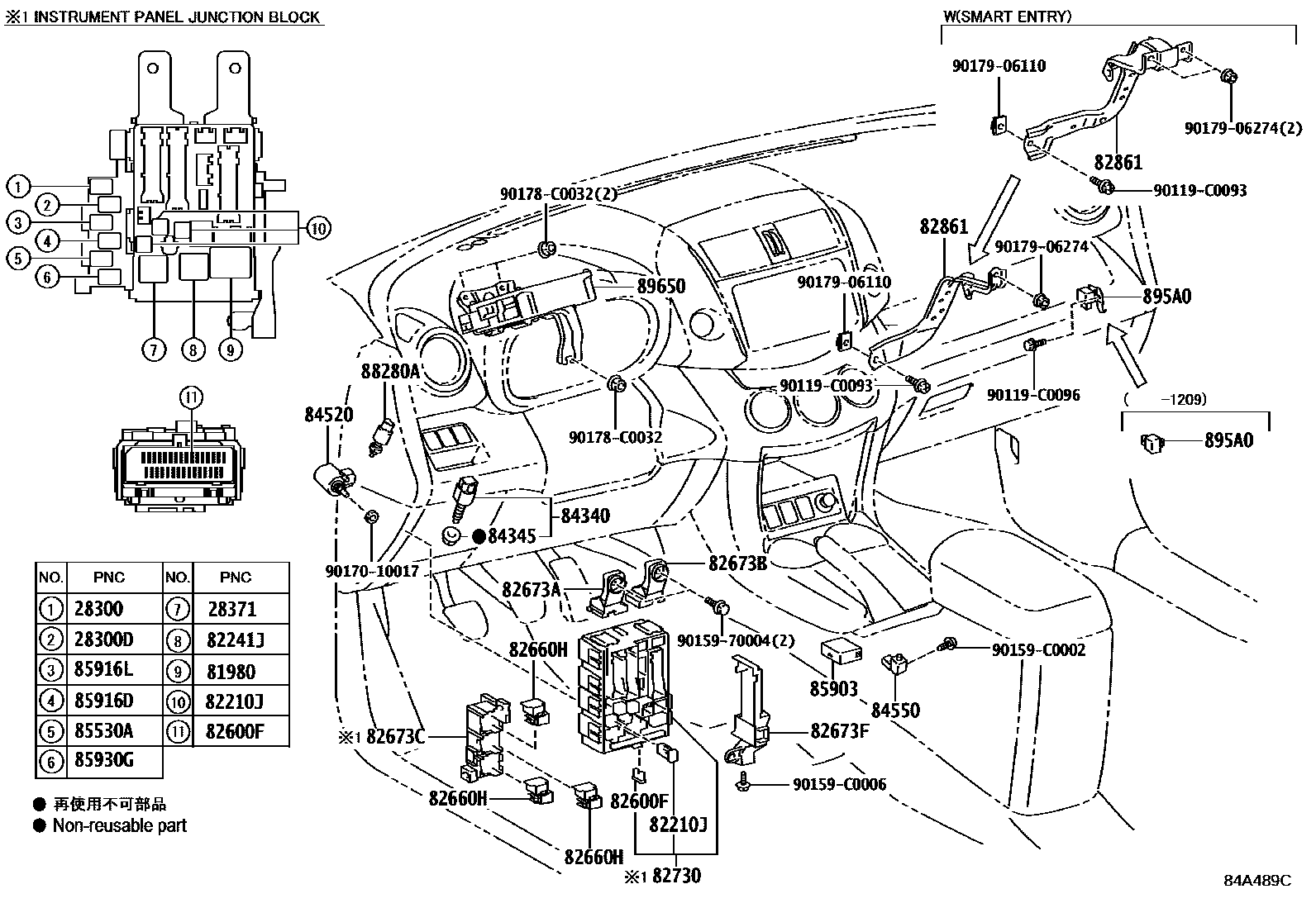

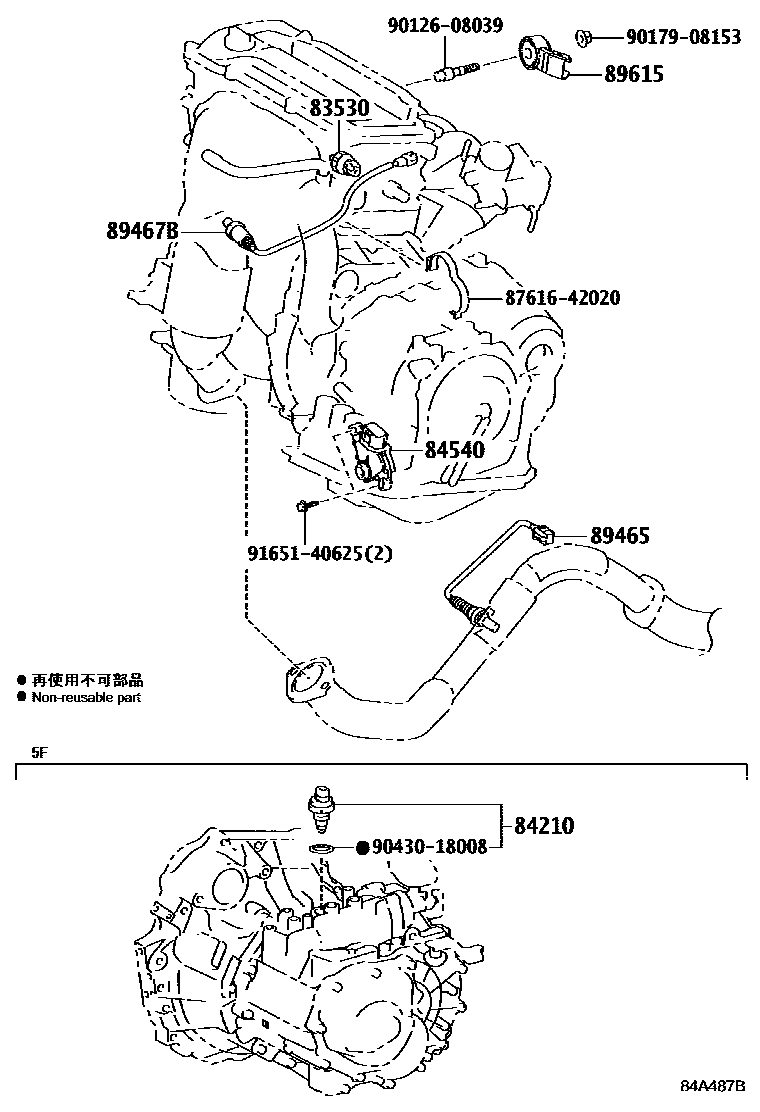

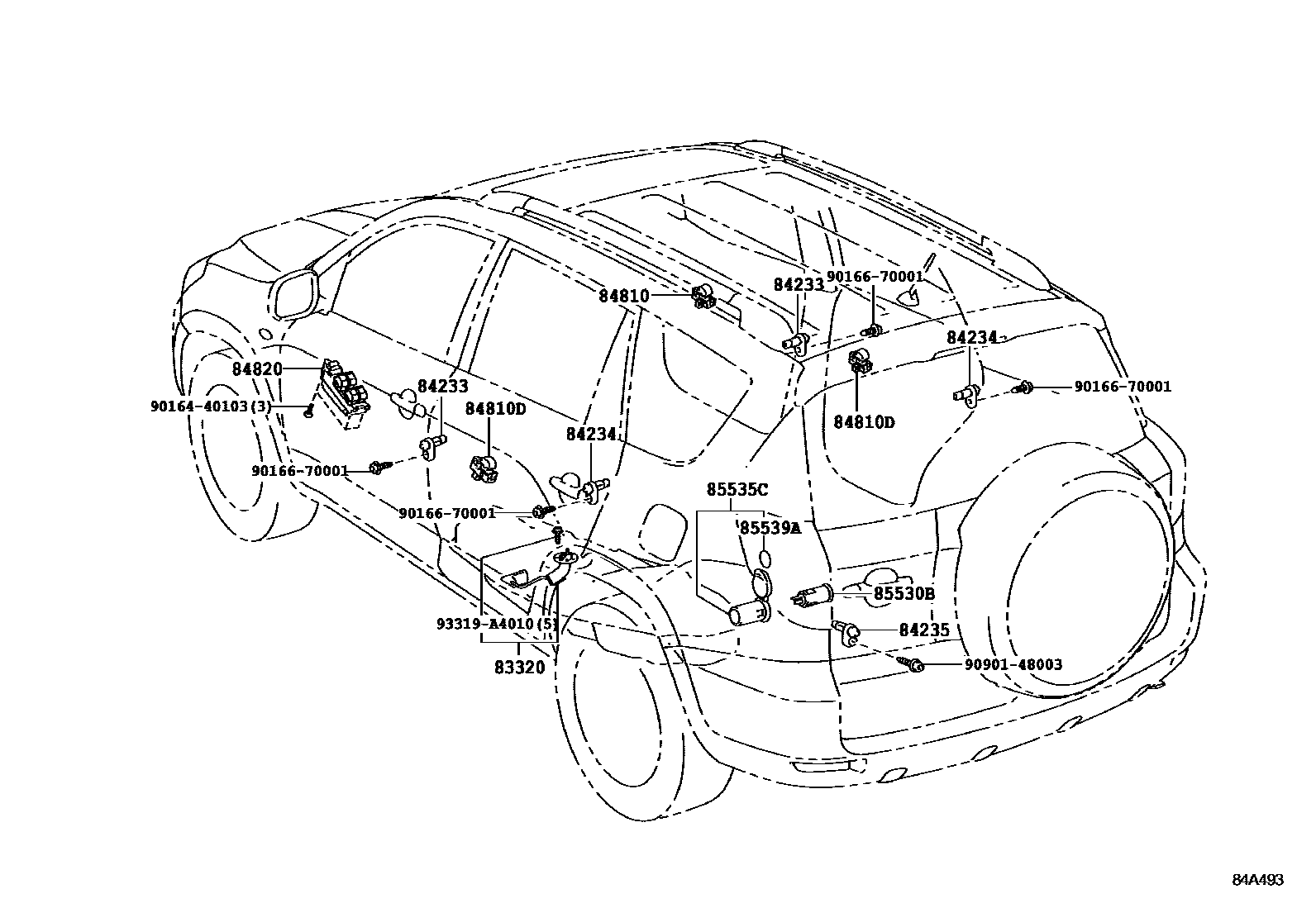

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 9 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-T2005 |
| 28371 | No. 1 ignition relay | 90987-C2001 |
| 28371C | No. 2 ignition relay | 90987-T2005 |
| 81980 | Turn signal flasher relay assembly | 81980-0D030 |
| 82210J | fuse | 90982-08202 · 90982-08203 · 90982-08274 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-02010 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82630 | Fuse holder assembly | 82631-42010 · 82631-42020 |
| 82631 | fuse holder | 82631-42030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660 | Engine room relay box assembly | 82660-42030 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-26270 |
| 82660D | Relay assembly | 82660-42030 |
| 82660E | Relay assembly | 82660-52010 |
| 82660H | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-42030 |
| 82662A | No. 1 relay box upper cover | 82662-42310 |
| 82662B | No. 2 relay box upper cover | 82662-42320 |
| 82663B | No. 3 relay box lower cover | 82663-42080 |
| 82663C | No. 4 relay box lower cover | 82663-42090 |
| 82673A | Junction box bracket | 82673-42090 |
| 82673B | Junction box bracket | 82673-42100 |
| 82673C | Junction box bracket | 82673-42110 |
| 82673F | Junction box bracket | 82673-42120 |
| 82730 | Instrument panel junction box assembly | 82730-0R050 · 82730-0R051 · 82730-0R060 · 82730-0R061 · 82730-0R070 · 82730-0R071 · 82730-0R072 · 82730-0R080 · 82730-0R081 · 82730-0R082 |
| 82741 | Engine room relay box | 82741-42010 |
| 82742 | Engine room No. 2 relay box | 82742-42030 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-42010 · 82861-42020 |
| 83320 | Fuel gauge sensor assembly | 83320-09150 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84119 | Light control rheostat | 84119-0R010 |
| 84140 | Headlight dimmer switch assembly | 84140-0P011 · 84140-42101 |
| 84152 | Headlight beam height adjustment switch | 84152-0R010 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-02130 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02130 |
| 84235 | Door control light switch assembly (for back door) | 84231-02130 |
| 84247A | Steering wheel decorative cover left switch | 84247-0R020 |
| 84306 | Spiral cable sub-assembly | 84306-06140 |
| 84330 | Hazard warning signal switch assembly | 84332-0R020 |
| 84340 | brake light switch assembly | 84340-09130 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-42010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-0R010 · 84652-0R020 |
| 84724 | four wheel drive control switch | 84724-0R020 |
| 84740B | Air purifier switch assembly | 84740-0R010 |
| 84751F | Seat heater switch | 84751-0R010 |
| 84810 | Electric window lift switch assembly | 84810-0D080 |
| 84810D | Rear electric window lift switch assembly | 84810-0D080 |
| 84820 | Electric window lift main switch assembly | 84820-02190 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02040 · 84870-0D050 |
| 84922C | Front left electric seat switch | 84922-06120 |
| 84988H | Downhill assist control switch | 84988-0R030 |
| 84988L | VSC off switch | 84988-0R040 |
| 85432 | Key interlock solenoid valve | 85432-02010 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85500B | Cigarette lighter bulb | 90010-01030 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-0N010 |
| 85530A | power outlet relay | 90987-T2005 |
| 85530B | No. 1 rear power socket assembly | 85530-0N010 |
| 85539 | Power socket attention labels | 85539-48030 |
| 85539A | Note label on rear power outlet | 85539-48030 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06030 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85926 | Headlight dimmer relay | 90987-T4002 |
| 85927 | cooling fan relay | 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-T4001 |
| 85927B | Cooling fan relay No. 3 | 90987-T2005 |
| 85930G | ACC relay | 90987-T2005 |
| 88280A | Clutch switch assembly | 88280-14030 · 88280-42010 |
| 89245B | steering sensor | 89245-0R010 |
| 89465 | oxygen sensor | 89465-42170 |
| 89467B | air fuel ratio sensor | 89467-0R040 · 89467-58030 |
| 895A0 | Brake light control relay assembly | 895A0-42020 · 895A0-46010 · 895A0-46020 |
| 89611 | One-button start switch | 89611-02020 · 89611-02021 · 89611-02022 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42100 · 89650-42101 |
