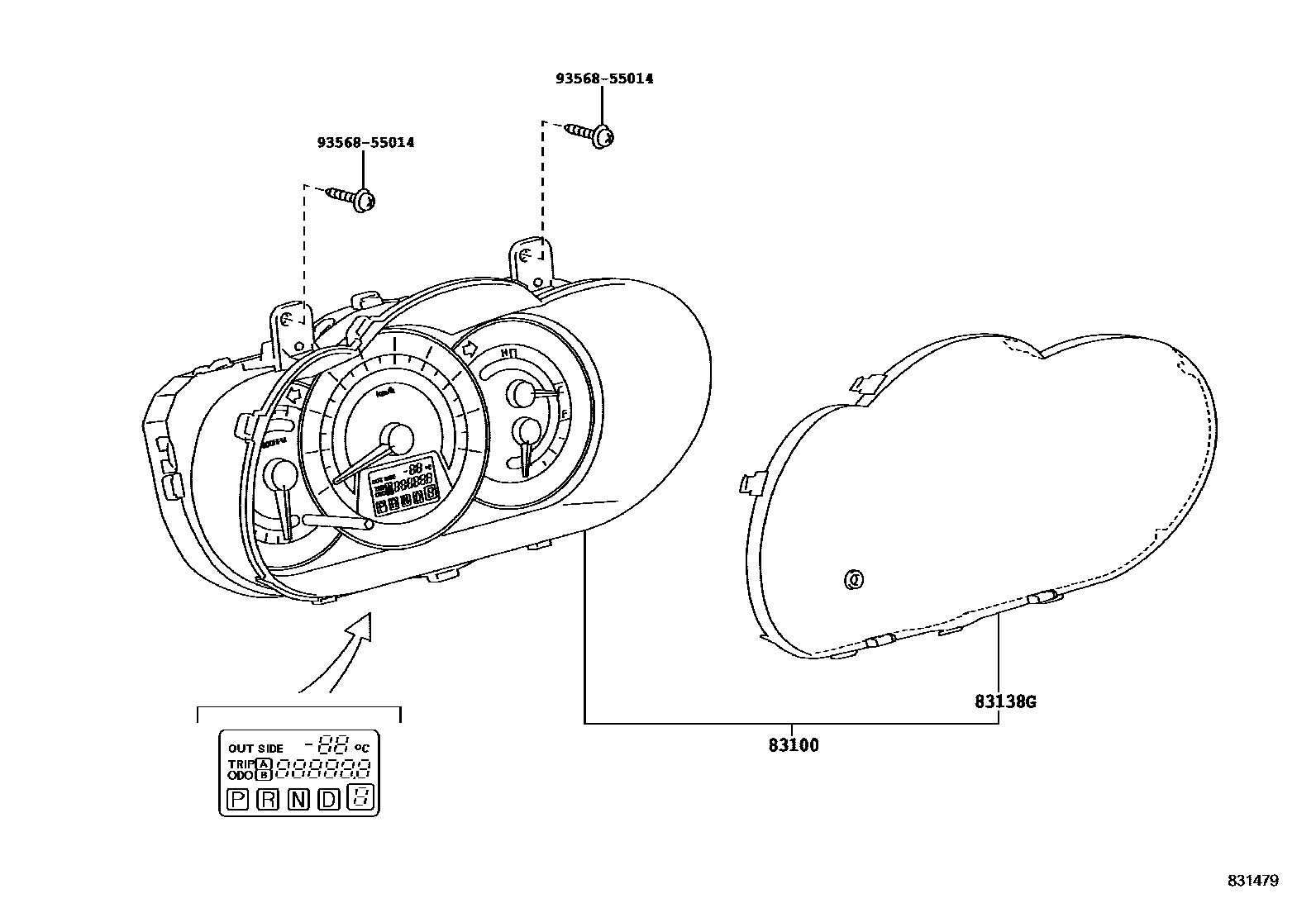

Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0R060 · 83800-0R061 · 83800-0R070 · 83800-0R071 · 83800-0R370 · 83800-0R371 · 83800-0R380 · 83800-0R381 |
| 83138G | Instrument cluster glass | 83852-0R060 |
