Toyota RAV4 线束和卡夹 — Figure 8202
Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 11 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

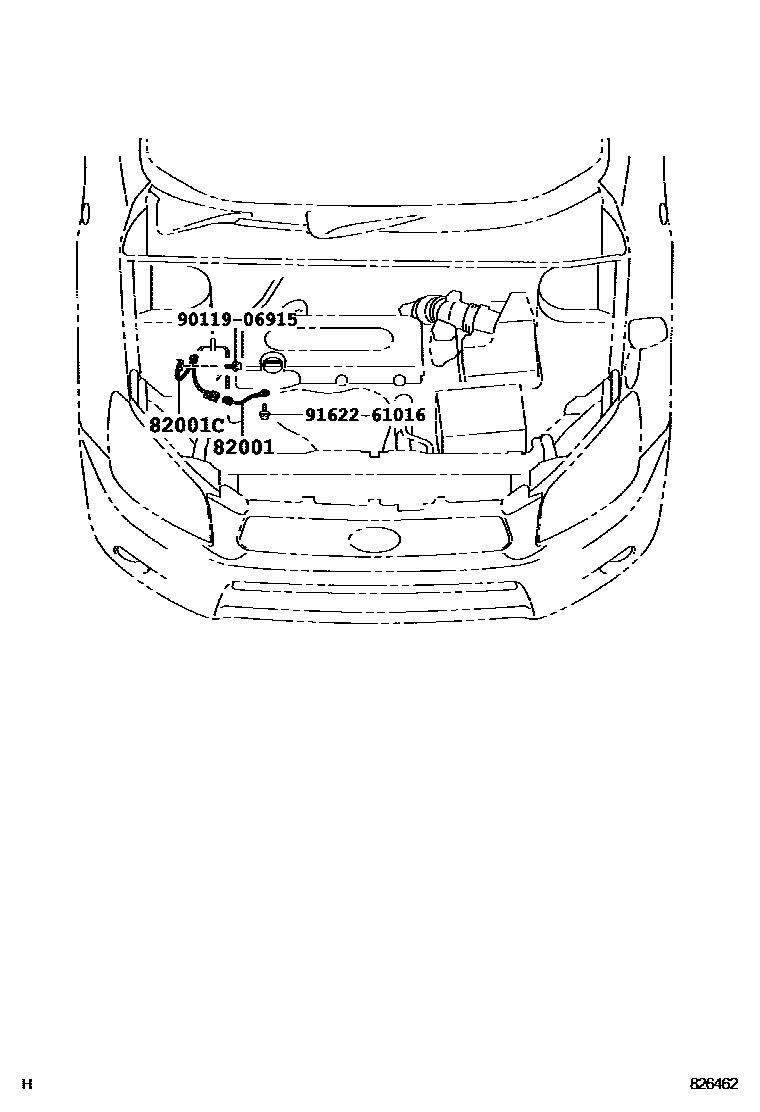

| 82001 | Connection cable No. 1 | 90980-C7004 |
| 82001C | Connection cable No. 2 | 90980-C7003 |

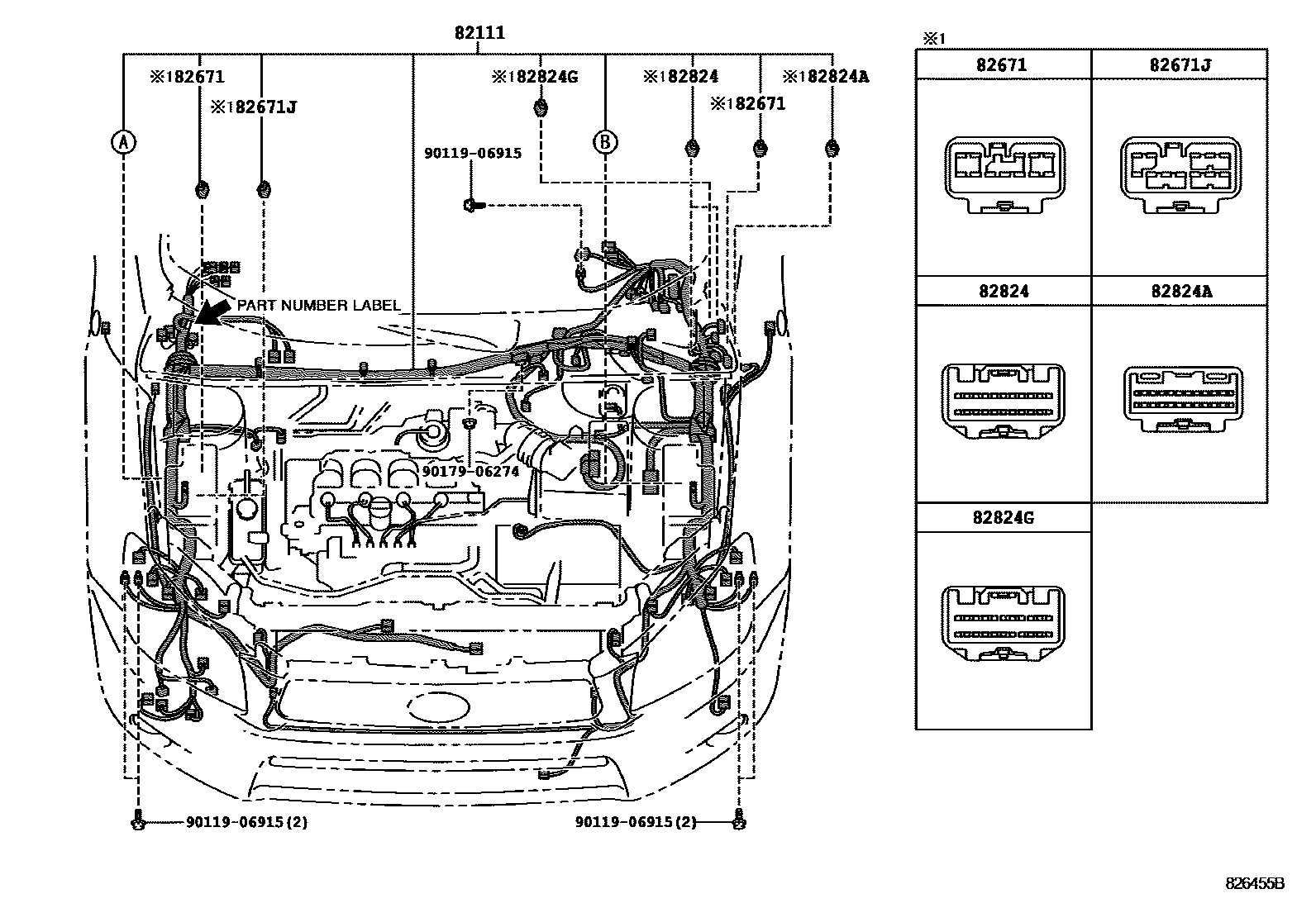

| 82111 | Engine room main wiring harness | 82111-0R050 · 82111-0R060 · 82111-0R110 · 82111-0R120 · 82111-0R130 · 82111-0R250 |

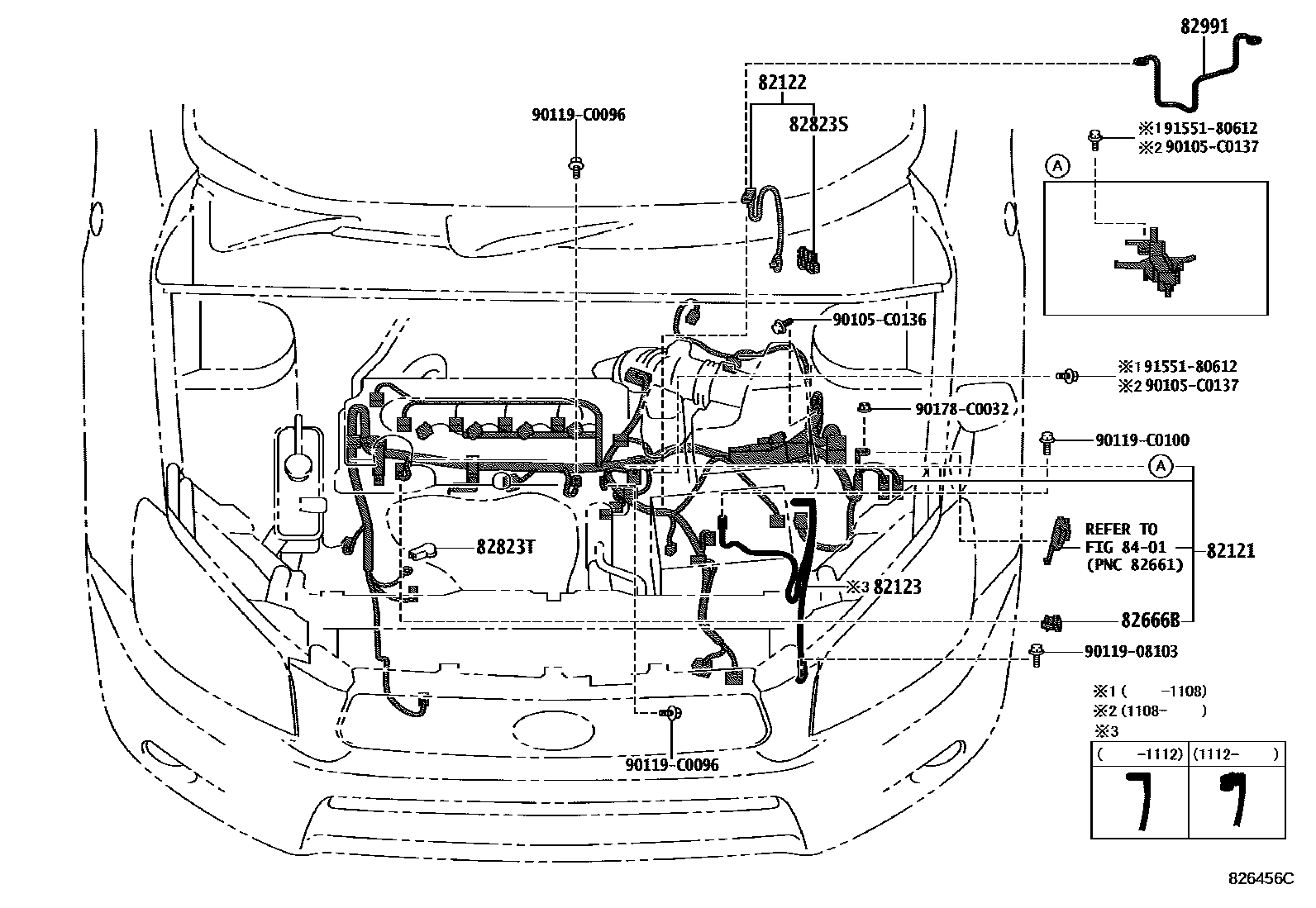

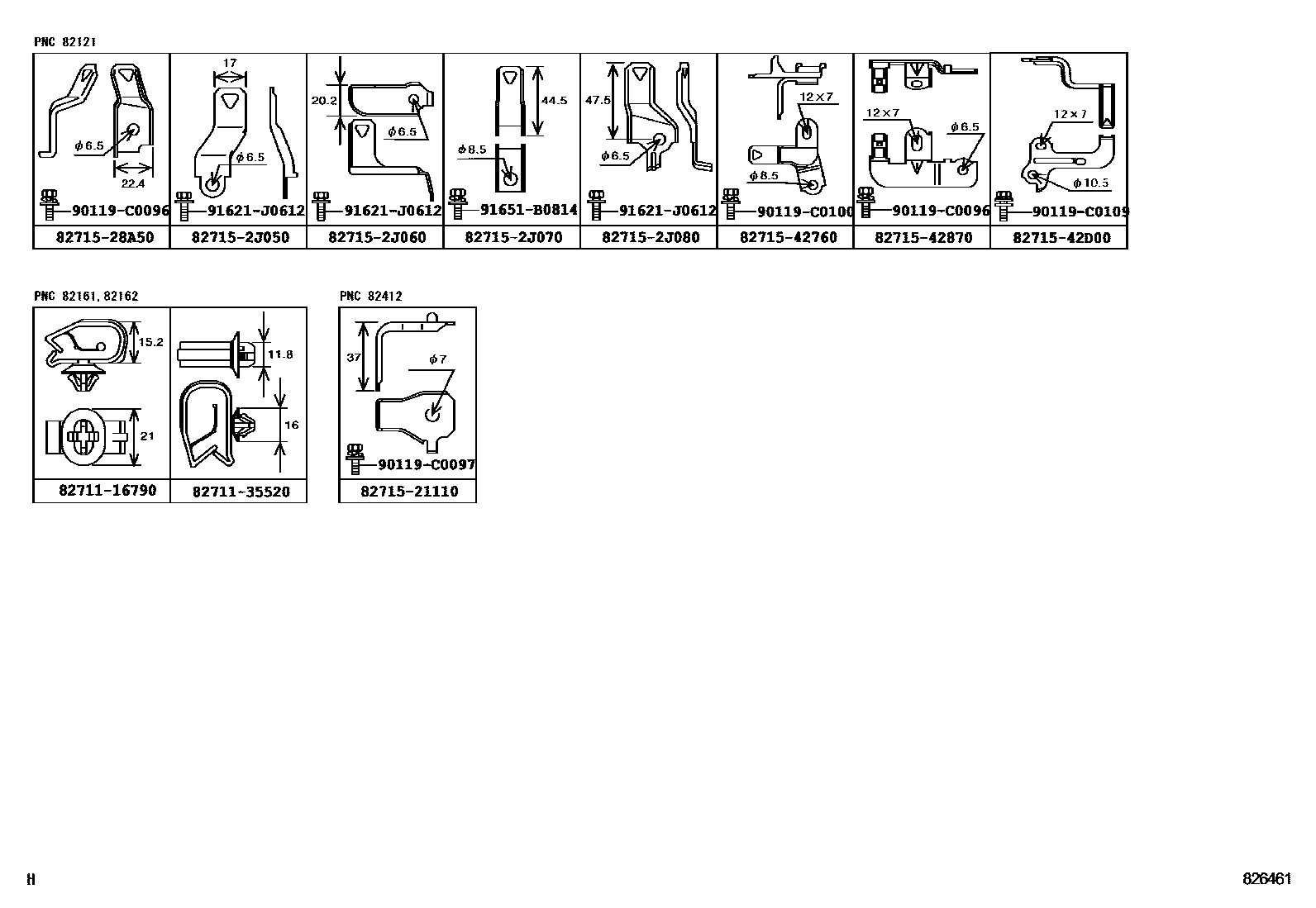

| 82121 | Engine wiring harness | 82121-0R060 · 82121-0R070 |
| 82122 | Engine No. 2 wiring harness | 82122-0R030 |
| 82123 | Engine No. 3 wiring harness | 82123-0R030 · 82123-0R031 · 82123-0R040 · 82123-0R041 |

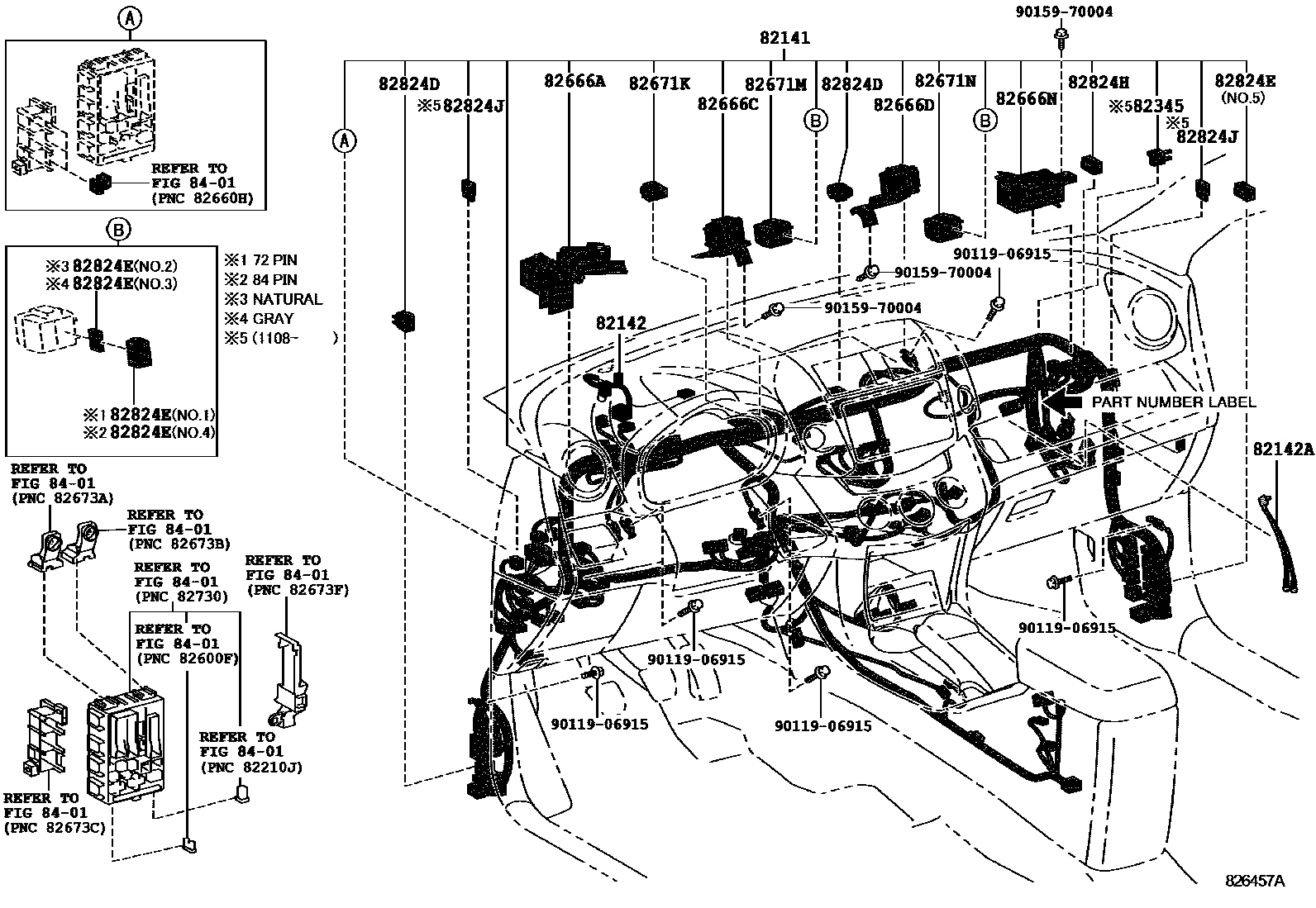

| 82141 | Dashboard wiring harness | 82141-0R340 · 82141-0R350 · 82141-0R360 · 82141-0R370 · 82141-0R380 · 82141-0R390 · 82141-0R400 · 82141-0R410 · 82141-0R630 · 82141-0R640 · 82141-0R650 · 82141-0R660 · 82141-0R670 · 82141-0R671 · 82141-0R680 · 82141-0R681 · 82141-0R860 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0R020 · 82142-0R040 · 82142-0R050 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0R020 |

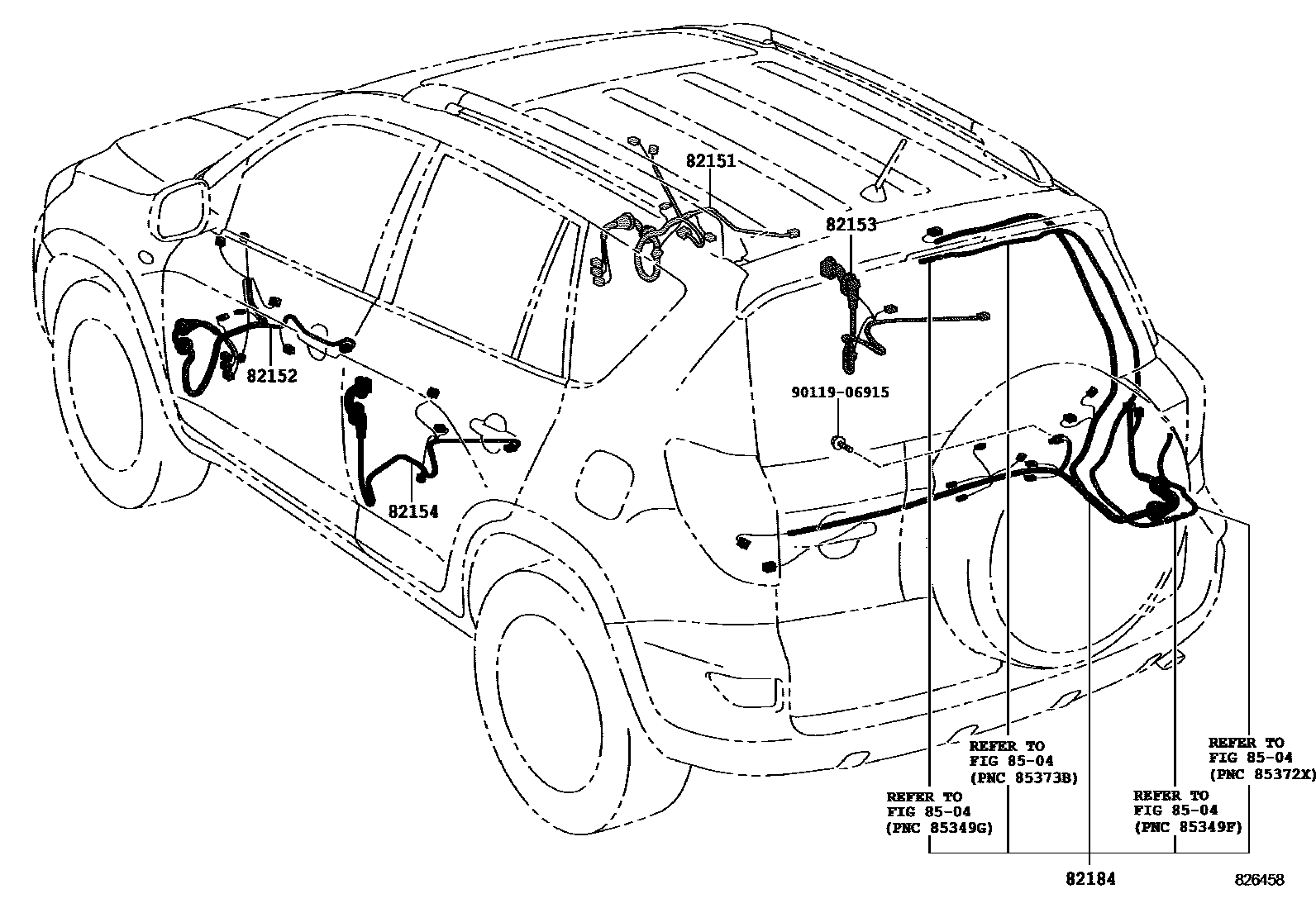

| 82151 | Right front door wiring harness | 82151-0R050 · 82151-0R060 · 82151-0R080 · 82151-0R090 · 82151-0R160 |
| 82152 | Left front door wiring harness | 82152-0R050 · 82152-0R060 · 82152-0R080 · 82152-0R090 · 82152-0R180 |
| 82153 | Rear door wiring harness No. 1 | 82153-0R020 |
| 82154 | Rear door wiring harness No. 2 | 82153-0R020 |

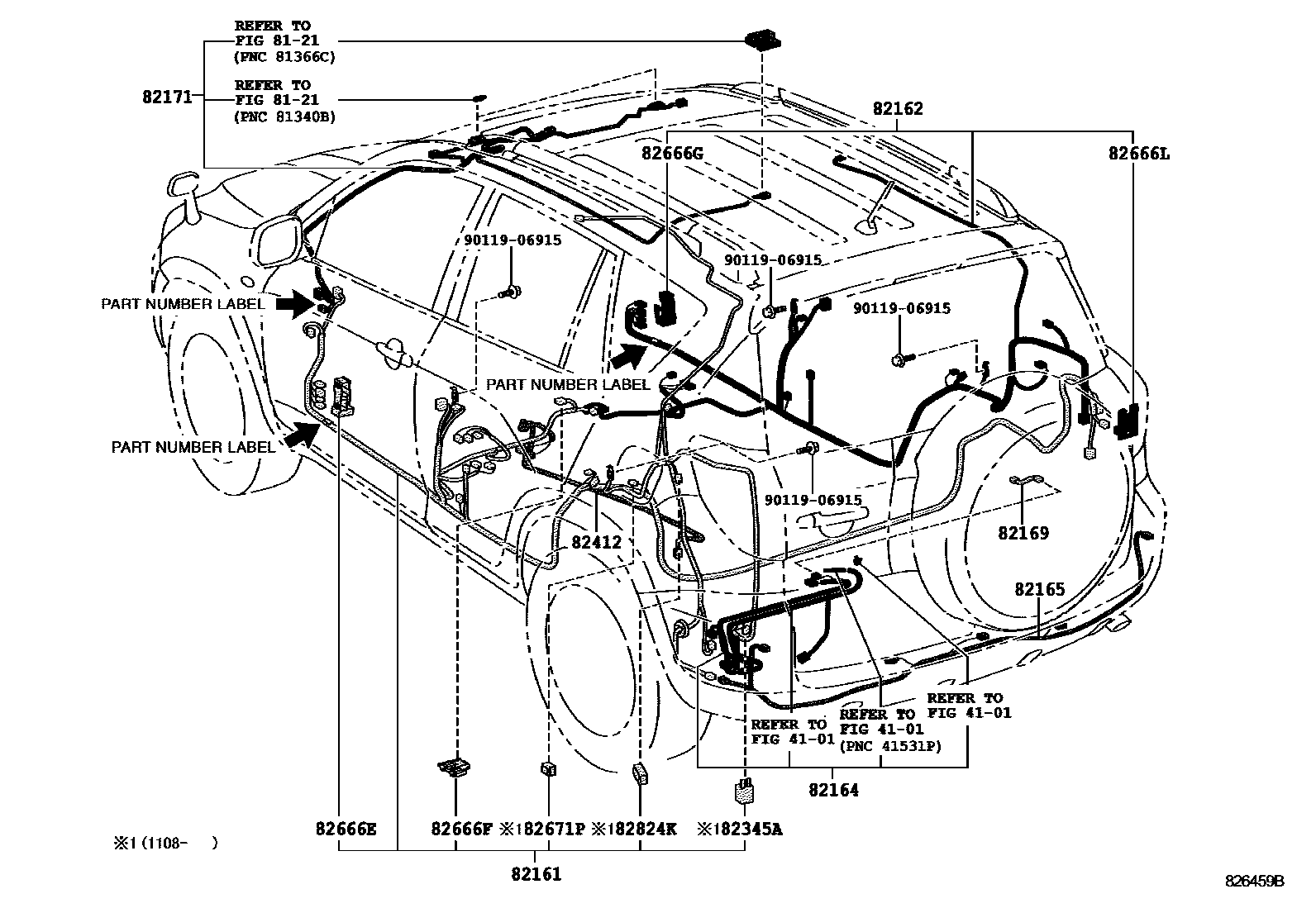

| 82161 | floor wiring harness | 82161-0R100 · 82161-0R110 · 82161-0R130 · 82161-0R150 · 82161-0R160 · 82161-0R170 · 82161-0R171 · 82161-0R180 · 82161-0R181 · 82161-0R320 |
| 82162 | Floor wiring harness No. 2 | 82162-0R190 · 82162-0R200 · 82162-0R201 · 82162-0R210 · 82162-0R260 · 82162-0R280 · 82162-0R281 |
| 82164 | Frame wiring harness set | 82164-0R020 |
| 82165 | No. 2 frame wiring harness | 82165-0R010 · 82165-0R011 · 82165-0R012 · 82165-0R020 |

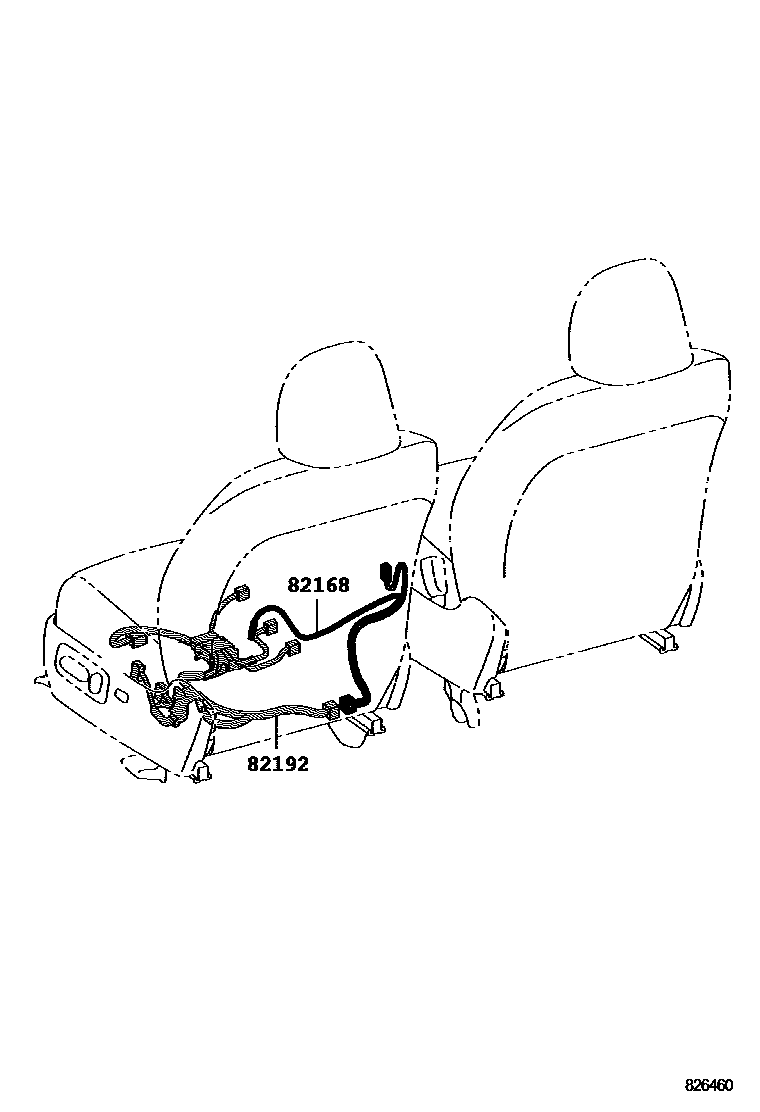

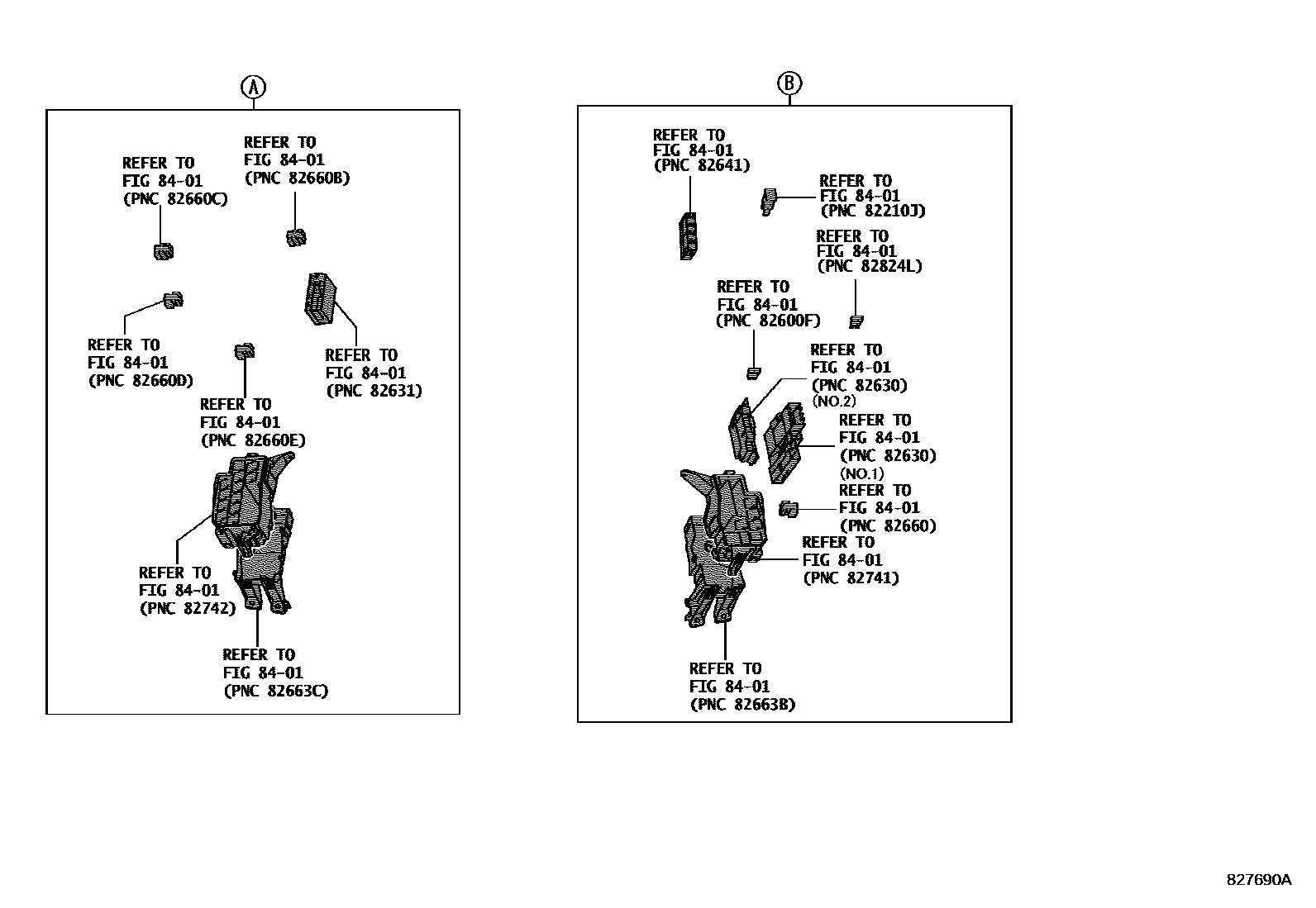

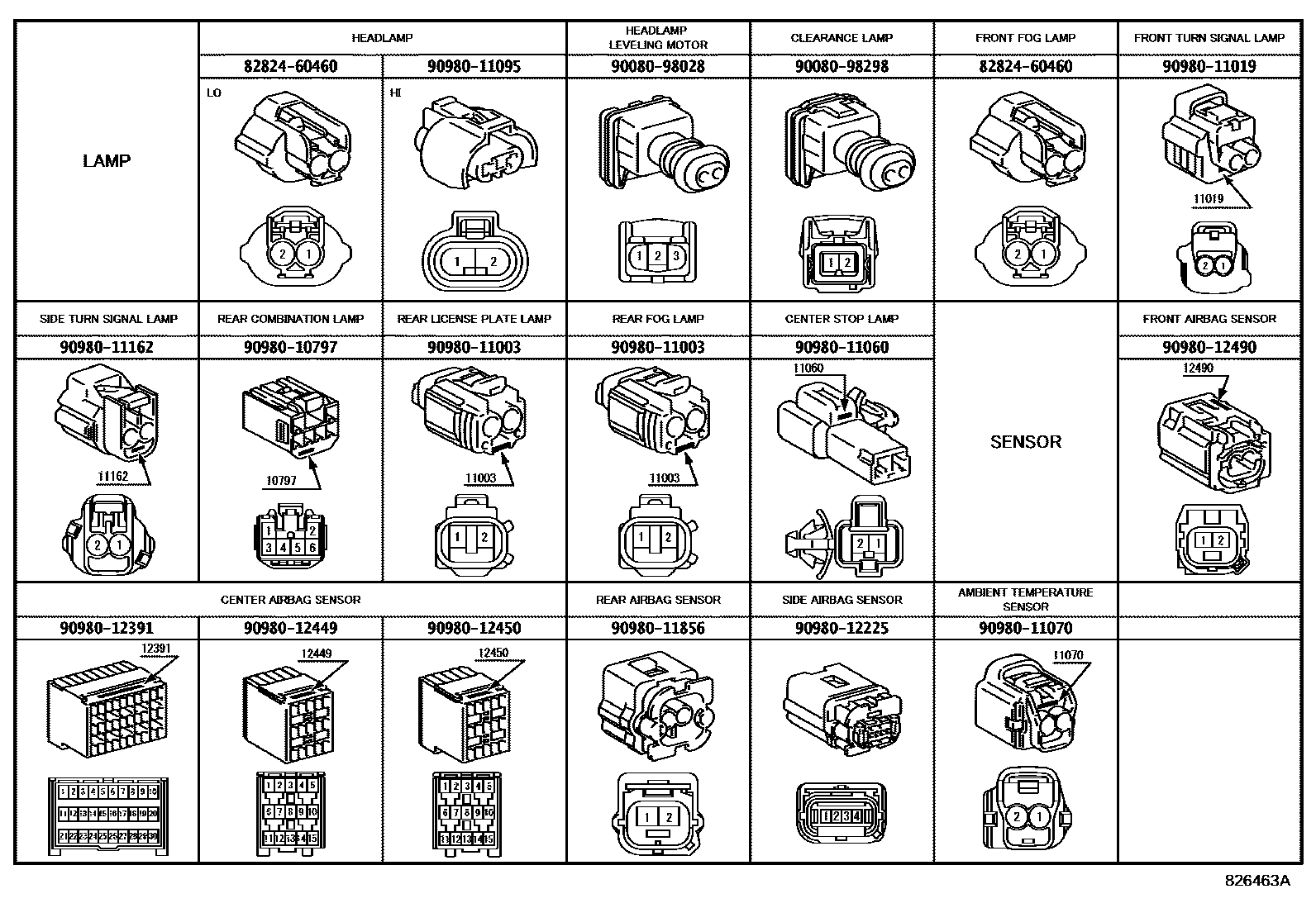

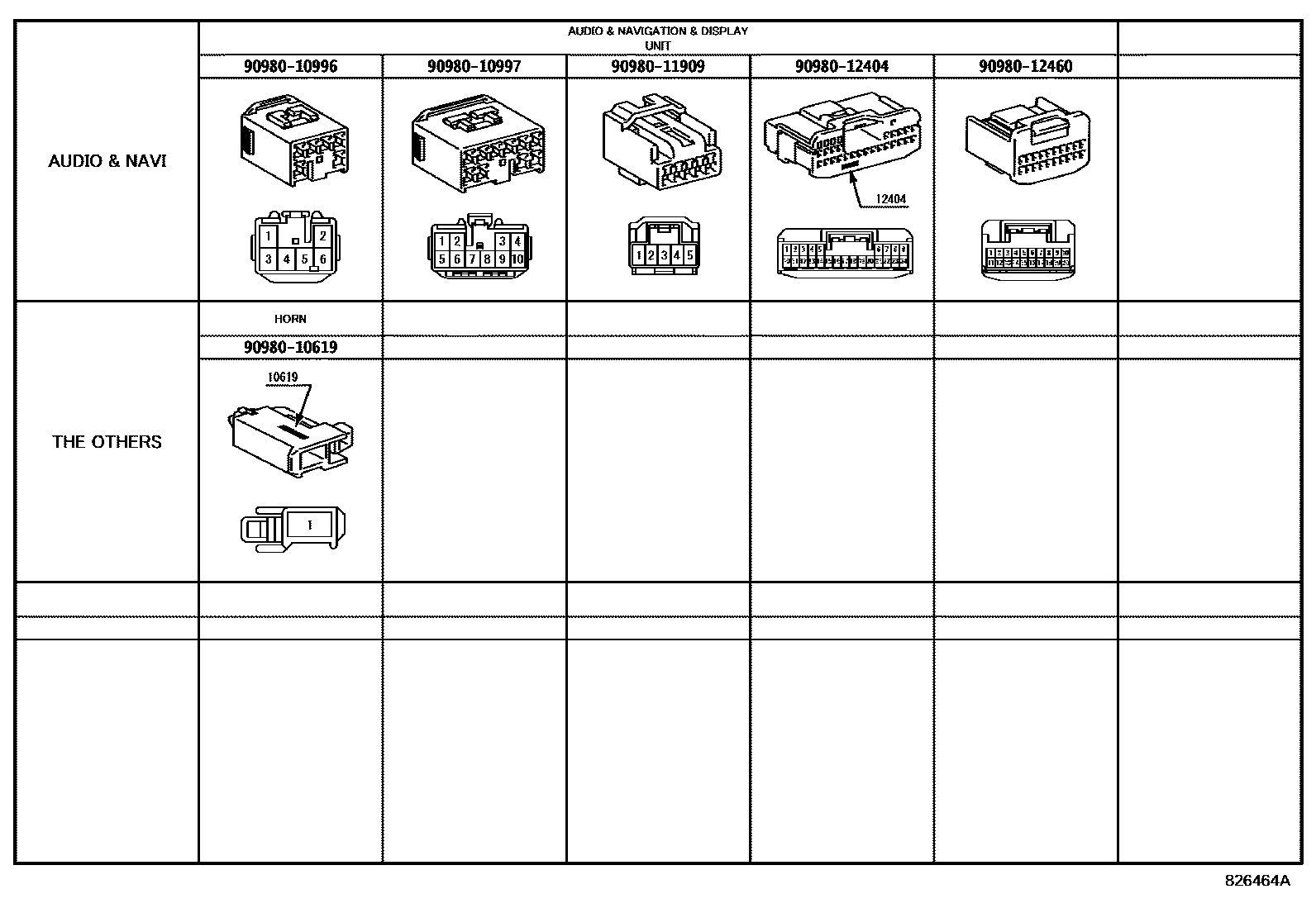

| 82168 | Seat No. 2 wiring harness | 8219B-02010 · 8219B-0R010 |
| 82169 | No. 3 frame wiring harness | 82169-0R020 |
| 82171 | Roof No. 1 wiring harness | 82171-0R040 · 82171-0R050 · 82171-0R051 · 82171-0R052 · 82171-0R100 · 82171-0R110 · 82171-0R120 |
| 82184 | Rear door No. 1 wiring harness | 82184-0R050 · 82184-0R060 · 82184-0R110 · 82184-0R210 |
| 82192 | Front left seat wiring harness | 82192-0R020 · 82192-0R030 |
| 82345 | diode | 82345-12050 |
| 82345A | diode | 82345-12050 |
| 82412 | Fuel gauge wiring harness | 82412-0R020 |
| 82666A | Connector holder No. 2 | 82666-42160 |
| 82666B | No. 3 connector holder | 82666-42250 |
| 82666C | No. 4 connector holder | 82666-42231 |
| 82666D | No. 5 connector holder | 82666-42241 |
| 82666E | No. 6 connector holder | 82666-42200 |
| 82666F | No. 7 connector holder | 82666-42260 |
| 82666G | No. 8 connector holder | 82666-42210 |
| 82666L | No. 9 connector holder | 82666-42280 |
| 82666N | No. 10 connector holder | 82666-42171 |
| 82671 | junction box | 82671-30360 |
| 82671J | No. 2 junction box | 82671-30370 |
| 82671K | No. 3 junction box | 82671-30370 |
| 82671M | No. 5 junction box | 82671-42050 · 82671-42110 |
| 82671N | No. 6 junction box | 82671-42060 · 82671-42120 |
| 82671P | No. 7 junction box | 82671-30360 |
| 82823S | starter terminal cover | 82823-20080 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-47210 |
| 82824A | Harness connector | 82824-47210 · 82824-50340 |
| 82824D | Harness connector | 82824-47210 · 82824-50340 |
| 82824E | Harness connector | 82824-42180 · 82824-42190 · 82824-42200 · 82824-42210 · 82824-52080 |
| 82824G | Harness connector | 82824-30220 |
| 82824H | Harness connector | 82824-20110 |
| 82824J | Harness connector | 82824-30130 |
| 82824K | Harness connector | 82824-22080 |
| 82991 | Fuse repair line | 82991-0R010 |
