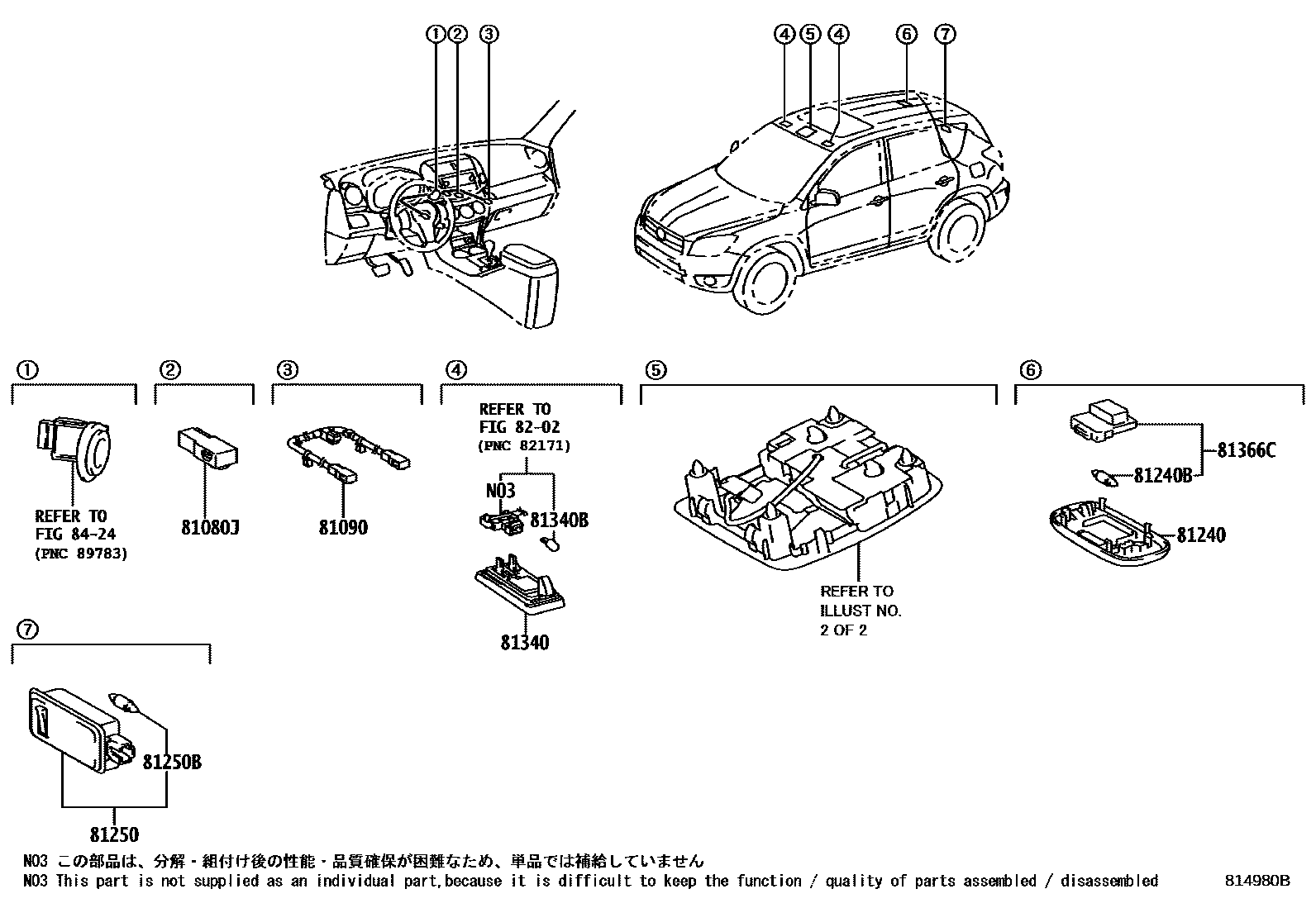

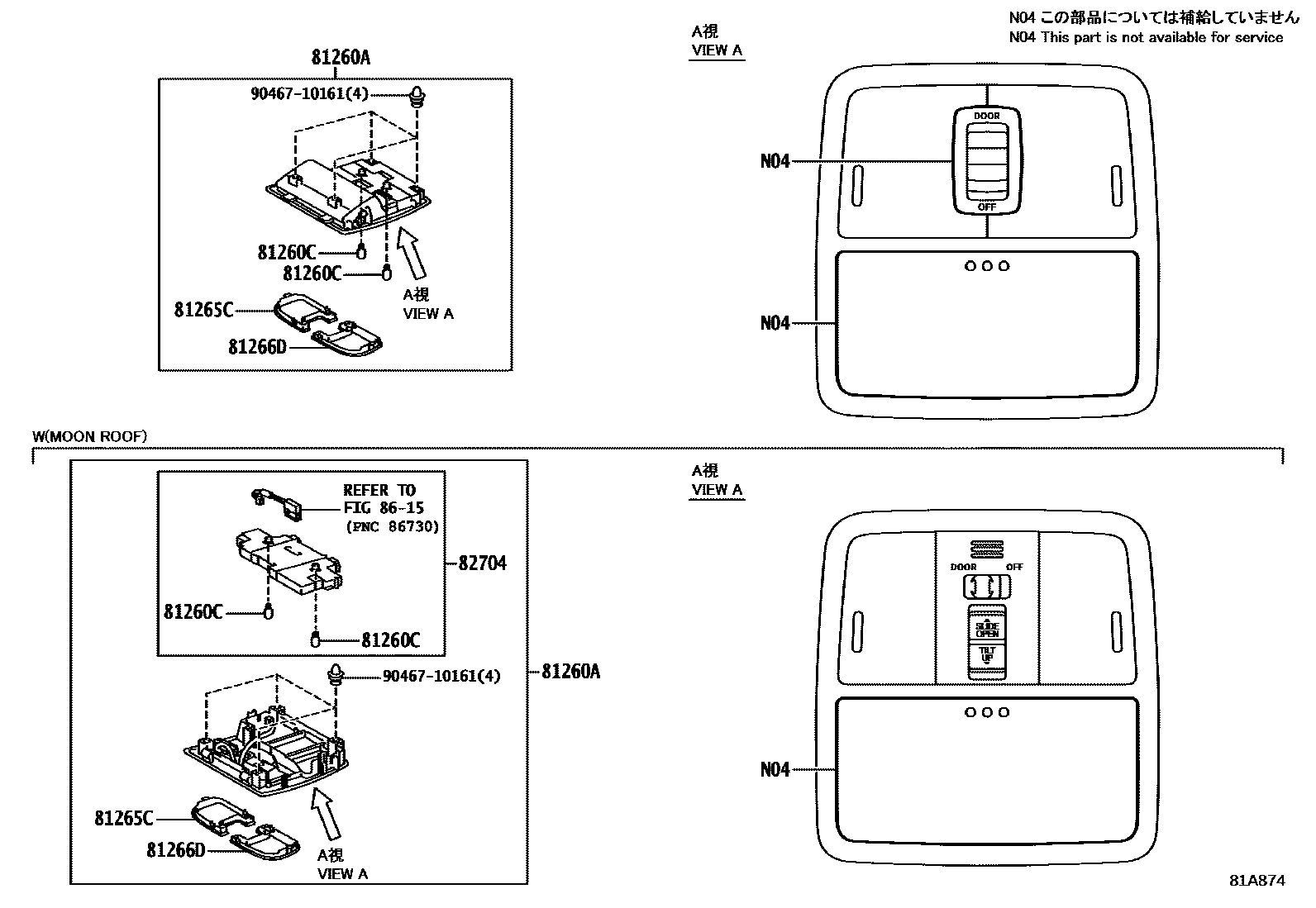

Toyota RAV4 车内灯 — Figure 8121
Toyota RAV4 EPC diagram 8121, 车内灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080J | No. 1 interior lighting assembly | 81080-0R020 · 81080-42010 |
| 81090 | No. 2 interior lighting assembly | 81090-0R020 · 81090-42010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250 | No. 2 interior light assembly | 81250-48010 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 |
| 81265C | No. 1 reading lamp shade | 81265-42010 · 81265-42020 |
| 81266D | Reading lamp shade No. 2 | 81266-42010 · 81266-42020 |
| 81340 | Vanity light assembly | 81340-0P010 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81366C | Interior light switch base | 81366-68010 |
