Toyota RAV4 Headlamp — Figure 8101

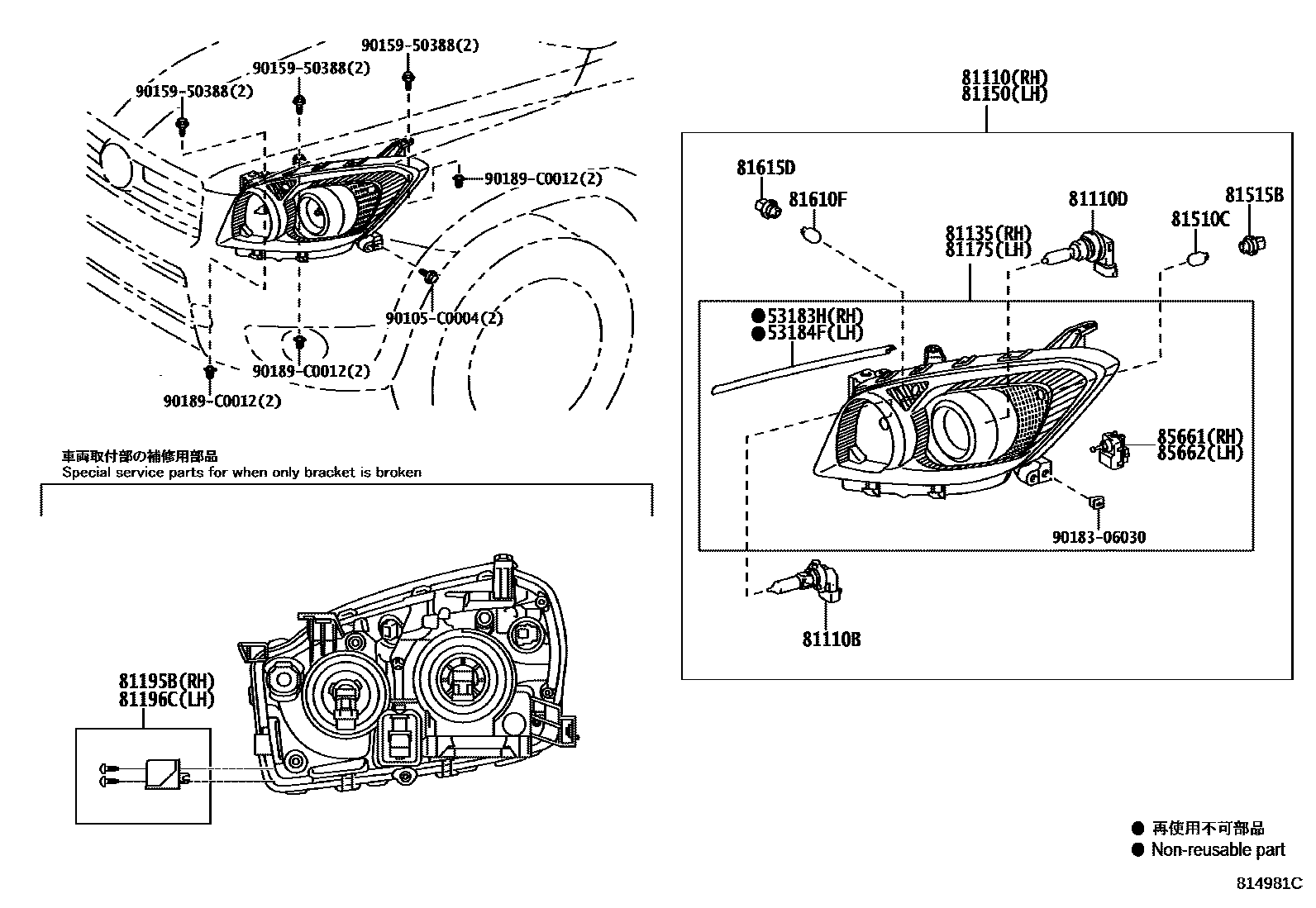

Toyota RAV4 EPC diagram 8101, Headlamp, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-42030 |
| 53184F | Left headlight cover seal | 53184-42030 |
| 81110 | Right headlight assembly | 81110-0R030 · 81110-0R050 |
| 81110B | Bulb (for headlight No. 1) | 90981-CD001 |
| 81110D | Bulb (for headlight No. 2) | 90981-13082 · 90981-CD002 |
| 81135 | Right headlight assembly assembly | 81130-0R030 · 81130-0R050 |
| 81150 | Left headlight assembly | 81150-0R030 · 81150-0R050 |
| 81175 | Left headlight assembly assembly | 81170-0R030 · 81170-0R050 |
| 81195B | Right headlight lower right protection piece | 81195-42020 |
| 81196C | Left headlight lower left protection piece | 81196-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 · 90981-15029 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-1E480 |
| 85661 | Right headlight beam height adjustment motor | 85661-52010 |
| 85662 | Left headlight beam height adjustment motor | 85661-52010 |
