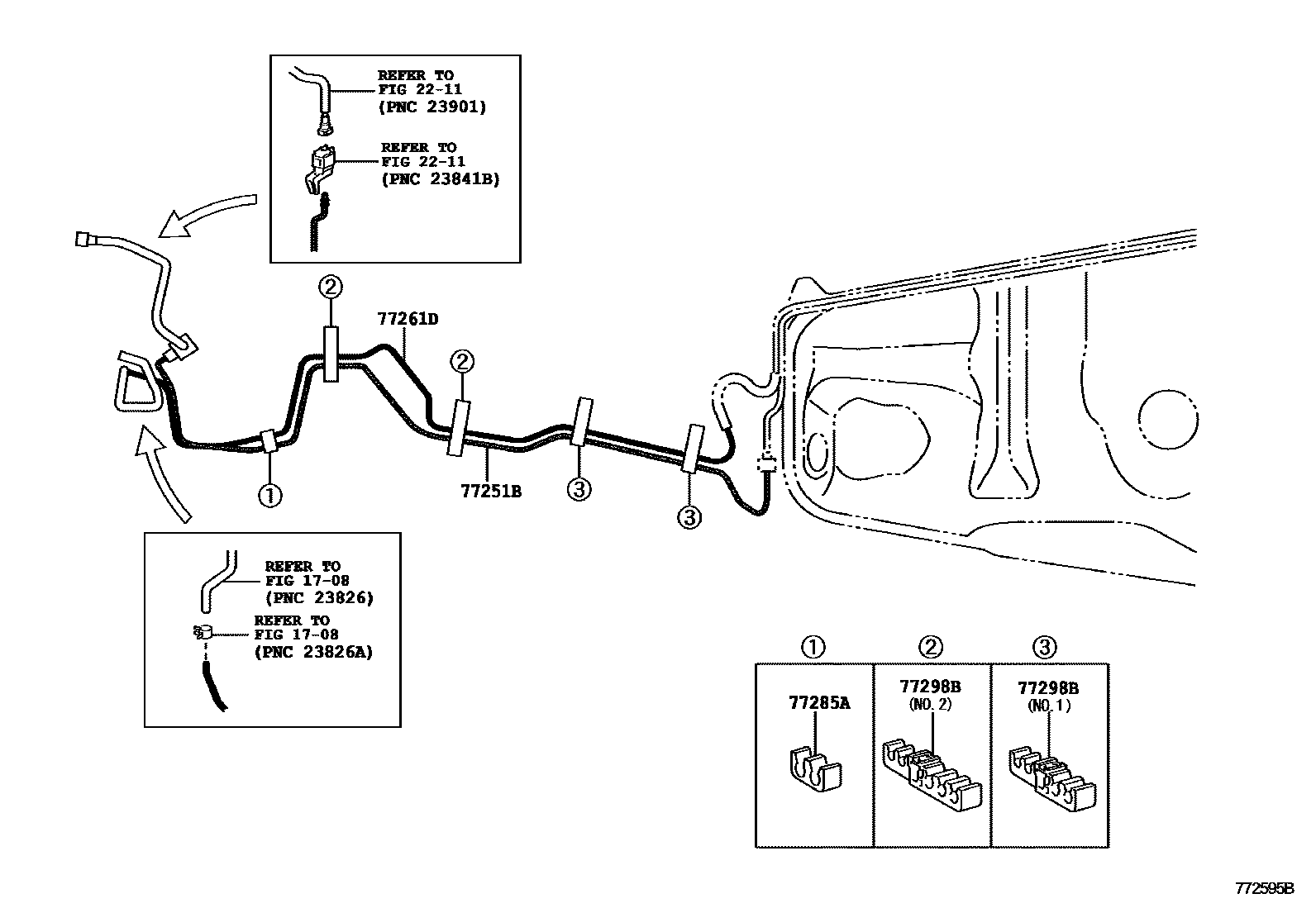

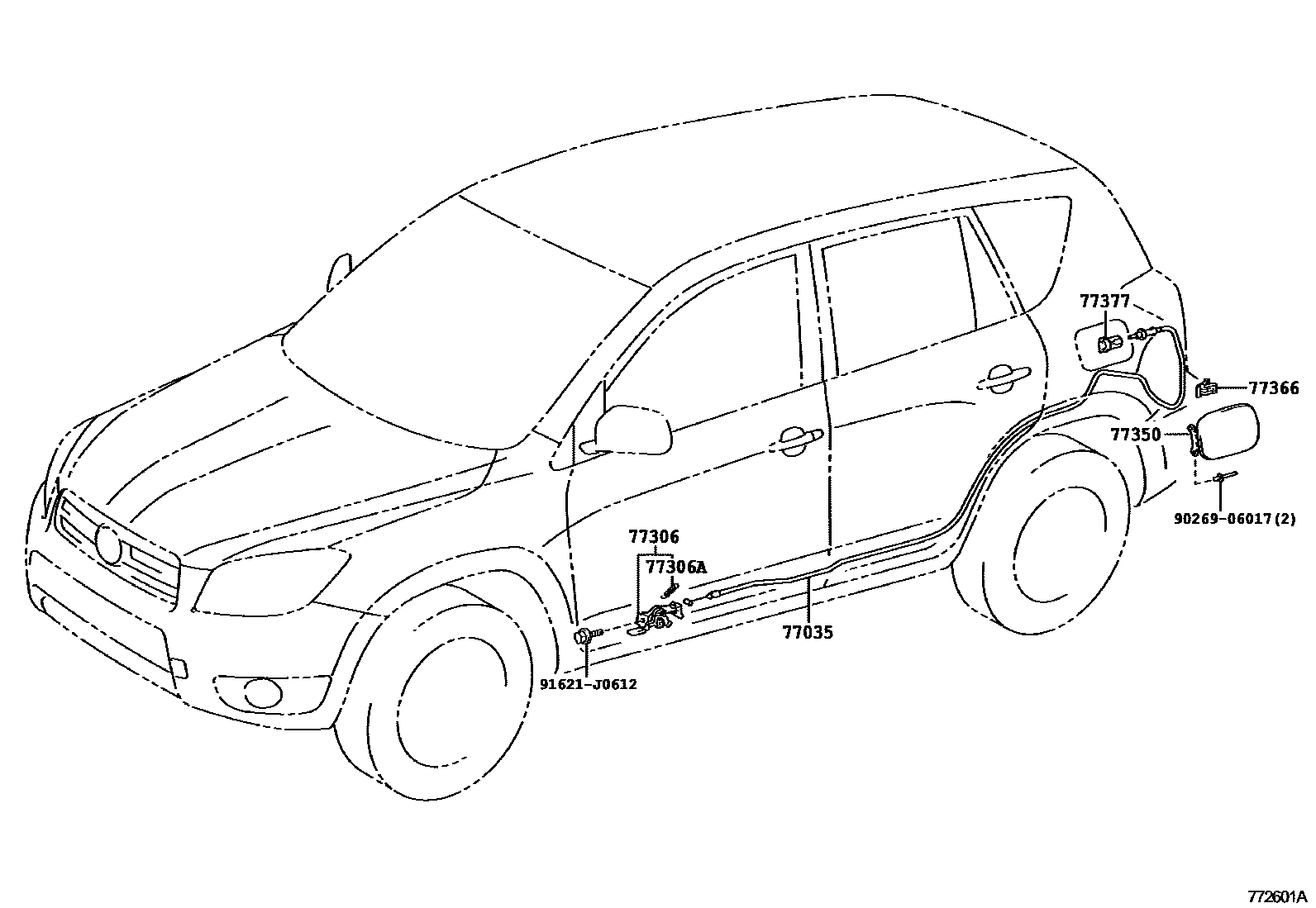

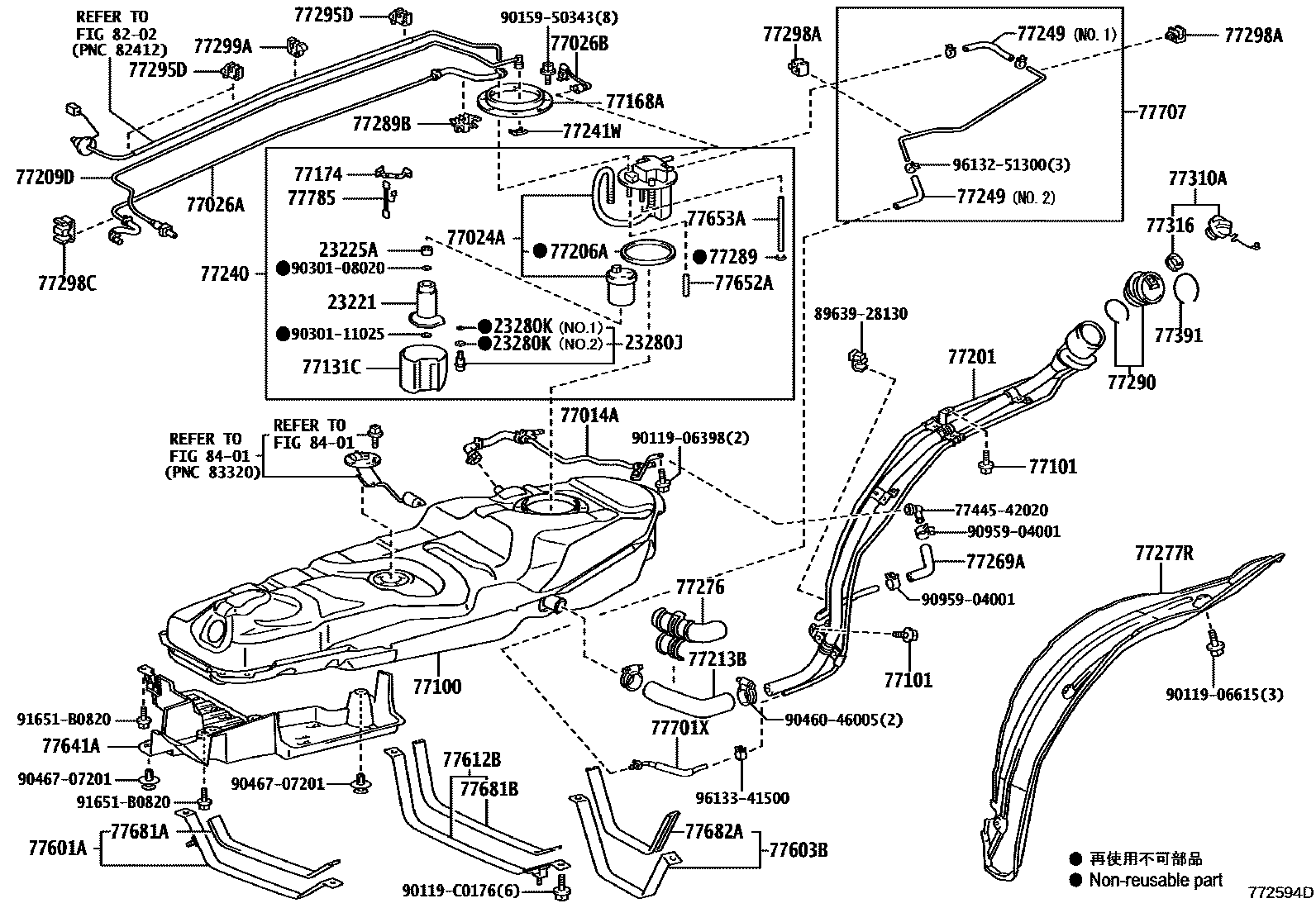

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 3 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0H160 · 23220-0H161 |
| 23225A | fuel pump septum | 23225-0H020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-42010 |
| 77024A | Fuel absorber sub-assembly | 77024-0R020 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0R010 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-0R020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0R020 |
| 77100 | fuel tank assembly | 77001-0R020 |
| 77101 | Connector (for auxiliary fuel tank) | 90105-C0123 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0R040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-0R010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D040 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-0R020 · 77201-0R021 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-52010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-0R020 |
| 77213B | Fuel tank to filler pipe hose | 77213-0R020 · 77213-42080 |
| 77240 | Fuel suction pipe assembly | 77020-0R030 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-0R020 · 77249-0R030 |
| 77251B | main fuel pipe | 77251-0R020 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0R020 |
| 77269A | fuel tank breather hose | 77269-0R010 |
| 77276 | Fuel hose protector | 77276-42020 |
| 77277R | Fuel tank filler pipe protection device | 77277-0R020 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-0R010 |
| 77289 | Fuel tank pipe holder | 77289-0D070 |
| 77289B | No. 3 fuel pipe clamp | 77289-0R020 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0R020 |
| 77295D | Fuel pipe retaining ring | 77295-0R010 |
| 77298A | No. 4 fuel pipe clamp | 77298-0R010 |
| 77298B | No. 4 fuel pipe clamp | 77298-0R030 · 77298-0R080 |
| 77298C | No. 4 fuel pipe clamp | 77298-0R020 |
| 77299A | No. 5 fuel pipe clamp | 77299-0R020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0R010 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77300-0F010 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-42070 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0R010 |
| 77603B | No. 2 fuel tank right side band sub-assembly | 77603-0R010 |
| 77612B | No. 2 fuel tank strap | 77602-0R010 |
| 77641A | No. 1 fuel tank protective shell | 77641-0R010 |
| 77652A | No. 2 fuel tank liner | 77652-0R070 |
| 77653A | No. 3 fuel tank liner | 77652-0R080 |
| 77681A | Fuel tank strap seat | 77681-42010 |
| 77681B | Fuel tank strap seat | 77681-21010 |
| 77682A | No. 2 fuel tank strap seat | 77681-42010 |
| 77701X | No. 1 carbon canister outlet hose sub-assembly | 77701-0R020 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-0R010 |
| 77785 | fuel pump wiring harness | 77785-0R020 · 77785-0R021 |
