Toyota RAV4 seat belt — Figure 7152

Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 5 PNC and OE references.

Toyota RAV4 seat belt EPC diagram — 716184A
seat belt — 716184A (200903 – 999999)

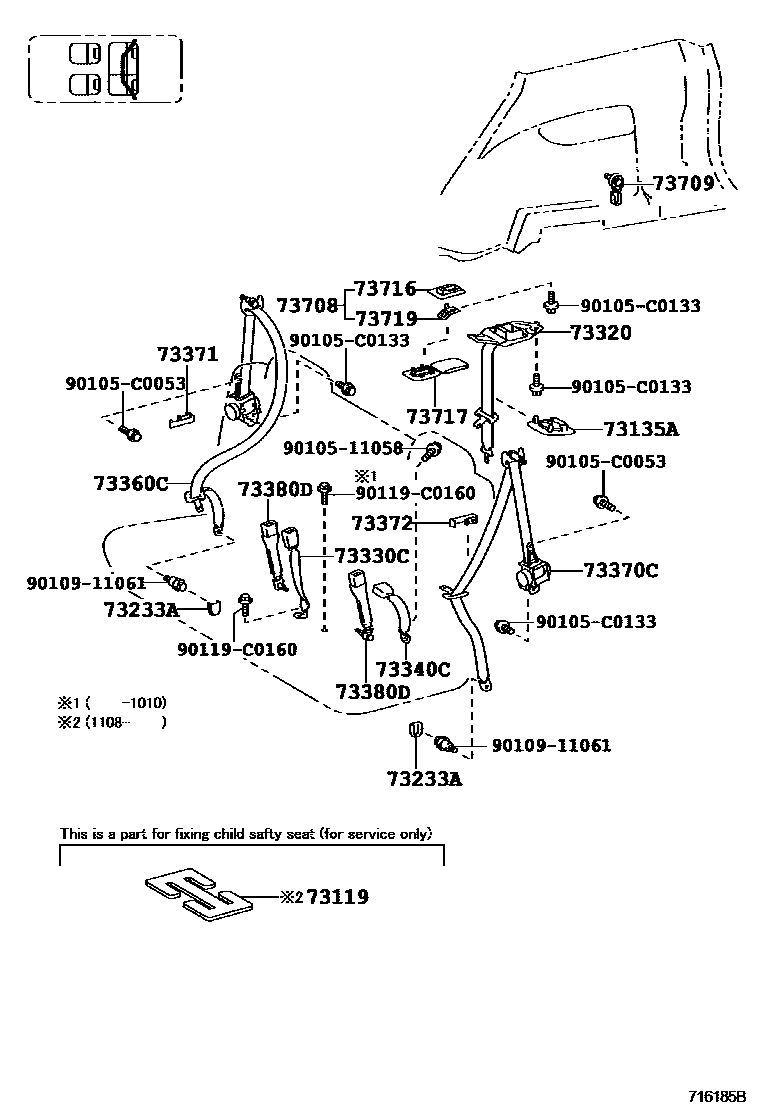

Toyota RAV4 seat belt EPC diagram — 716185B
seat belt — 716185B (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
73119seat belt clip73119-22010
73200AFront shoulder seat belt anchor adjuster assembly73200-06080
73233Lap belt outer anchor cover73233-0R020
73233ARear seat No. 1 lap belt outer anchor cover73233-0R020
73719Child restraint seat tether anchor bracket73719-42010
