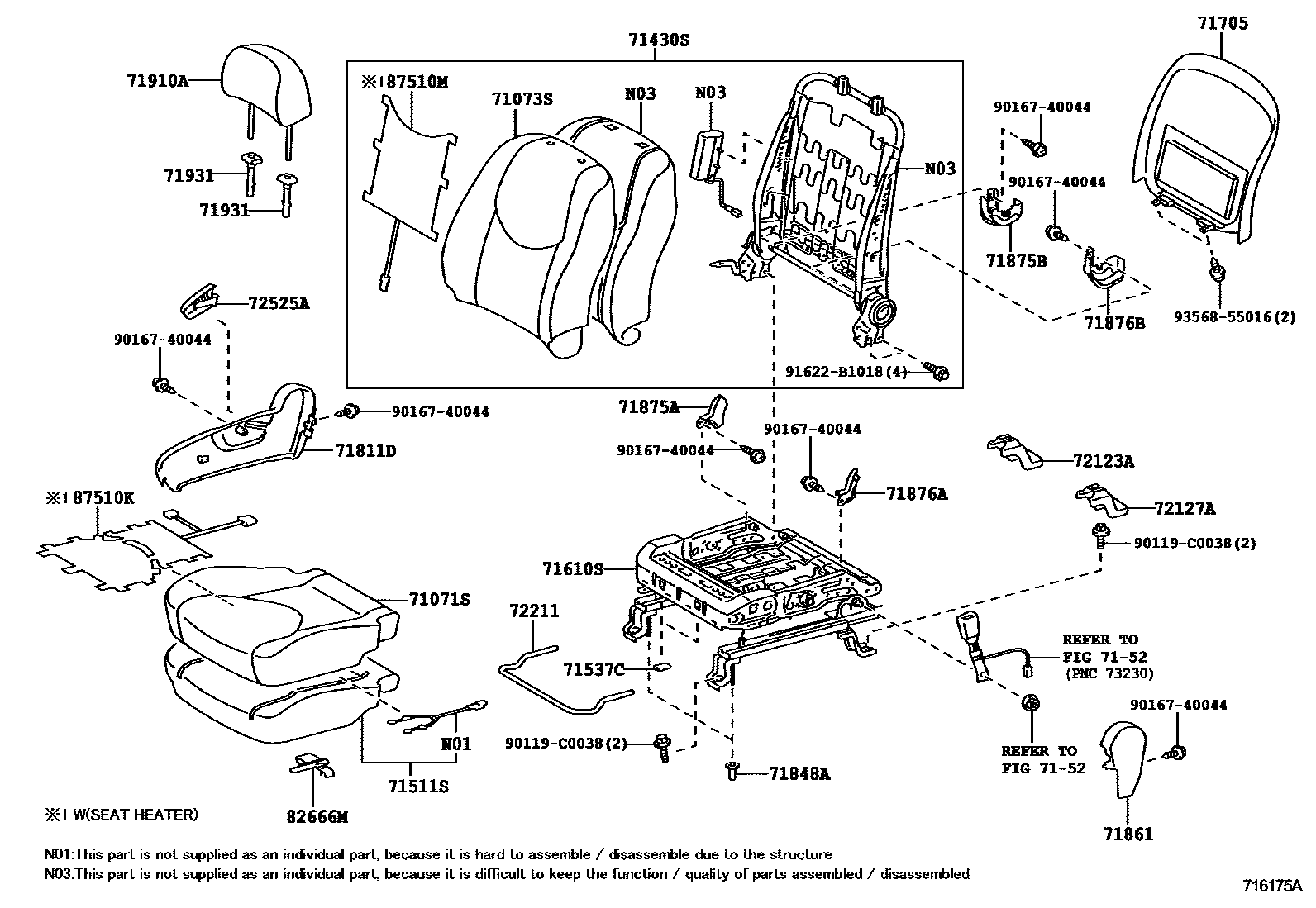

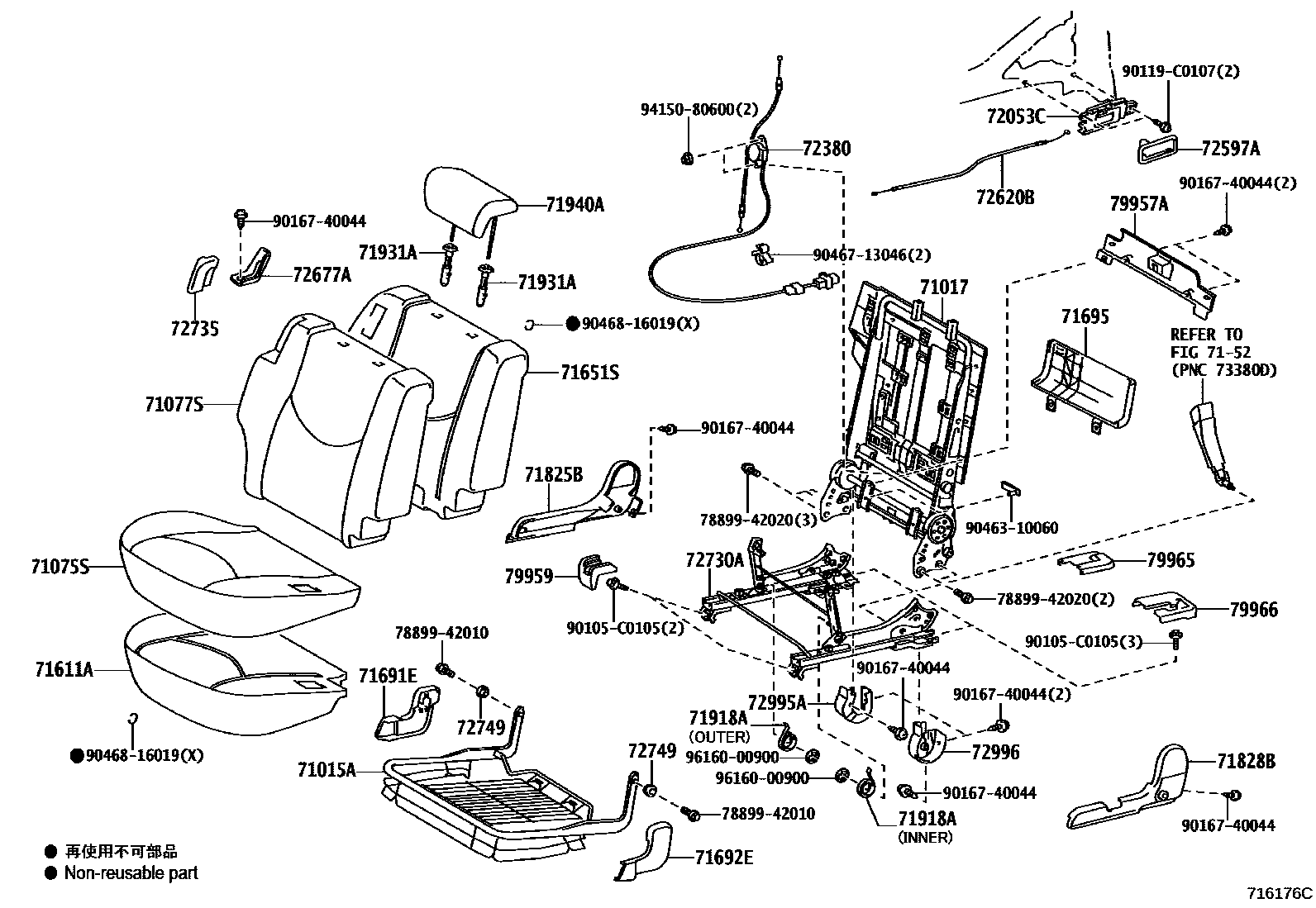

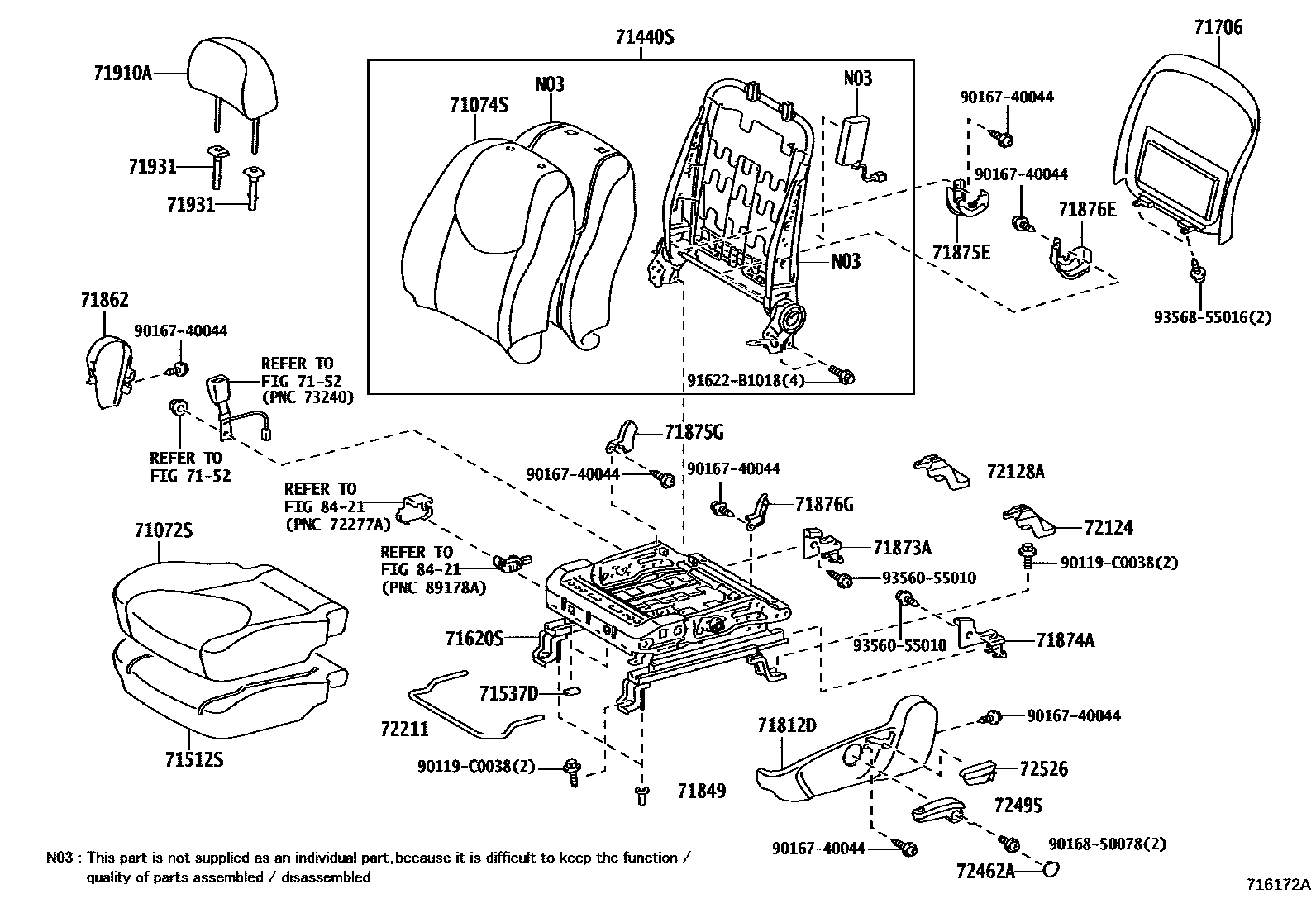

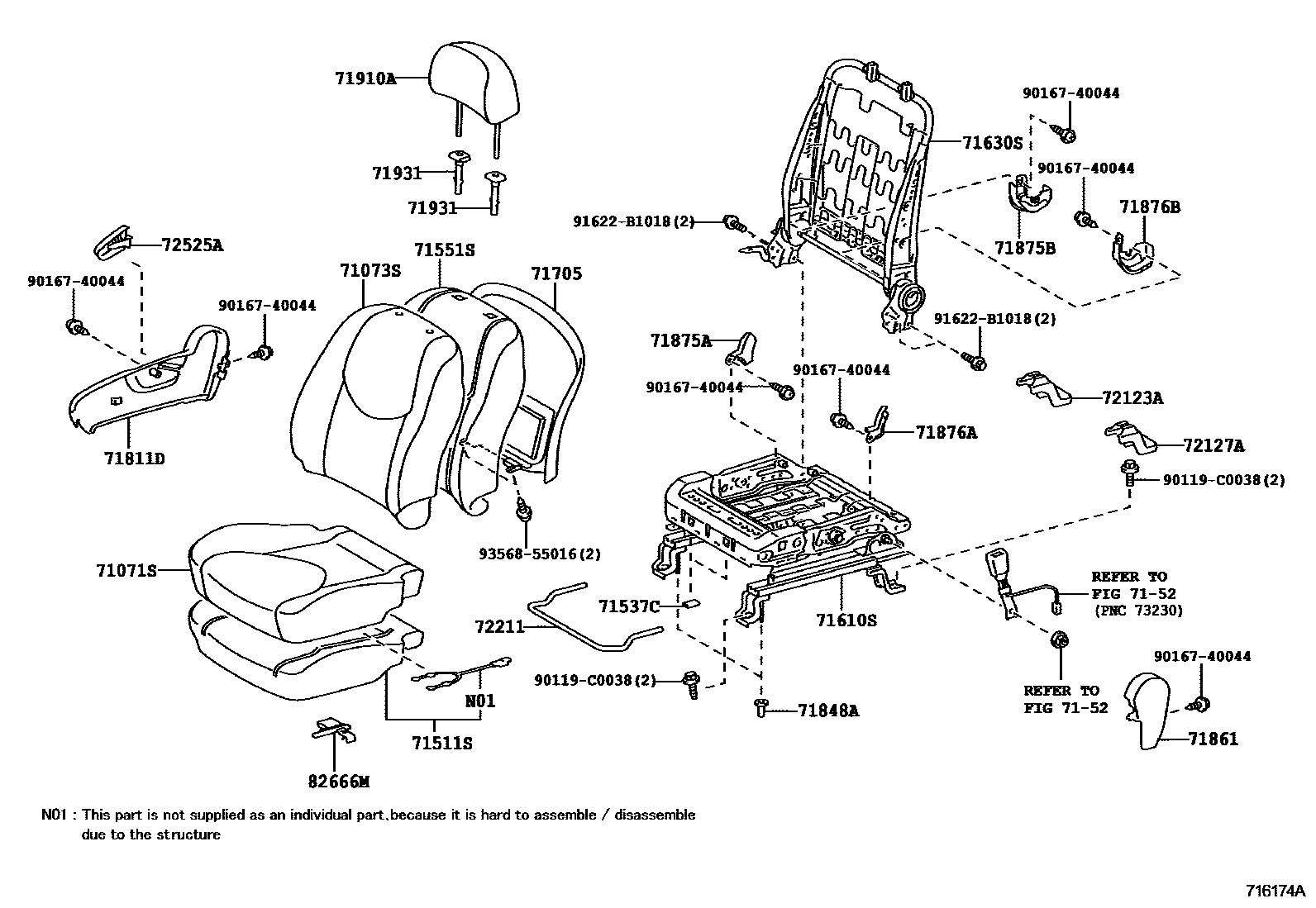

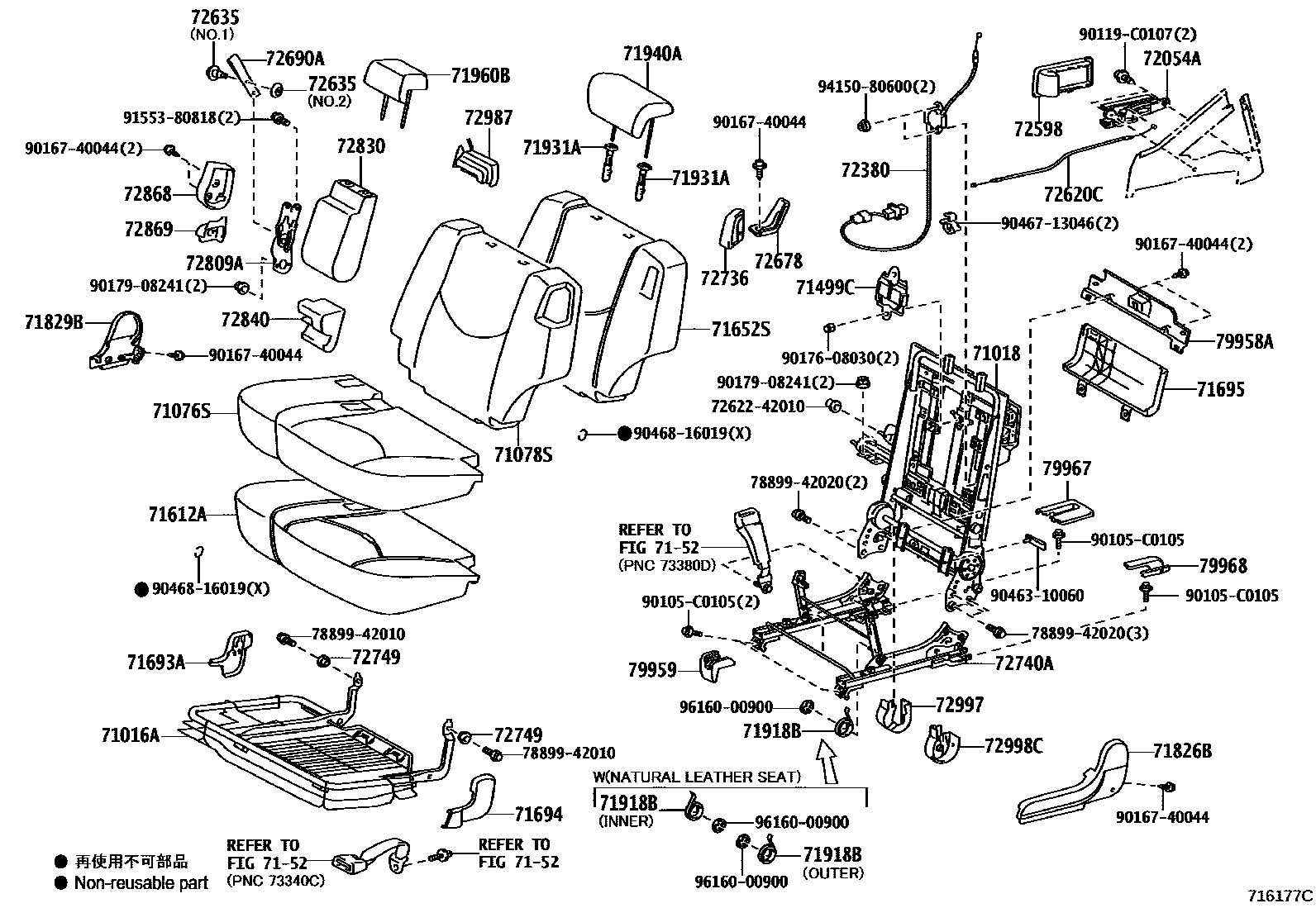

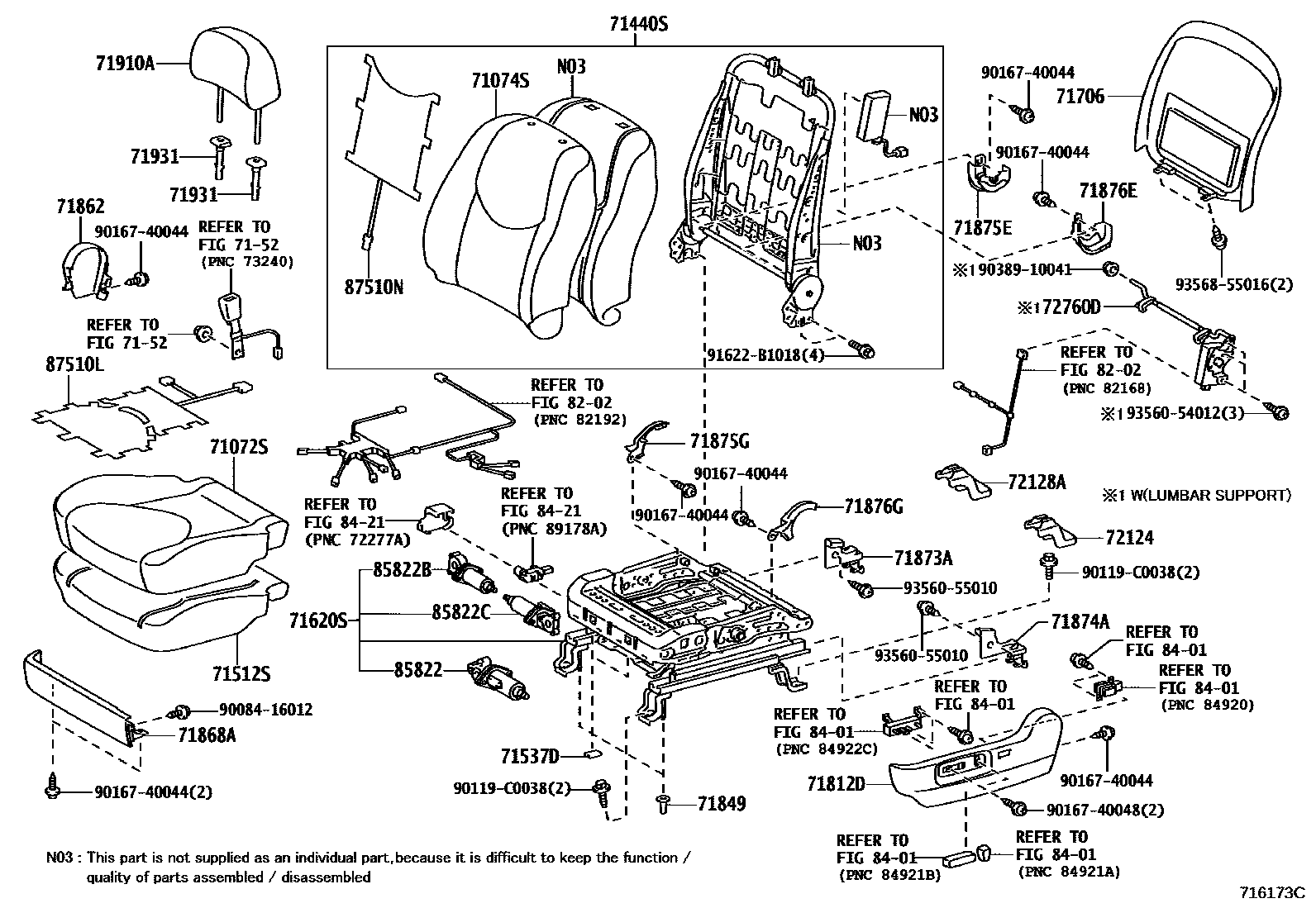

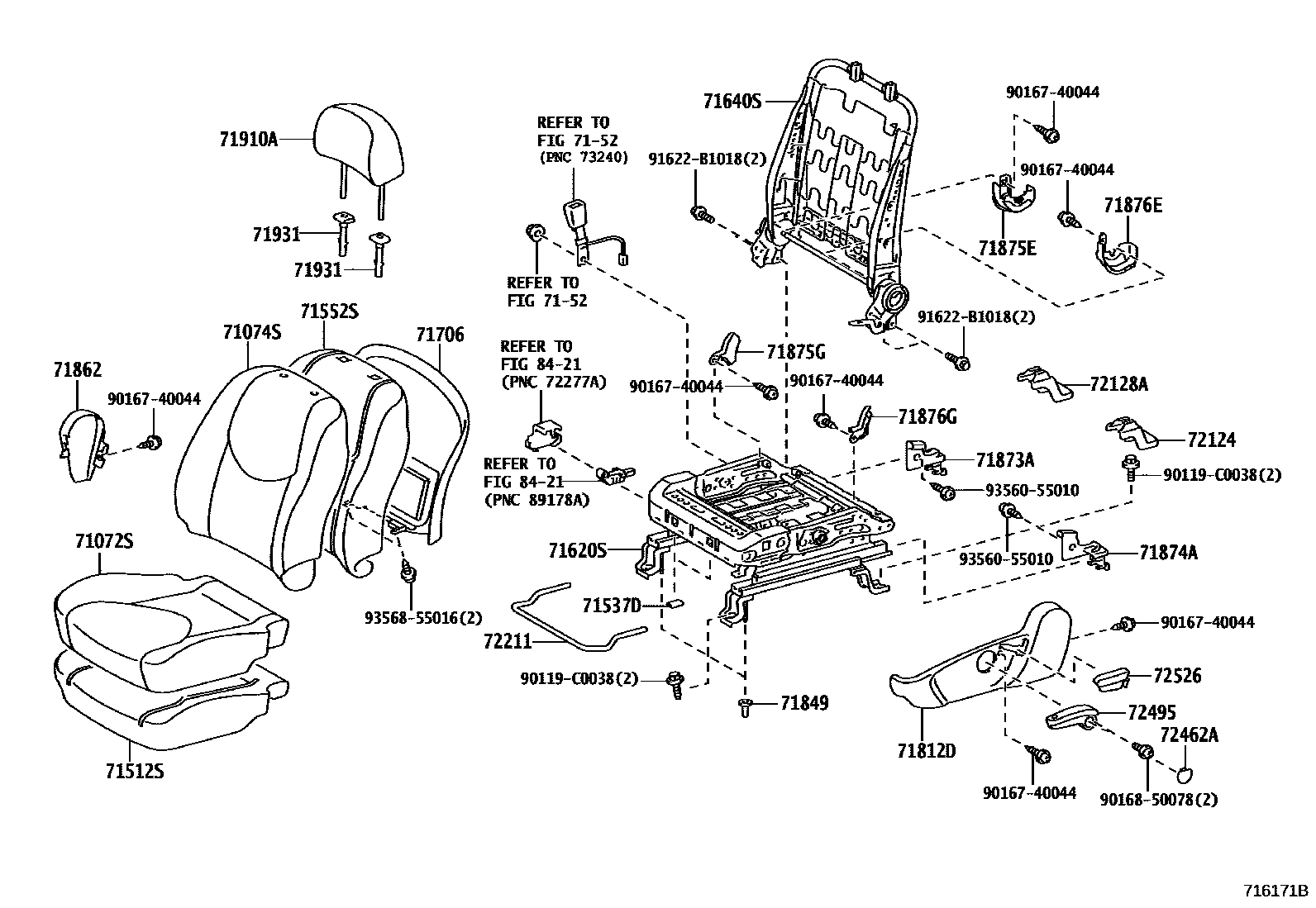

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71650-0R030 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-0R020 |
| 71017 | Right rear seat back frame sub-assembly | 71017-0R030 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0R020 |
| 71499C | Rear seat cushion spring damper | 71499-0R020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-0R020 · 71051-0R030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-0R020 · 71512-0R050 |
| 71537C | Front right seat cushion edge protective cover | 71537-02020 |
| 71537D | Front left seat cushion edge protective cover | 71537-02020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0R060 |
| 71552S | Front left seat back cushion (for split seats) | 71551-0R060 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0R010 |
| 71611A | Rear right seat cushion | 71611-0R020 |
| 71612A | Rear left seat cushion | 71612-0R020 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0R010 · 71620-0R020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0R010 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0R010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R030 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R020 |
| 71695 | Rear seat back protection cover | 71695-0R020 |
| 71848A | Right seat adjuster cover | 71848-33010 |
| 71849 | left seat adjuster cover | 71848-33010 |
| 71873A | Front seat cushion lower guard | 71873-06280 |
| 71874A | Front left seat cushion lower guard | 71874-06240 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06340 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-06340 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-06370 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-06230 · 71876-06370 |
| 71918A | Center seat cushion buckle spring | 71918-42010 · 71918-42020 |
| 71918B | No. 2 center seat cushion buckle spring | 71918-42010 · 71918-42020 |
| 72053C | Right seat backrest inclination rocker sub-assembly | 72053-0R020 |
| 72054A | Left seat backrest tilt remote control lever sub-assembly | 72054-0R020 |
| 72211 | Seat slide adjustment handle | 72211-06040 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-42020 · 72380-42030 |
| 72597A | Right seat backrest tilt rocker frame | 72597-0R020 |
| 72598 | Left seat backrest tilt rocker frame | 72597-0R020 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-0R030 |
| 72620C | Rear No. 1 seat lock cable assembly | 72620-0R040 |
| 72690A | Rear seat lock release strap assembly | 72690-0R010 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-0R030 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-0R030 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 72760D | Left lumbar support adjuster assembly | 72760-06050 · 72760-06051 |
| 72809A | Center armrest lock sub-assembly | 72809-42010 |
| 82666M | Connector holder | 82666-21060 |
| 85822 | Left electric seat sliding motor assembly | 85801-06020 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-06080 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-06060 |
| 87510K | Front right seat cushion heater assembly | 87510-0R040 |
| 87510L | Front left seat cushion heater assembly | 87510-0R040 |
| 87510M | Front right seat back heater assembly | 87510-0R030 |
| 87510N | Front left seat back heater assembly | 87510-0R030 |
