Toyota RAV4 锁芯组件 — Figure 6765

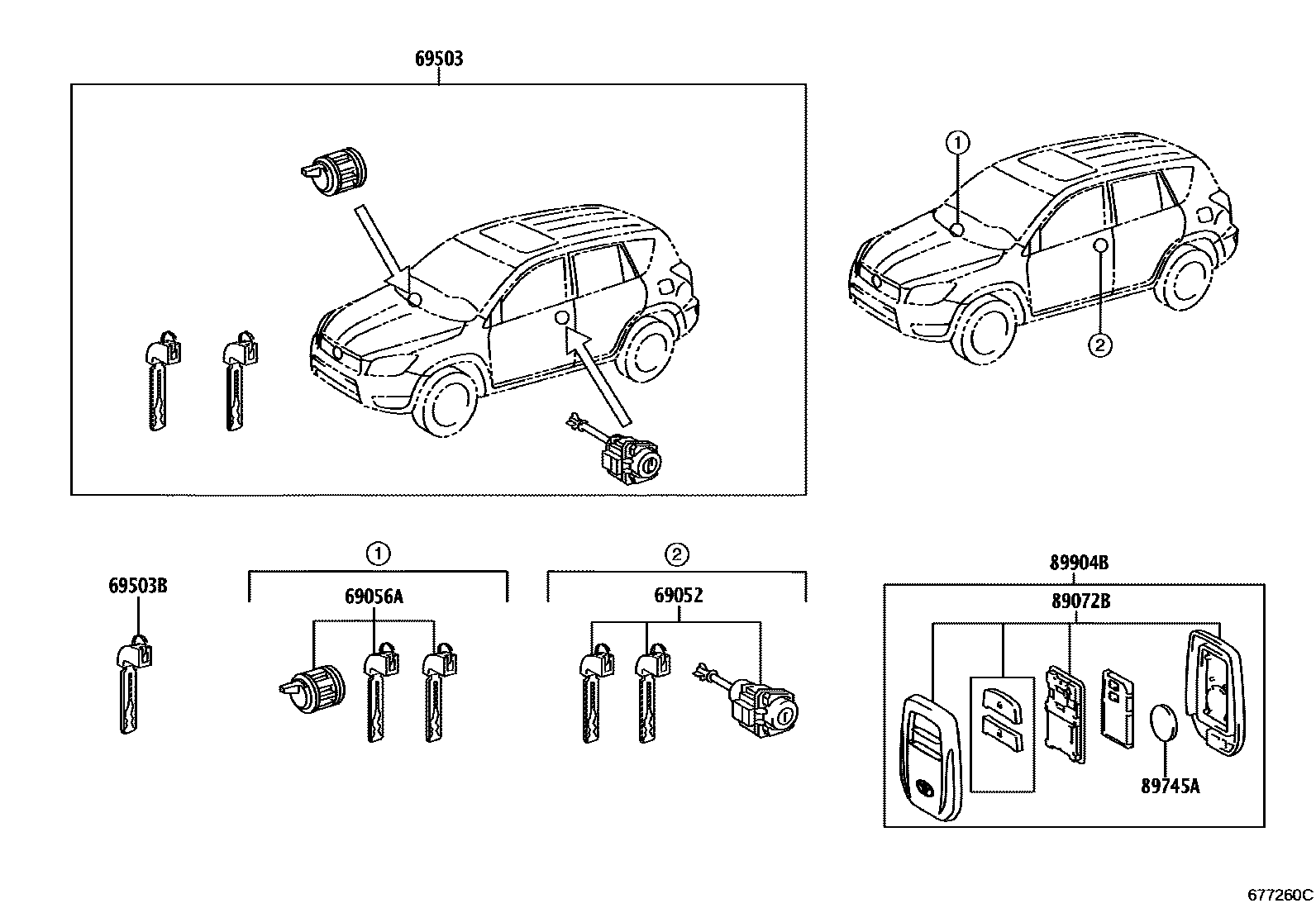

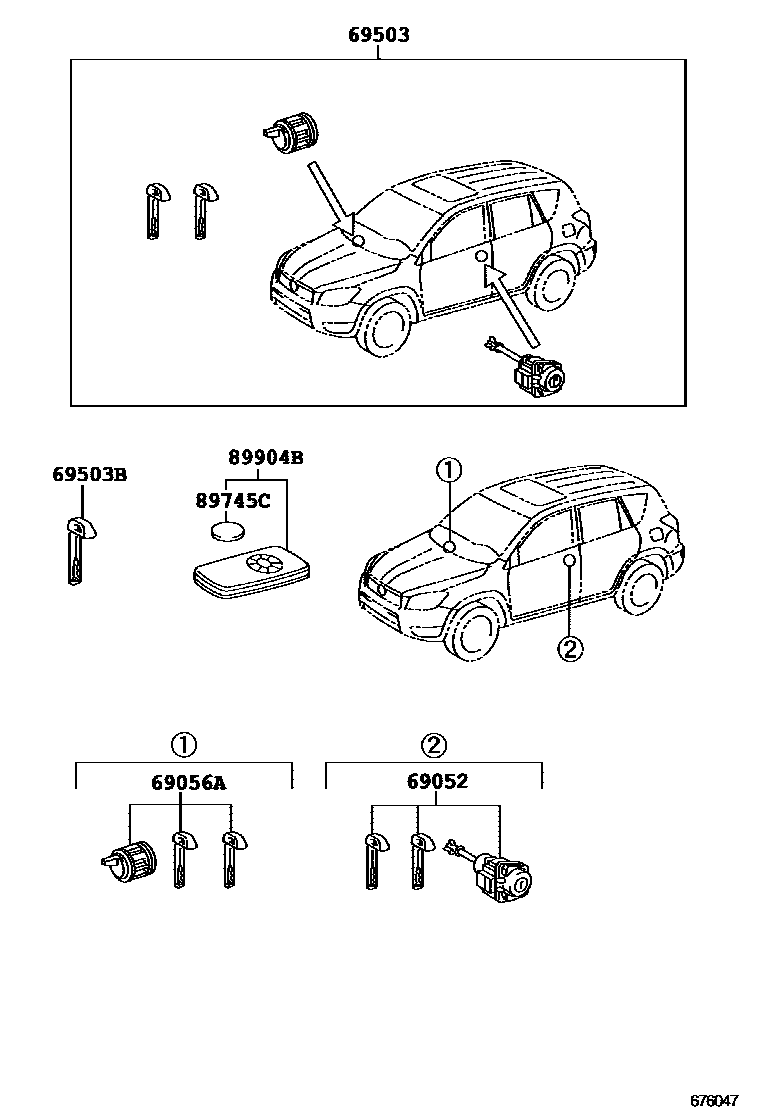

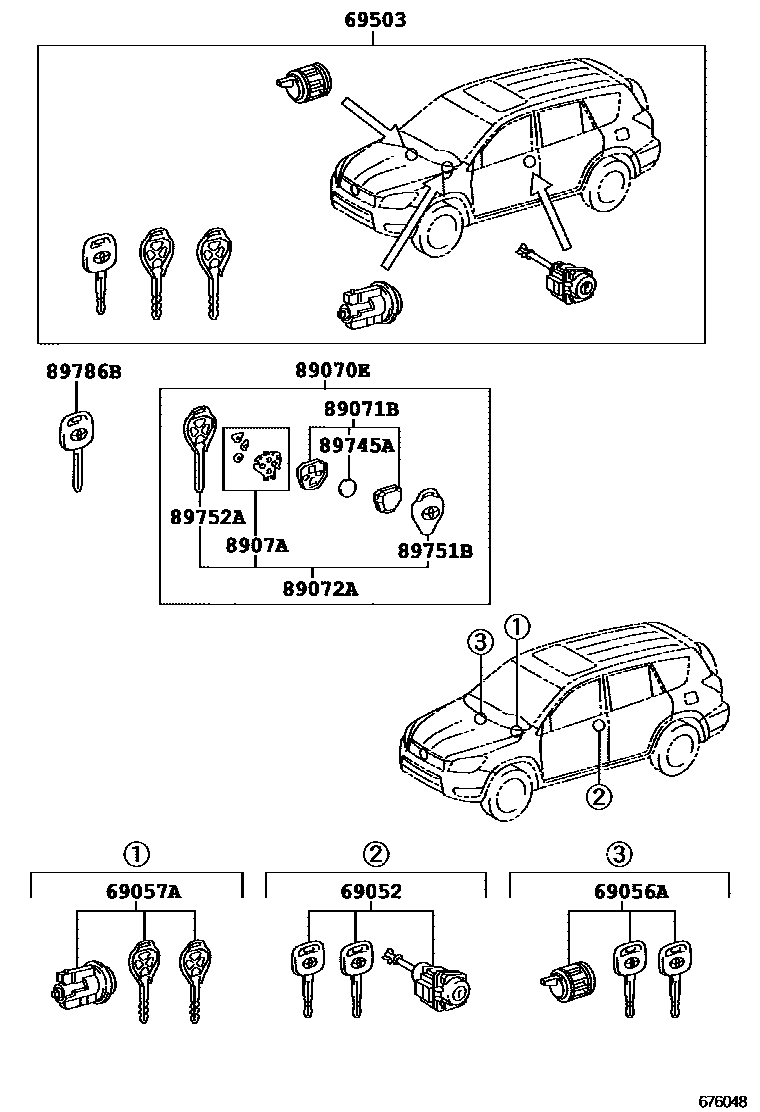

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0D120 · 69052-0R030 · 69052-0R080 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0E070 · 69056-0R020 · 69056-0R030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02570 · 69057-0R010 |
| 69503 | Door lock cylinder components | 69005-0R010 · 69005-0R011 · 69005-0R030 · 69005-0R120 |
| 69503B | internal tooth key | 69515-12310 · 69515-52110 |
| 89070E | Remote key assembly | 89070-02280 · 89070-02590 · 89070-02591 |
| 89071B | Remote key sub-assembly module assembly | 89071-02050 |
| 89072A | Remote key shell assembly | 89072-02070 · 89072-02340 · 89072-02341 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0R140 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-52020 |
| 89751B | Transmitter housing cover | 89751-02030 · 89751-0D020 · 89751-0D021 |
| 89752A | transmitter housing | 89752-02050 · 89752-02270 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0R040 · 89904-0R070 · 89904-0R100 |
