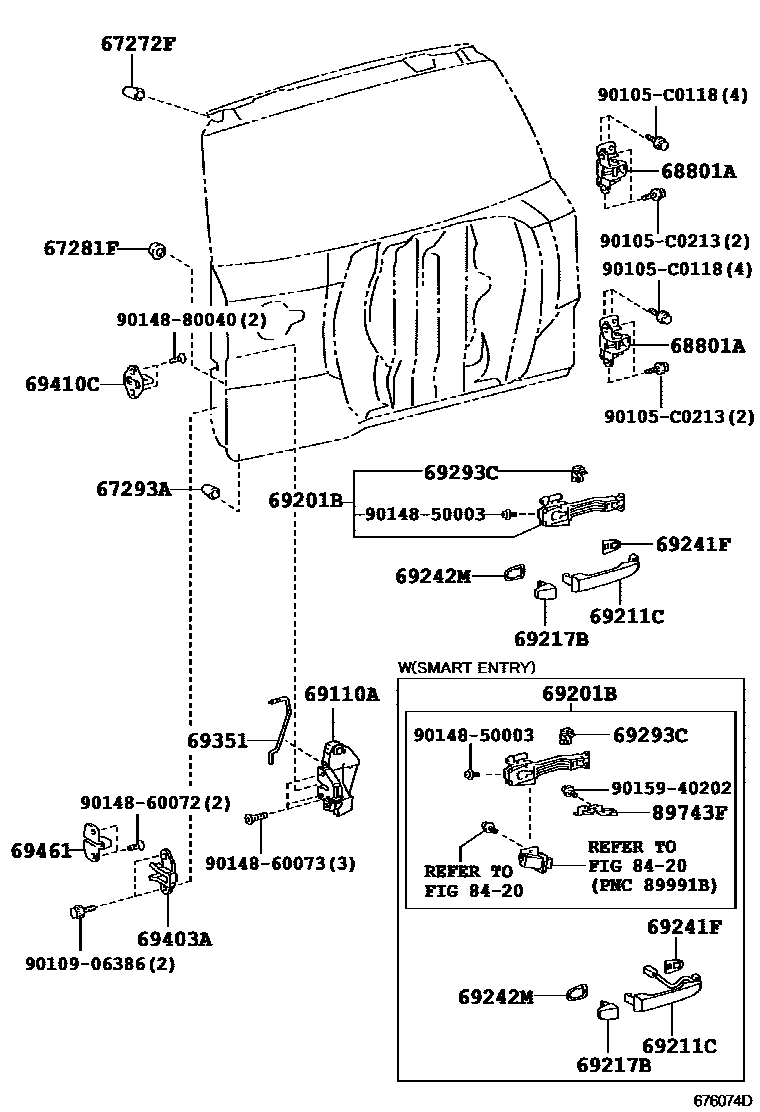

Toyota RAV4 背门锁和合页 — Figure 6762
Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67272F | No. 2 rear door stop buffer pad | 90541-09108 |
| 67281F | Back door lower block | 67282-0R020 |
| 67293A | Back door stop cushion | 67293-0R020 |
| 68801A | Back door upper hinge sub-assembly | 68801-0R020 |
| 69110A | Rear door lock assembly with motor | 69110-0R020 · 69110-0R021 |
| 69201B | Rear door outer handle frame sub-assembly | 69201-02100 · 69201-02110 |
| 69241F | Car door outer handle pad | 69241-02070 |
| 69242M | Rear door outer handle pad | 69242-02070 |
| 69293C | Rear door handle buckle | 69293-12030 |
| 69351 | Rear door lock lever | 69378-0R020 |
| 69403A | Recessed stop block sub-assembly on the right side of the back door | 69403-60011 |
| 69410C | Back door lock plate assembly | 69410-60010 |
| 69461 | Rear door right side protruding stopper | 69461-60010 |
| 89743F | Electronic key harness bracket | 89743-47010 |
