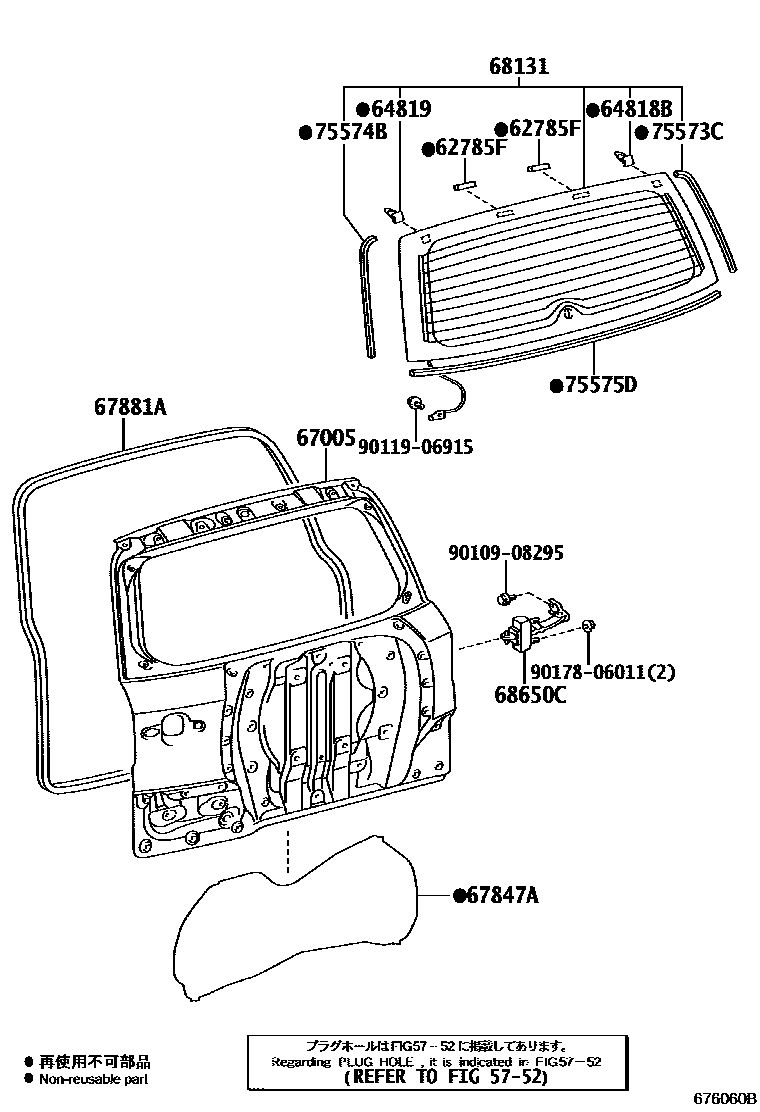

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-0R020 |
| 64818B | No. 1 back door glass spacer | 64818-0R020 |
| 64819 | No. 2 back window glass spacer | 64819-0R020 |
| 67005 | Rear door panel sub-assembly | 67005-0R030 |
| 67750A | Clip (for rear door trim panel) | 90467-09206 |
| 67847A | Rear door access hole cover | 67847-0R030 |
| 67881A | Back door seal | 67881-0R020 |
| 67937C | Clip (for rear door side decorative strip) | 90467-10161 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-0R030 |
| 68650C | Back door right opening limiter assembly | 68650-0R020 |
| 75573C | Protective strip for rear window | 75573-0R020 |
| 75574B | Rear window left outer protective strip | 75574-0R020 |
| 75575D | Protective strip under rear window | 75575-0R020 |
| 76803A | Rear door outer upper right decorative strip sub-assembly | 76813-0R901 |
| 76804 | Upper left decorative strip sub-assembly on the outer side of the back door | 76814-0R901 |
| 76805 | Rear door outer lower right decorative strip sub-assembly | 76815-0R901 |
| 76806 | Lower left decorative strip sub-assembly on the outer side of the back door | 76816-0R901 · 76816-0R902 |
| 76821 | Protective cover for rear door trim strip | 76821-0R030 · 76821-0R040 |
| 76823 | Rear door right side decorative strip protective cover | 76823-0R030 |
| 76824 | Rear door left side decorative strip protective cover | 76824-0R010 |
| 76825C | Rear door exterior decorative strip protective cover | 76825-0R020 |
| 76826A | No. 1 rear door trim strip fixing | 76826-0R020 · 76829-0R030 |
| 76827A | No. 2 rear door trim strip fixings | 76827-42020 |
| 76832A | Rear door left decorative panel cover | 76832-0R901 |
