Toyota RAV4 后门板和后门玻璃 — Figure 6755

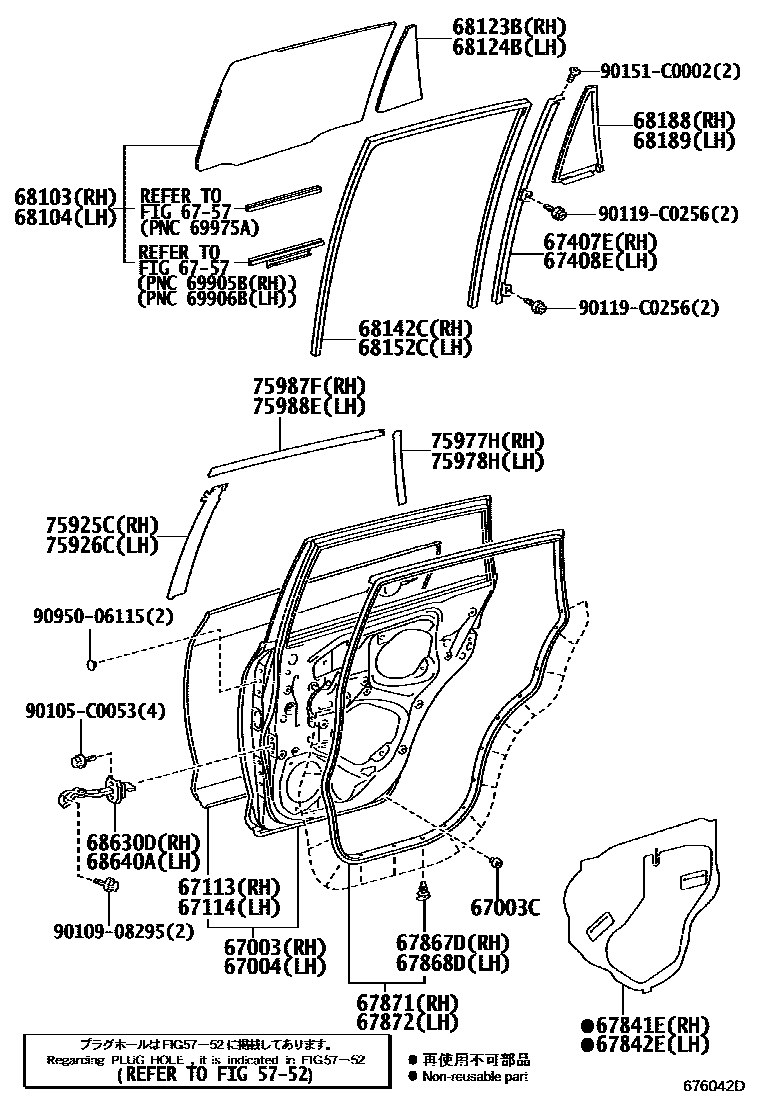

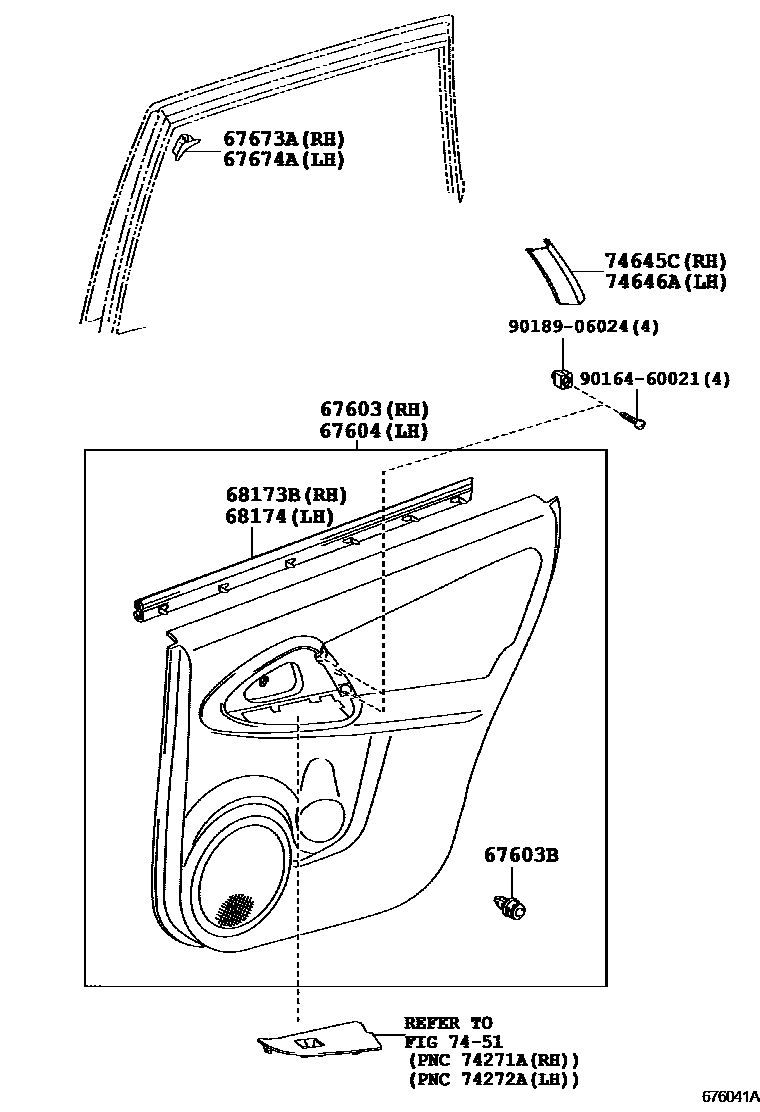

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0R050 · 67003-0R060 · 67003-0R070 |
| 67003C | Rear door panel cushion | 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-0R050 · 67004-0R060 · 67004-0R070 |
| 67113 | Right rear door outer panel | 67113-0R030 · 67113-0R040 · 67113-0R050 |
| 67114 | Left rear door outer panel | 67114-0R030 · 67114-0R040 · 67114-0R050 |
| 67407E | Right rear door window divider sub-assembly | 67407-0R020 |
| 67408E | Left rear door window divider sub-assembly | 67408-0R020 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-0R010 |
| 67674A | Left rear door frame decorative strip | 67674-0R010 |
| 67841E | Right rear door access hole cover | 67841-0R020 |
| 67842E | Left rear door access hole cover | 67842-0R020 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-0R020 |
| 67872 | Left rear door sealing strip | 67872-0R020 |
| 68103 | Right rear door glass sub-assembly | 68103-0R030 |
| 68104 | Left rear door glass sub-assembly | 68104-0R030 |
| 68123B | Right rear door corner window glass | 68123-0R030 |
| 68124B | Left rear door corner window glass | 68124-0R030 |
| 68142C | Right rear door glass lift slot | 68142-0R020 |
| 68152C | Left rear door glass lift slot | 68152-0R020 |
| 68173B | Right rear door glass inner sealing strip | 68173-0R020 |
| 68174 | Left rear door glass inner sealing strip | 68174-0R020 |
| 68188 | Right rear door corner window seal | 68188-0R020 |
| 68189 | Left rear door corner window seal | 68189-0R020 |
| 68630D | Right rear door opening limiter assembly | 68630-0R020 |
| 68640A | Left rear door opening limiter assembly | 68640-0R020 |
| 75925C | No. 3 right side light-blocking film | 75925-0R020 |
| 75926C | No. 3 left shading film | 75926-0R020 |
| 75977H | Right rear door outer lower trim strip | 75977-0R020 |
| 75978H | Left rear door outer lower trim strip | 75978-0R020 |
| 75987F | Right rear door outer trim | 75987-0R040 |
| 75988E | Left rear door outer trim | 75988-0R040 |
