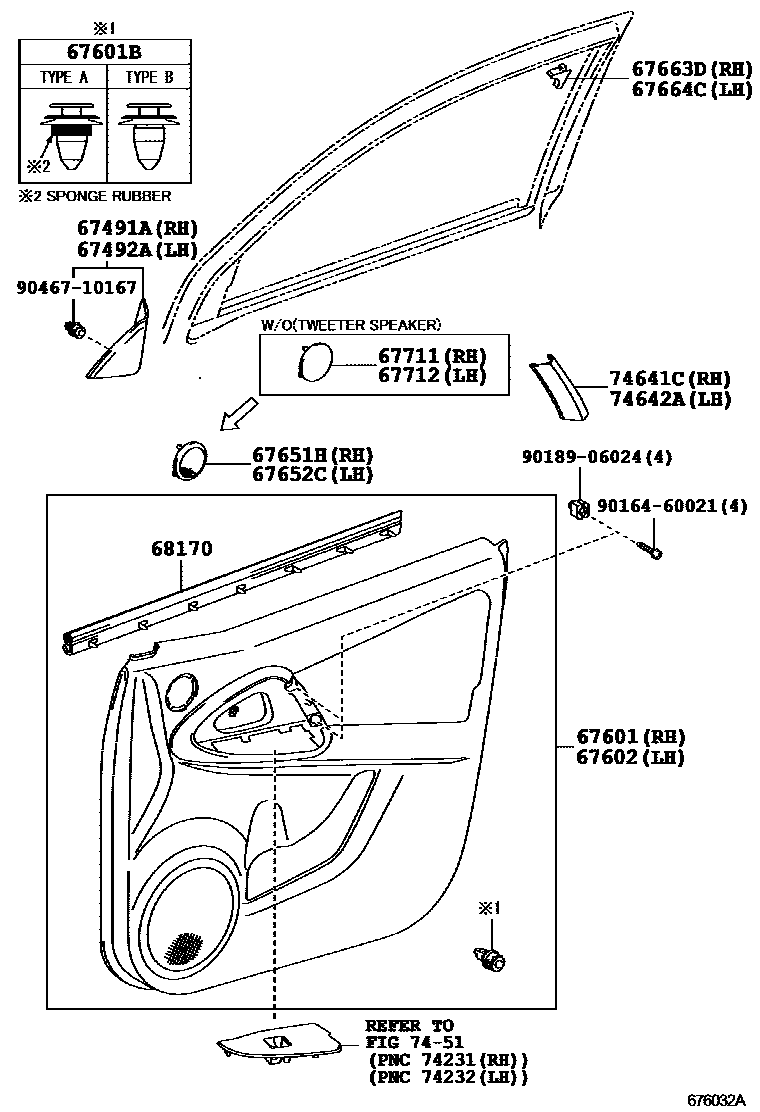

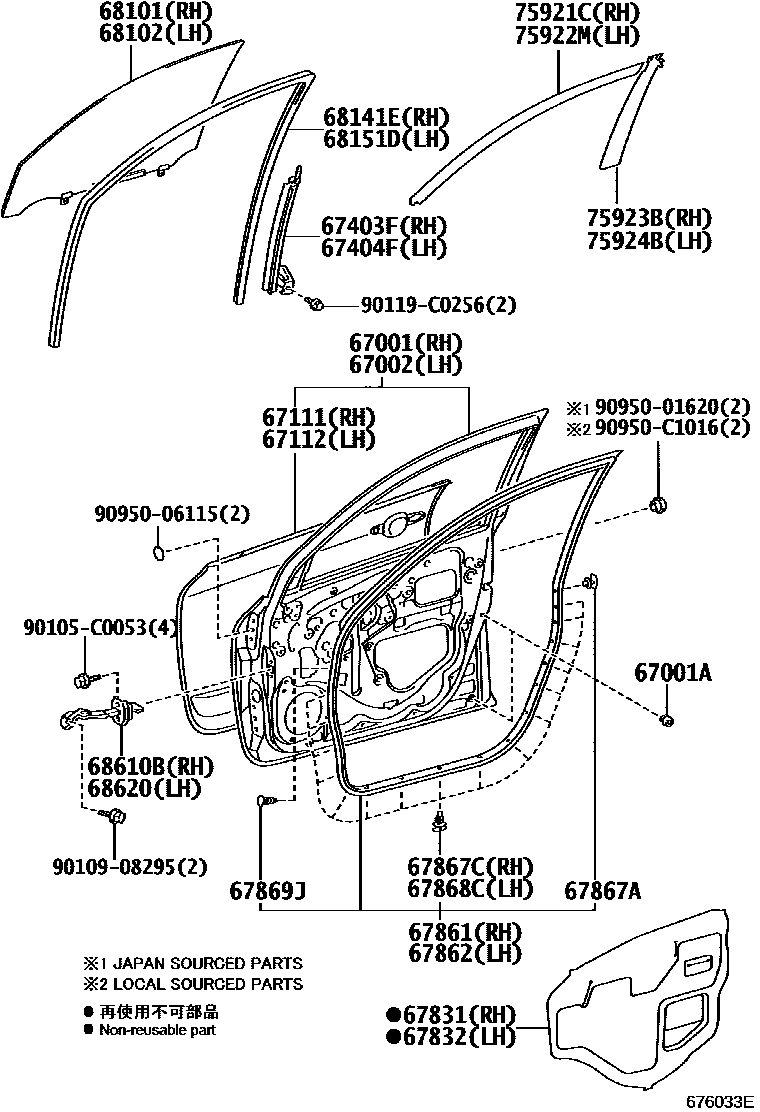

Toyota RAV4 前门板和前门玻璃 — Figure 6751
Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0R030 · 67001-0R040 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-0R030 · 67002-0R040 |
| 67111 | Outer right front door panel | 67111-0R020 · 67111-0R030 |
| 67112 | Outer left front door panel | 67112-0R020 · 67112-0R030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0R020 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0R020 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-0R020 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-0R020 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-10161 |
| 67663D | Right door frame decorative strip | 67663-0R020 |
| 67664C | Left door frame decorative strip | 67664-0R020 |
| 67831 | Right front door access hole cover | 67831-0R020 |
| 67832 | Left front door access hole cover | 67832-0R020 |
| 67861 | Right front door seal | 67861-0R020 |
| 67862 | Left front door seal | 67862-0R020 |
| 67867A | Door seal strip clip (for front door) | 90467-04034 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-0R020 · 68101-0R021 |
| 68102 | Left front door glass sub-assembly | 68102-0R020 · 68102-0R021 |
| 68141E | Right front door glass lift channel | 68141-0R020 |
| 68151D | Left front door glass lift channel | 68151-0R020 |
| 68170 | Front door glass inner sealing strip assembly | 68171-0R020 · 68172-0R020 |
| 68610B | Right front door opening limiter assembly | 68610-0R020 |
| 68620 | Left front door opening limiter assembly | 68620-0R020 |
| 75921C | No. 1 right side light-shielding film | 75921-0R020 |
| 75922M | No. 1 left shading film | 75922-0R020 |
| 75923B | No. 2 right side light-shielding film | 75923-0R020 |
| 75924B | No. 2 left shading film | 75924-0R020 |
