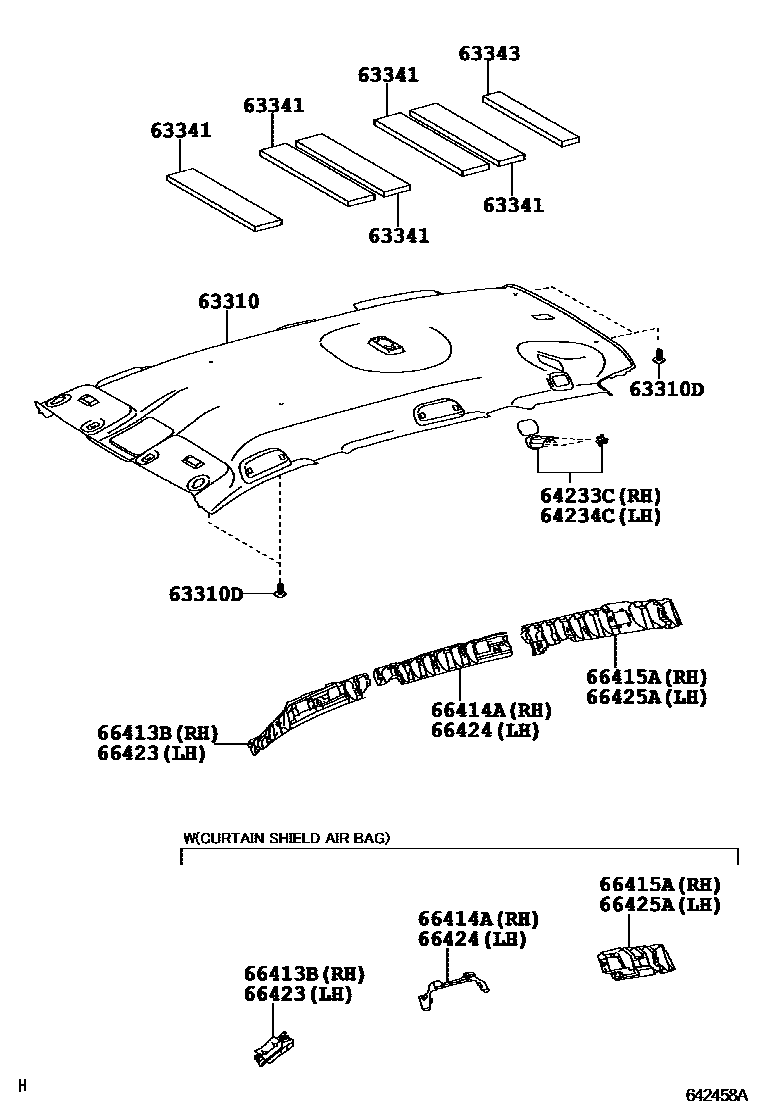

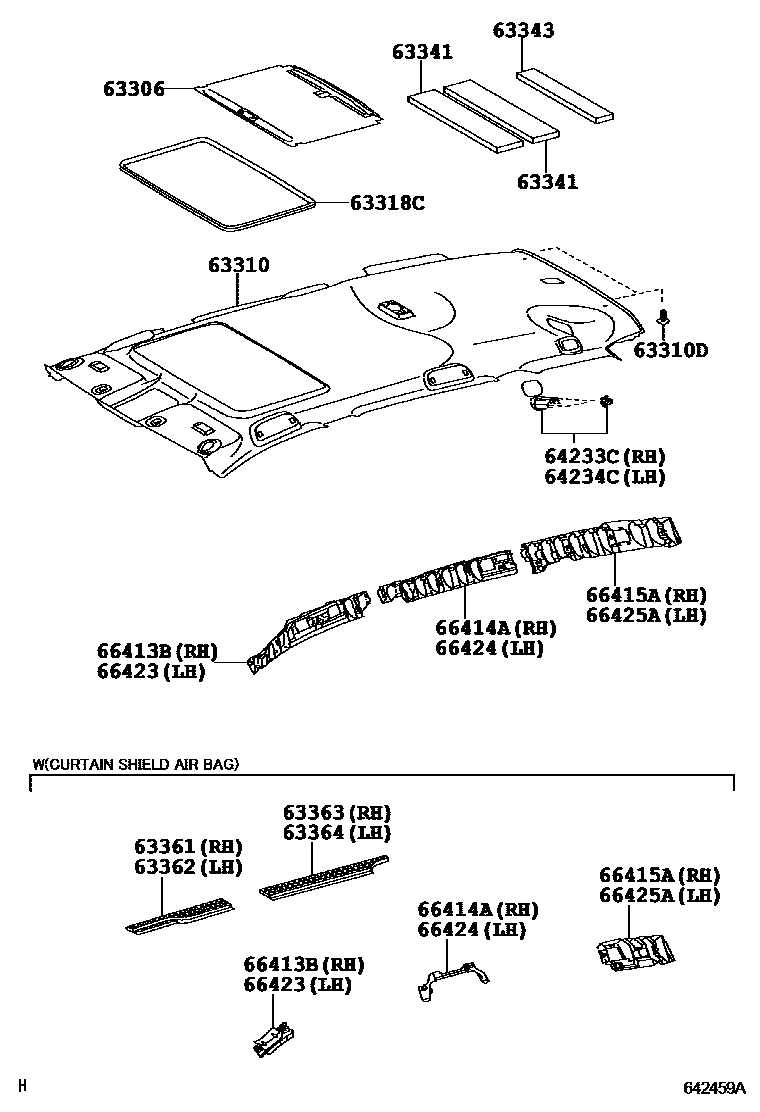

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0R020 |
| 63343 | No. 3 roof muffler pad | 63343-0R020 |
| 63361 | Headlining bracket No. 1 | 63361-0R030 |
| 63362 | Headlining bracket No. 2 | 63362-0R030 |
| 63363 | No. 3 roof lining bracket | 63363-0R030 |
| 63364 | No. 4 roof lining bracket | 63364-0R030 |
| 66413B | Right front longitudinal member spacer | 66413-0R040 · 66413-42120 |
| 66414A | Right rear longitudinal member spacer | 66414-0R040 · 66414-42120 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-0R040 · 66415-42090 |
| 66423 | Left front longitudinal member spacer | 66423-0R040 · 66423-42120 |
| 66424 | Left rear longitudinal member spacer | 66424-0R040 · 66424-42100 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-0R040 · 66425-42070 |
