Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0R903 · 63102-0R904 |
| 63105A | Back door opening frame sub-assembly | 63105-0R020 |

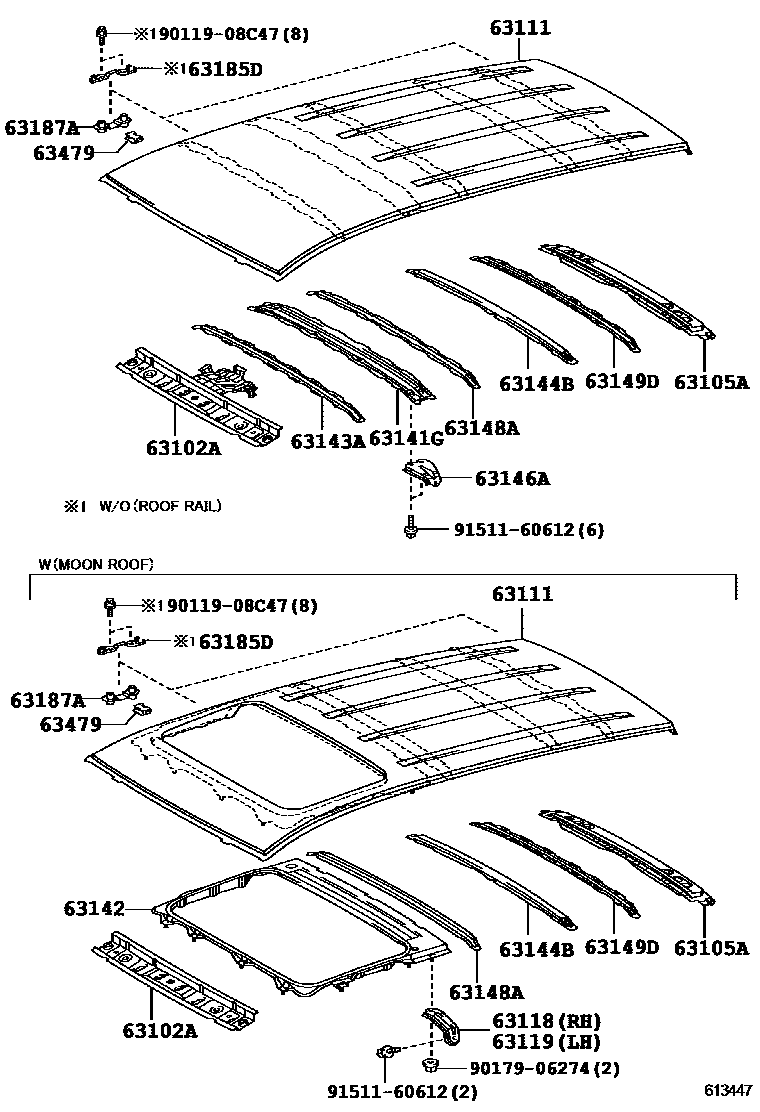

| 63111 | roof panel | 63111-42160 · 63111-42180 |
| 63118 | Right roof panel bracket | 63118-0R020 |
| 63119 | Left roof panel bracket | 63118-0R020 |
| 63141G | No. 1 roof panel reinforcement | 63141-0R020 |
| 63142 | No. 2 roof panel reinforcement | 63142-0R902 |
| 63143A | Roof panel reinforcement | 63143-0R020 |
| 63144B | No. 4 roof panel reinforcement | 63144-0R020 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-0R020 |
| 63148A | No. 7 roof panel reinforcement | 63148-0R030 · 63148-0R040 |
| 63149D | No. 8 roof panel reinforcement | 63149-0R020 |
| 63185D | Front roof rack bracket | 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-42010 |

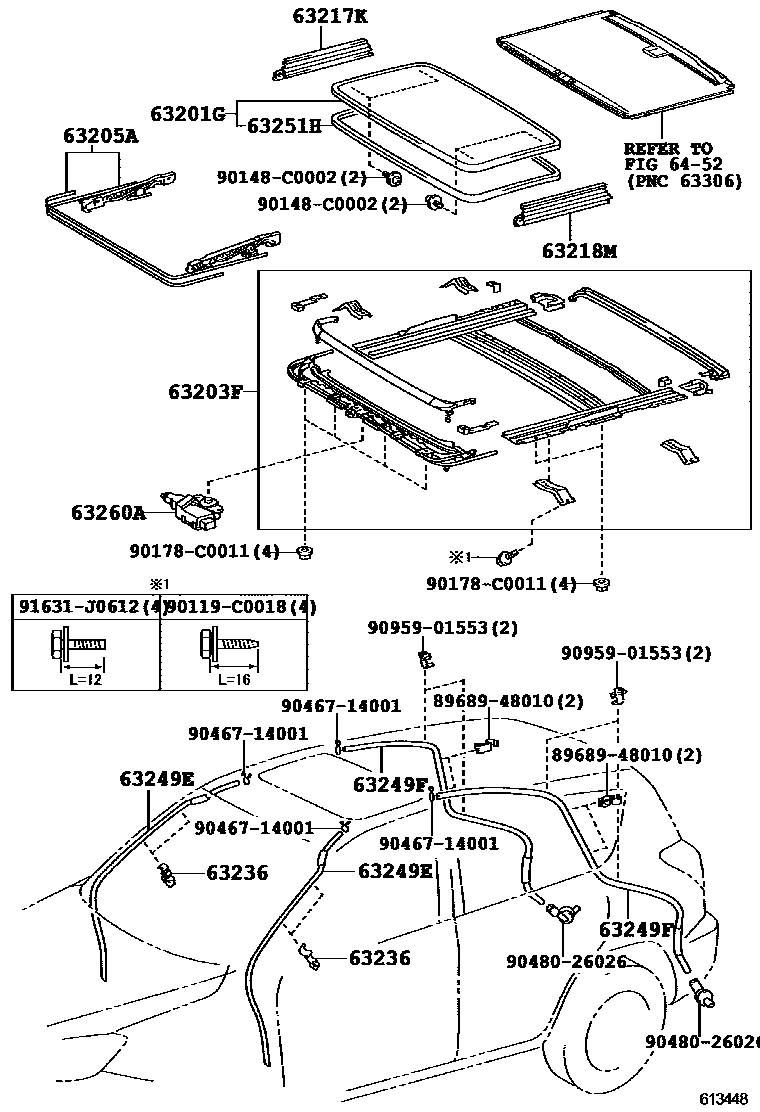

| 63201G | Sliding sunroof glass sub-assembly | 63201-0R020 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0R020 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-0N010 |
| 63217K | Right sliding sunroof trim | 63217-0N010 |
| 63218M | Sliding sunroof trim, left | 63218-0N010 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30010 |
| 63249E | Sliding skylight drain hose | 63249-0R010 |
| 63249F | Sliding skylight drain hose | 63249-0R020 |
| 63251H | Sliding skylight seal | 63251-0R010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-0R020 |

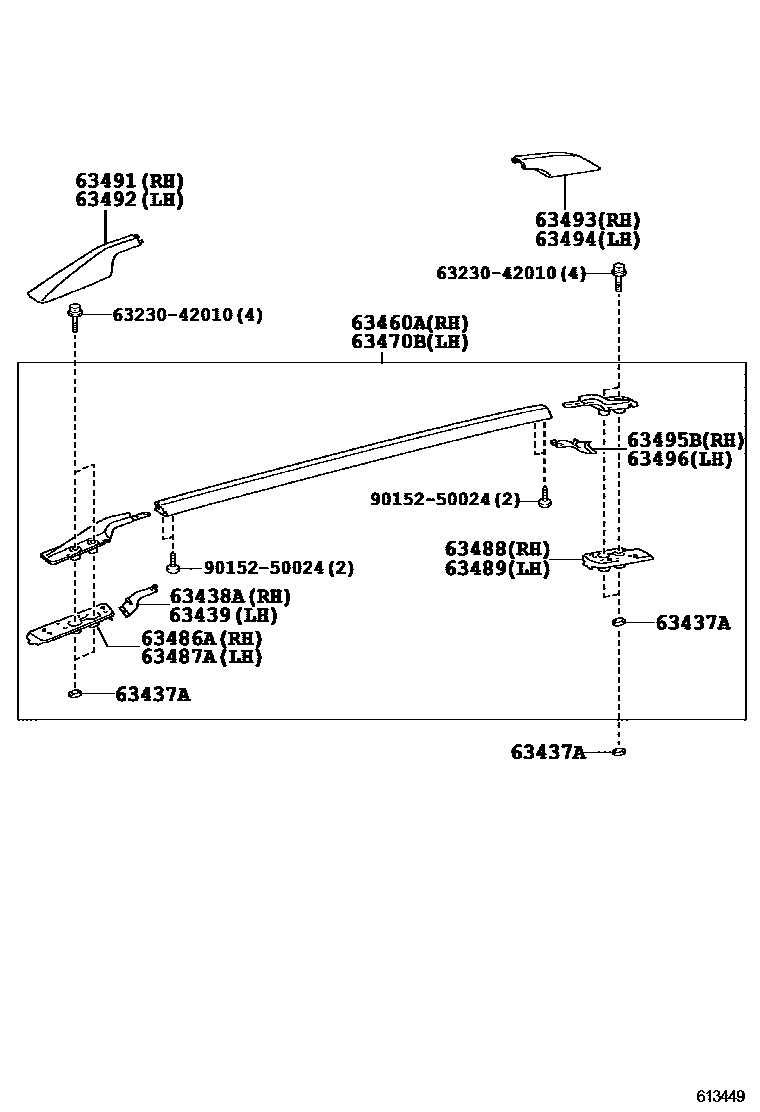

| 63437A | Roof rack No. 2 seal | 63437-0R020 |
| 63479 | Roof rack fixings | 63479-42010 |
| 63486A | Right front roof rack support foot cushion | 63486-0R020 |
| 63487A | Left front roof rack support foot cushion | 63487-0R020 |
| 63488 | Right rear roof rack foot cushion pad | 63488-0R020 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-0R020 |
| 63493 | Right rear roof rack foot cover | 63493-0R020 |
| 63494 | Left rear roof rack leg cover | 63494-0R020 |
