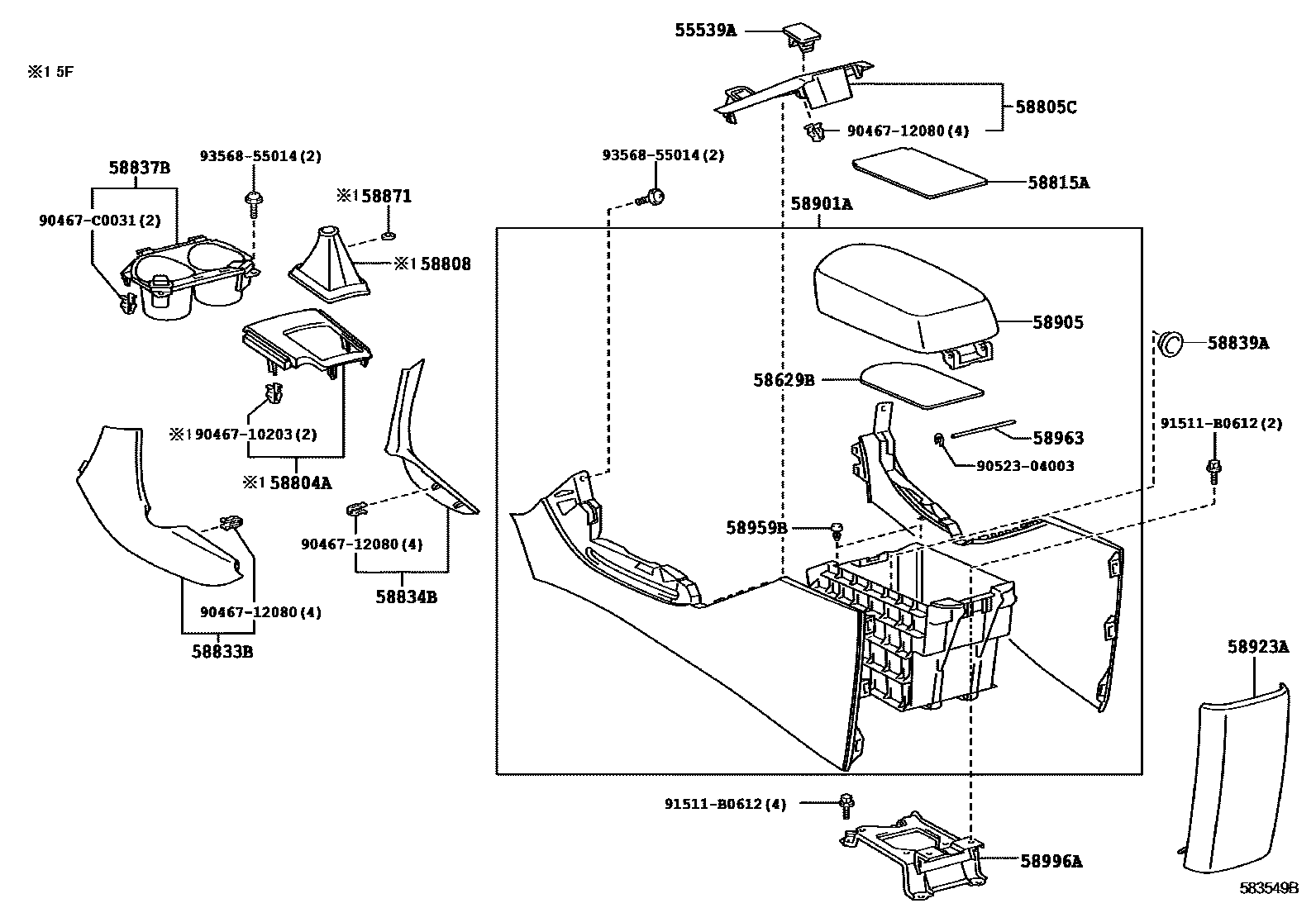

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58629B | center console pad | 58629-0R020 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0R080 |
| 58808 | Shift hole cover sub-assembly | 58808-0R010 |
| 58815A | Armrest box felt pad | 58815-0R020 |
| 58839A | Armrest box hole cover | 90950-01959 |
| 58871 | Armrest box cushion | 58871-0R010 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58963 | Armrest box lid hinge shaft | 58963-0R020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R020 |
