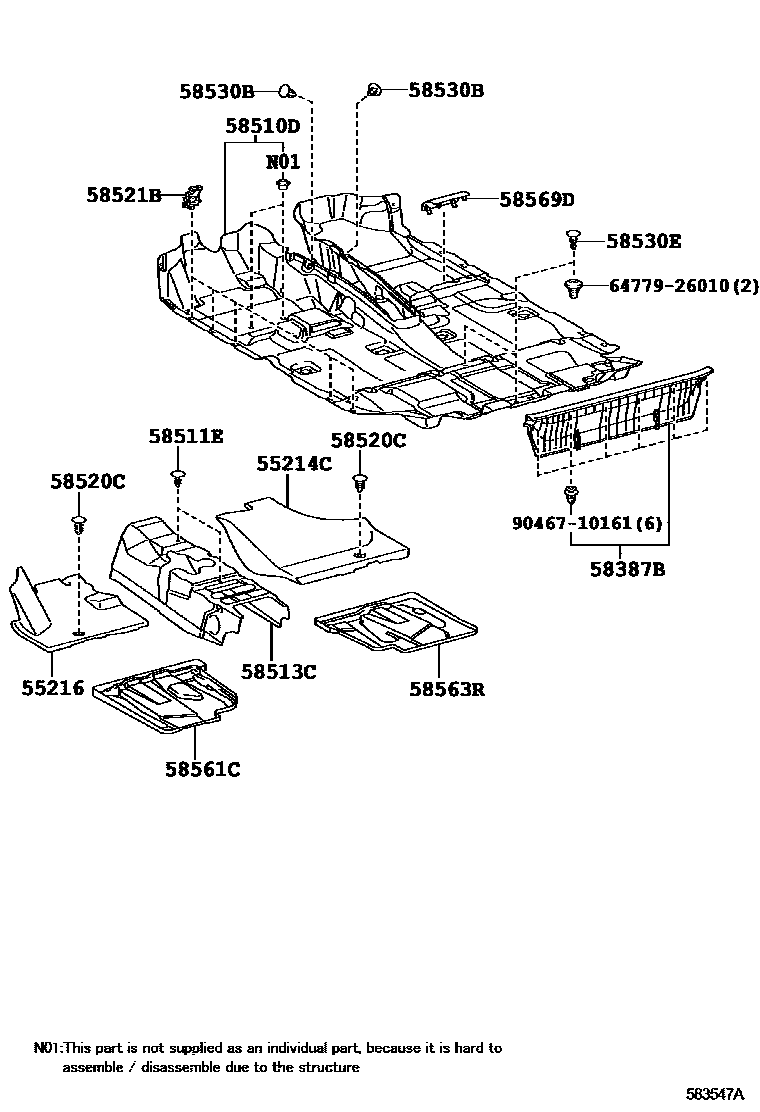

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0R020 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-0R020 |
| 58513C | Front floor center mat | 58513-0R020 |
| 58521B | carpet hook | 58521-0R020 |
| 58530B | Clip (for front carpet) | 90467-09050 · 90467-C0006 |
| 58561C | Front floor silencer No. 1 | 58561-0R020 |
| 58563R | Front floor silencer No. 3 | 58563-0R020 |
