Toyota RAV4 前地板和前地板梁 — Figure 5851

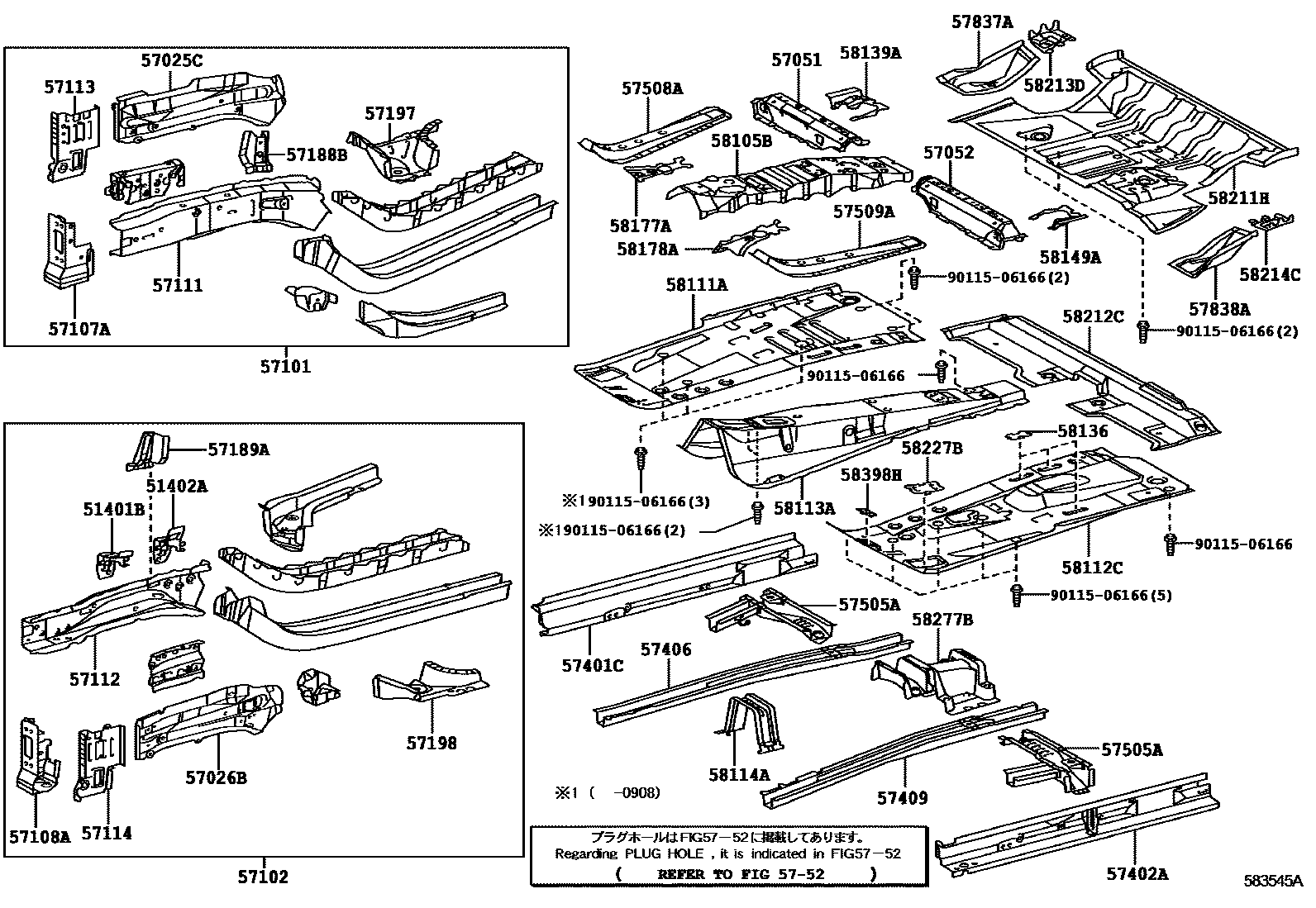

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 1 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51401B | Engine front mounting bracket sub-assembly | 51401-0R020 |
| 51402A | Engine left front mounting bracket sub-assembly | 51402-0R020 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-02040 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-02040 |
| 57051 | Front floor right cross member sub-assembly | 57051-0R020 · 57051-0R021 |
| 57052 | Front floor left cross member sub-assembly | 57052-0R020 · 57052-0R021 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0R020 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0R020 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-0R020 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-0R020 |
| 57111 | Right front longitudinal beam | 57111-02130 |
| 57112 | Left front longitudinal beam | 57112-02120 |
| 57113 | Right front longitudinal beam extension | 57113-0R020 |
| 57114 | Left front longitudinal beam extension | 57114-0R020 |
| 57188B | Right front longitudinal beam to spring bracket corner plate | 57188-0R020 |
| 57189A | Left front longitudinal beam to spring bracket corner plate | 57189-0R020 |
| 57197 | Right front torsion box section piece | 57197-0R020 |
| 57198 | Left front anti-torsion box section piece | 57198-0R020 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-0R020 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-0R020 |
| 57406 | Main floor right longitudinal beam sub-assembly | 57406-0R020 |
| 57409 | Main floor left longitudinal beam sub-assembly | 57409-0R020 |
| 57505A | Front underfloor reinforcement sub-assembly | 57505-0R020 · 57506-0R020 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-0R020 |
| 57509A | Front floor left reinforcement sub-assembly | 57509-0R020 |
| 57837A | Rear No. 1 seat support No. 3 rear reinforcement | 57837-0R020 |
| 57838A | Rear No. 1 seat support No. 4 rear reinforcement | 57838-0R020 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-0R020 · 58105-0R021 |
| 58111A | Front floor right bottom panel | 58111-0R020 · 58111-0R021 |
| 58112C | Front floor left bottom panel | 58112-0R020 · 58112-0R021 |
| 58113A | front floor center panel | 58113-0R020 |
| 58114A | front floor reinforcement | 58114-0R020 · 58114-0R021 |
| 58136 | Front floor hole cover | 58136-0R010 |
| 58139A | Front floor right rear side panel | 58139-0R020 |
| 58149A | Front floor left rear side panel | 58149-0R020 · 58149-0R021 |
| 58177A | Front floor right extension | 58177-0R020 |
| 58178A | Front floor left extension | 58178-0R020 |
| 58211H | central floor base | 58211-0R020 · 58211-0R021 |
| 58212C | Center floor front floor | 58202-0R020 |
| 58213D | Central floor reinforcement | 58213-0R020 |
| 58214C | Center floor left reinforcement | 58214-0R020 |
| 58227B | Front floor right panel | 58227-0R020 |
| 58277B | Drive shaft center bracket reinforcement | 58209-0R020 |
| 58398H | No. 1 floor under cover | 58398-0R020 |
