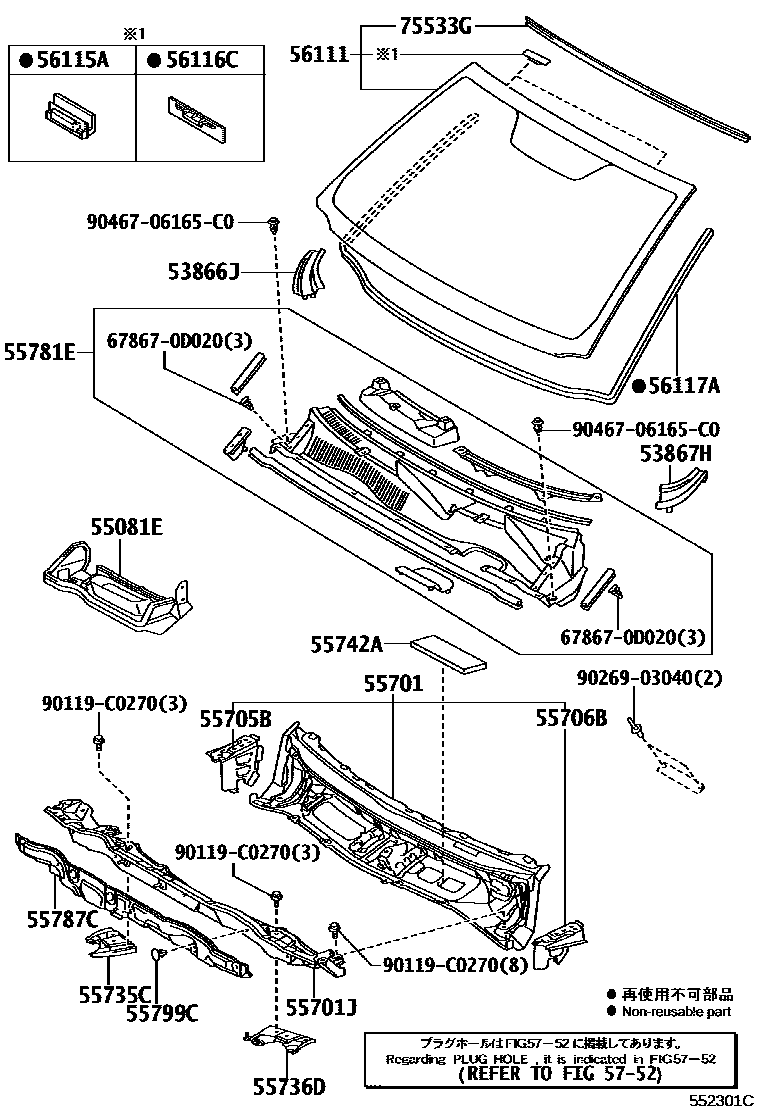

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-0R020 |
| 53867H | Left front fender to cowl side seal | 53867-0R020 |
| 55081E | Front ventilation device shell sub-assembly | 55081-0R020 |
| 55701 | Front apron sub-assembly | 55700-0R020 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0R020 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0R020 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0R020 |
| 55735C | Right front wall body-mounted reinforcement | 55735-0R020 |
| 55736D | Left front wall body mounting reinforcement | 55736-0R020 |
| 55742A | Heat insulation panel on front wall | 55742-0R020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0R020 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R020 |
| 55799C | Ventilation grille clips on front apron | 90467-09050 · 90467-C0006 |
| 56111 | windshield | 56101-0R030 · 56101-0R040 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-0R020 |
| 75533G | Windshield outer protective strip | 75531-0R010 · 75531-0R020 |
