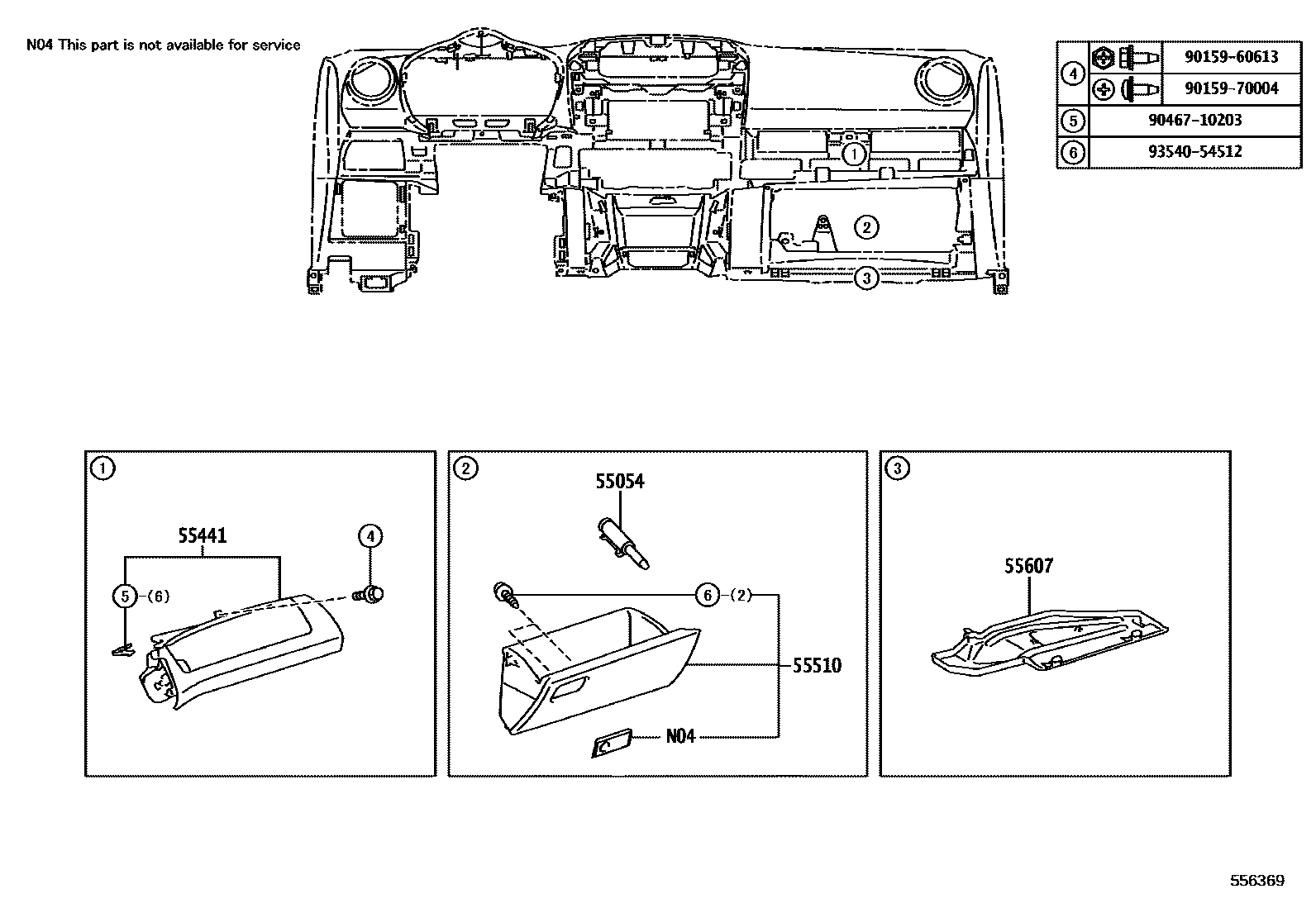

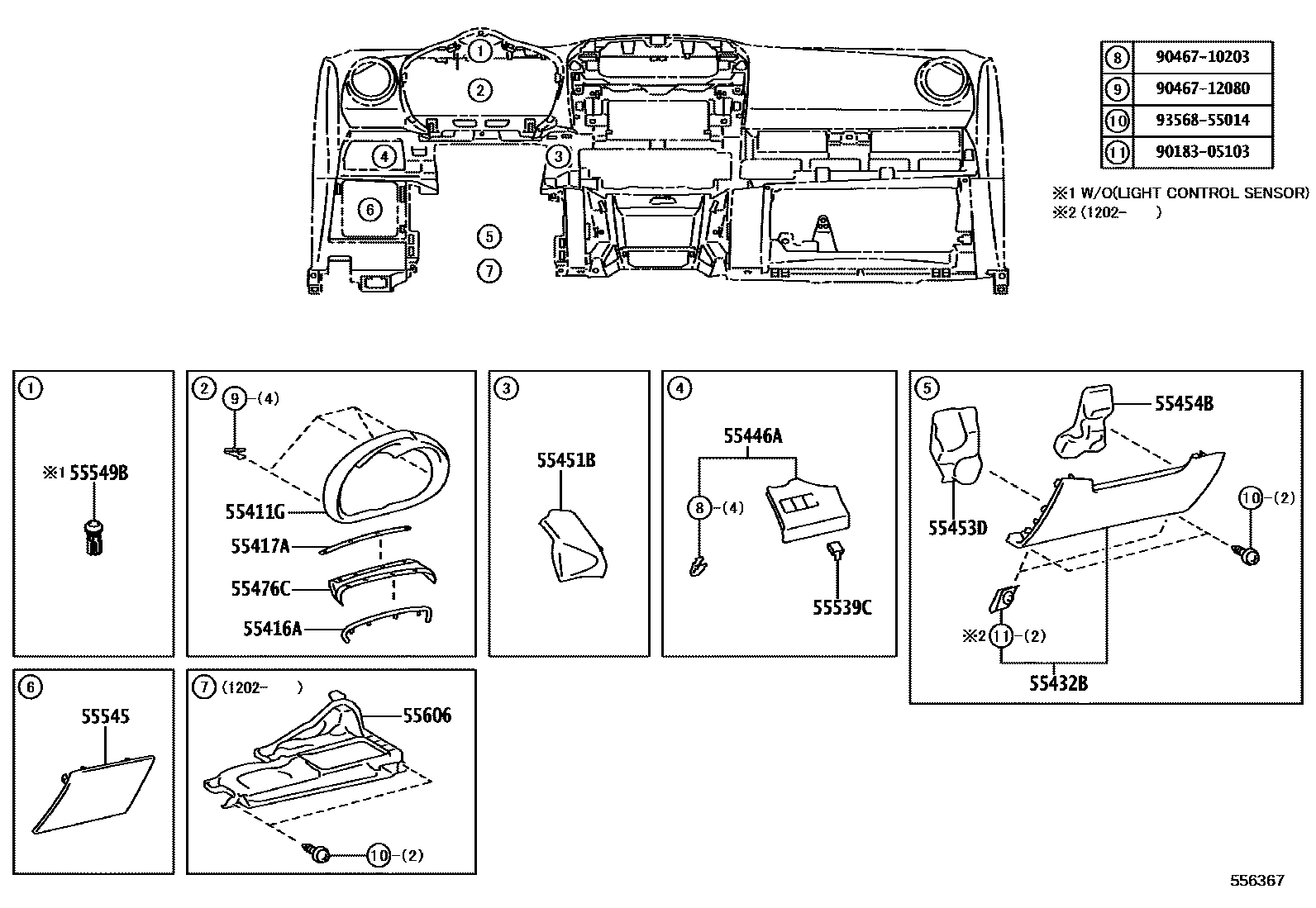

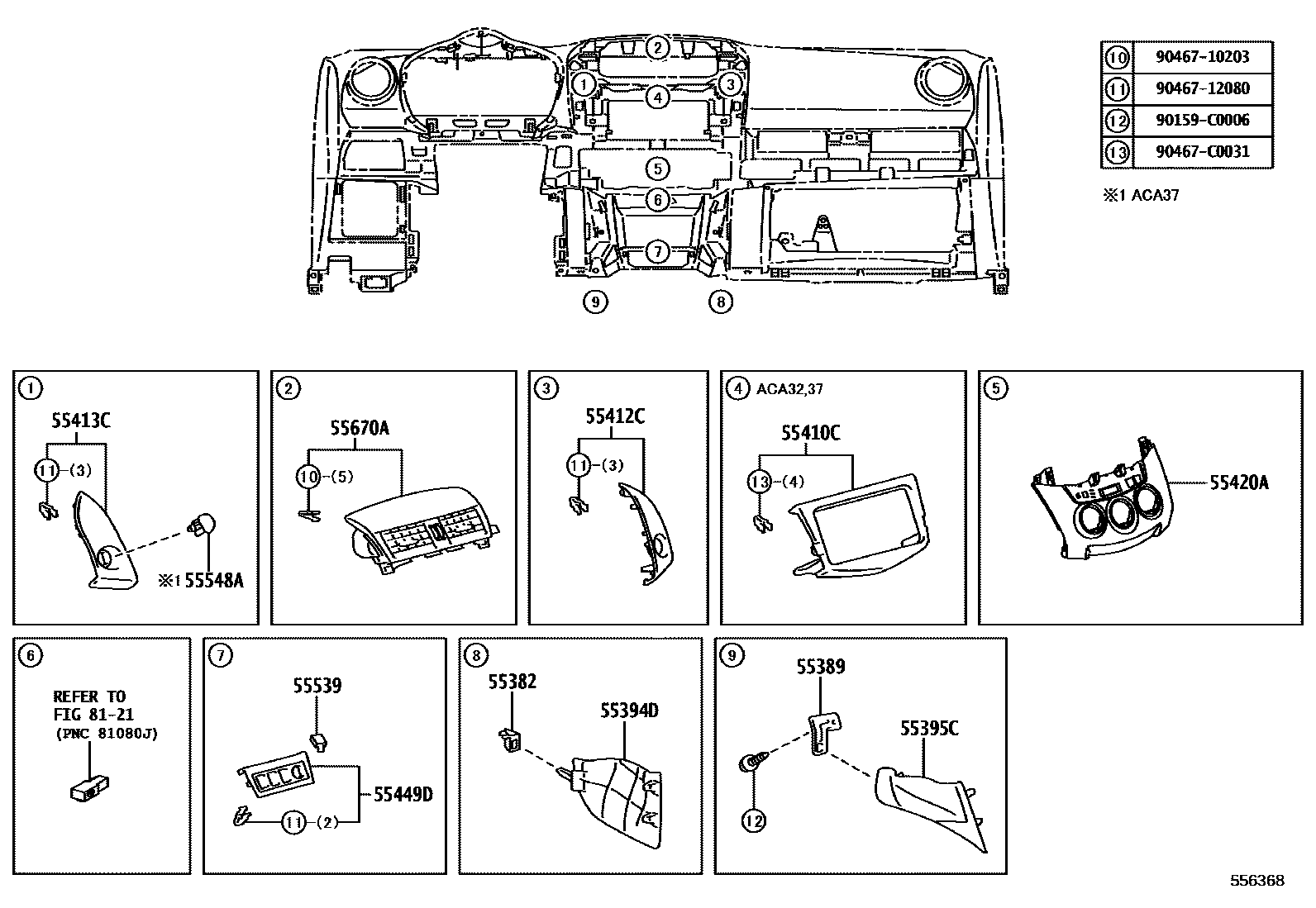

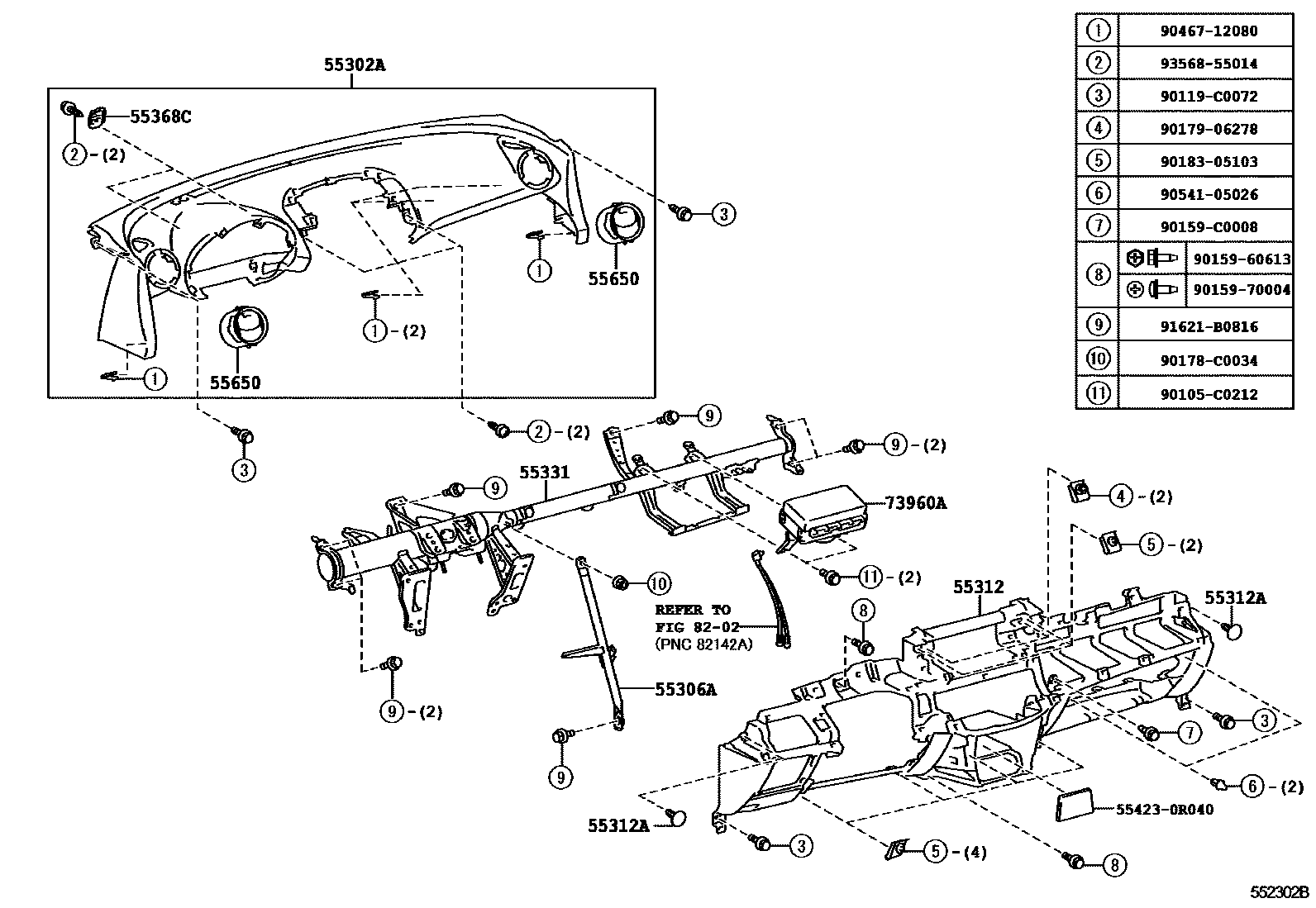

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0R020 |
| 55331 | Dashboard reinforcement | 55330-0R020 |
| 55368C | Instrument mounting bracket | 55368-42010 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02120 |
| 55389 | Console left side mounting bracket | 55389-0R020 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-0R020 |
| 55417A | Instrument cover No.2 fixing piece | 55417-0R020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-0R020 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-0R020 |
| 55476C | Dashboard decorative panel trim parts | 55476-0R020 |
| 55549B | Instrument panel hole cover No. 2 | 55549-0R020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0R020 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0R020 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0R020 |
