Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

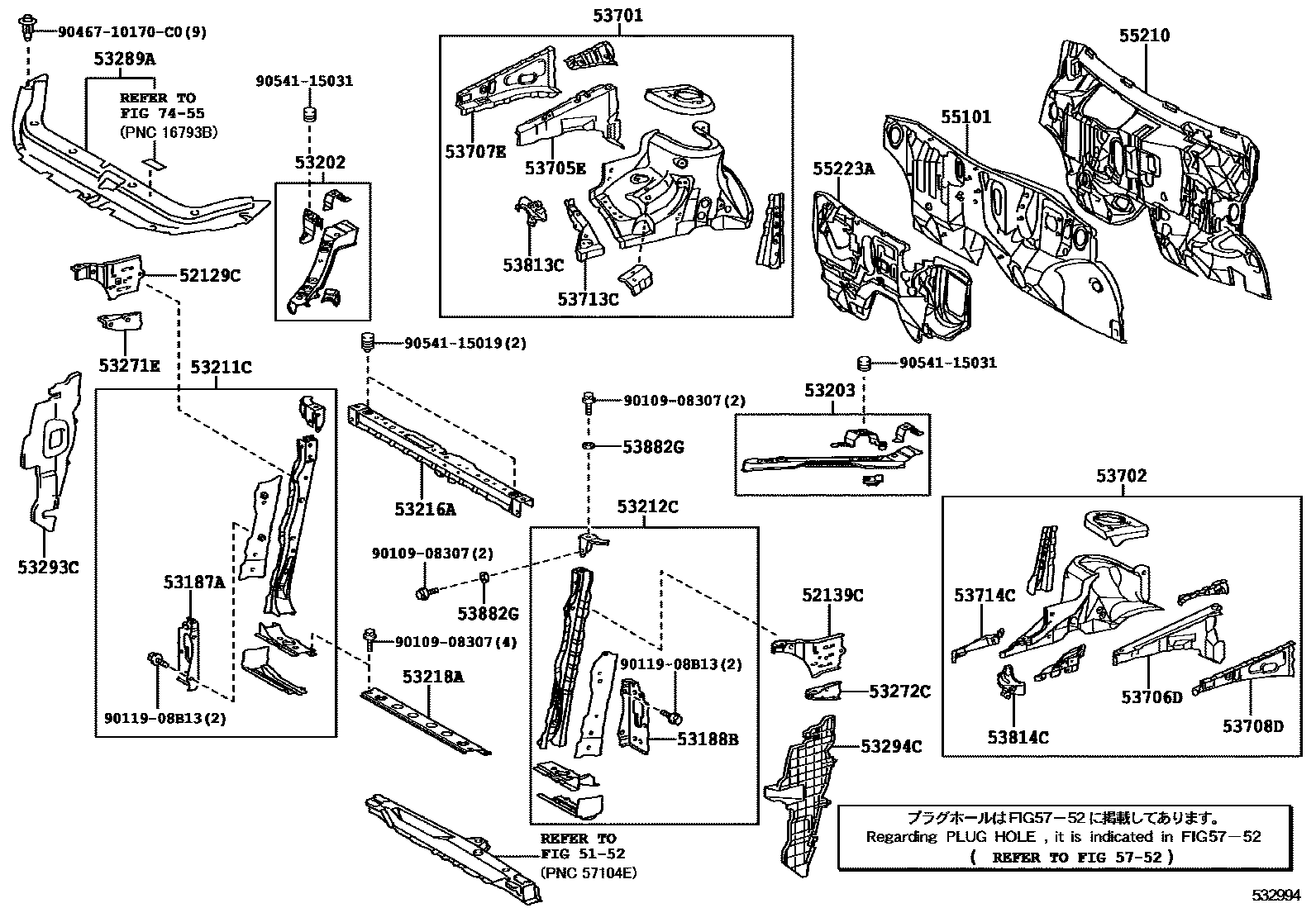

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52129C | Front bumper No. 2 upper right arm | 52129-0R020 |
| 52139C | Front bumper No. 2 left upper arm | 52139-0R020 |
| 53187A | Radiator right side bracket stay | 53187-0R020 |
| 53188B | Radiator left bracket stay | 53188-0R020 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0R020 |
| 53203 | Radiator left bracket sub-assembly | 53203-0R020 |
| 53211C | Radiator right side support | 53211-0R902 |
| 53212C | Radiator left support | 53212-0R902 |
| 53216A | Radiator upper bracket | 53216-0R902 |
| 53218A | Radiator lower support | 53218-0R020 |
| 53271E | Right headlight mounting bracket | 53271-0R020 |
| 53272C | Left headlight mounting bracket | 53272-0R020 |
| 53289A | Radiator bracket opening cover | 53289-0R030 |
| 53293C | Radiator right baffle | 53293-0R020 |
| 53294C | Radiator left baffle | 53294-0R020 |
| 53701 | Right front fender fender sub-assembly | 53701-0R020 |
| 53702 | Left front fender fender sub-assembly | 53702-0R020 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-0R020 · 53705-0R021 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-0R020 · 53706-0R021 |
| 53707E | Fender right fender sub-assembly | 53707-0R020 |
| 53708D | Fender left fender sub-assembly | 53708-0R020 |
| 53713C | Right front fender fender front extension | 53713-0R020 |
| 53714C | Left front fender fender front extension | 53714-0R020 |
| 53813C | Right front fender extension | 53813-0R020 |
| 53814C | Left front fender extension | 53814-0R020 |
| 53882G | front fender seal | 53882-30040 |
| 55101 | Front apron sub-assembly | 55101-0R020 · 55101-0R030 |
| 55210 | Front wall insulation pad assembly | 55210-0R020 |
| 55223A | Front wall outer heat insulation pad | 55223-0R020 |
