Toyota RAV4 radiator grille — Figure 5351

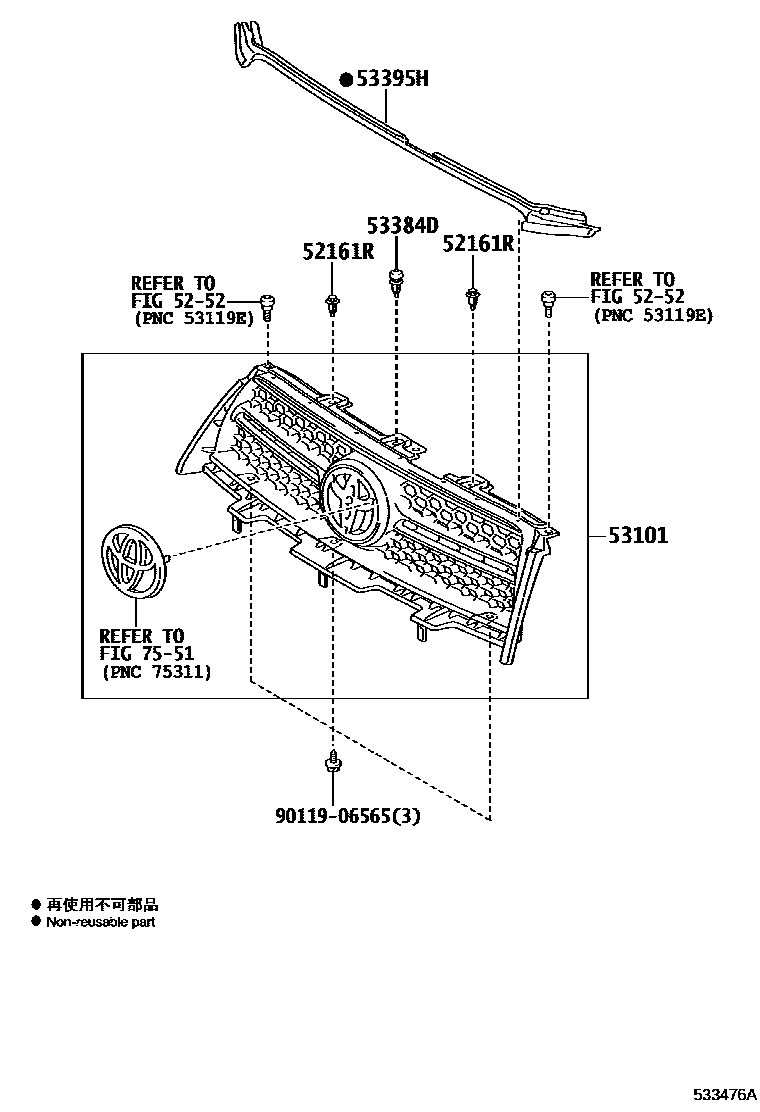

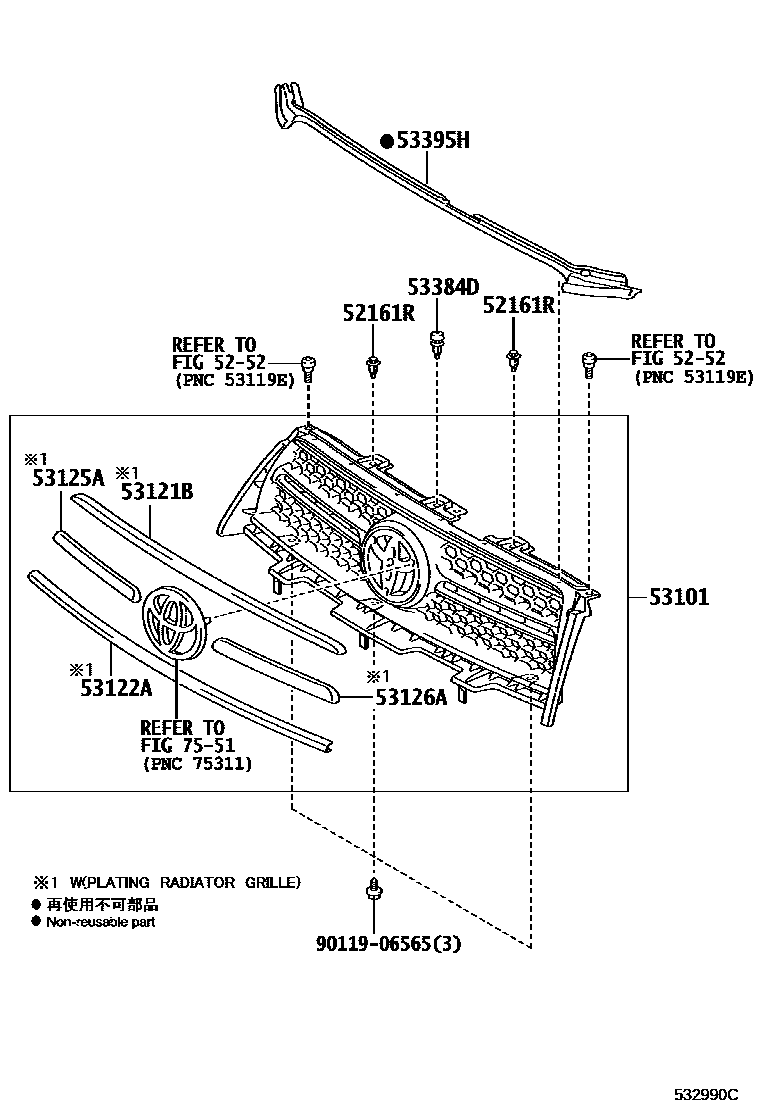

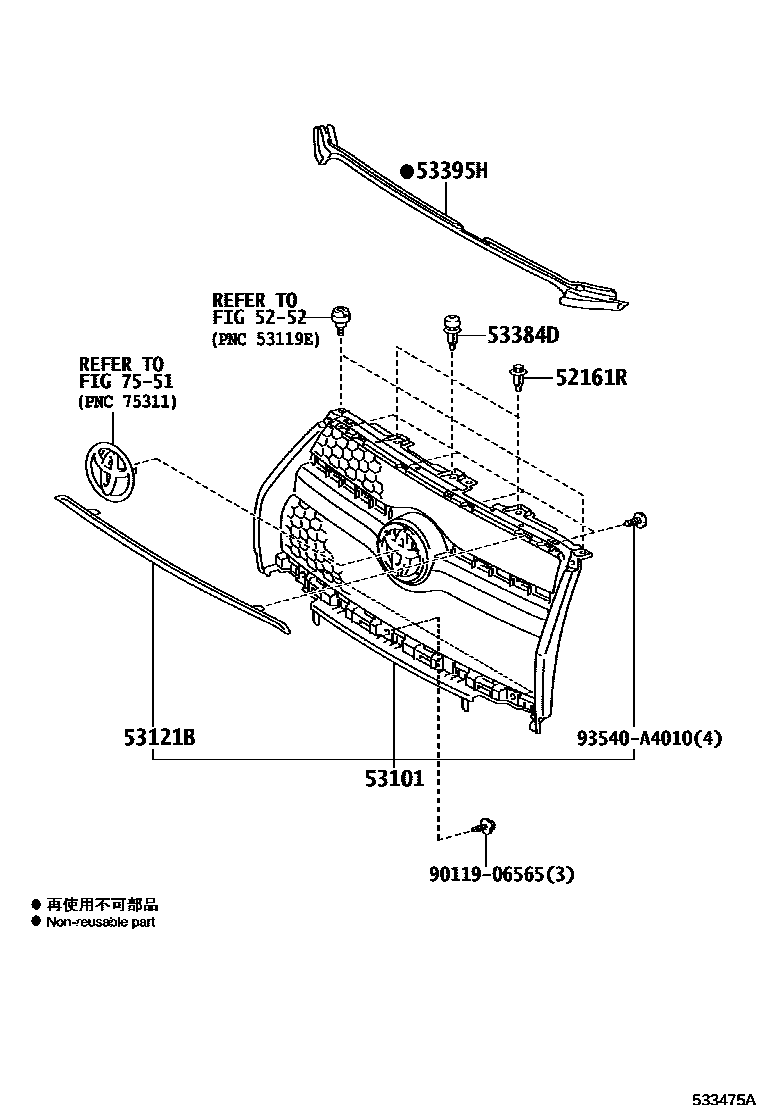

Toyota RAV4 EPC diagram 5351, radiator grille, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02040 |
| 53101 | Radiator grille sub-assembly | 53101-0R070 · 53101-0R080 · 53101-0R090 · 53101-0R110 |
| 53121B | Protective strips on radiator grille | 53121-0R030 · 53121-0R040 |
| 53122A | Radiator grille lower protective strip | 53122-0R030 |
| 53125A | Radiator grille right center protective strip | 53125-0R030 |
| 53126A | Radiator grille left middle protective strip | 53126-0R030 |
| 53384D | Engine cover center cushion | 53384-68010 |
| 53395H | Engine cover to radiator grille seal | 53395-0R020 |
