Toyota RAV4 后保险杠及附件 — Figure 5253

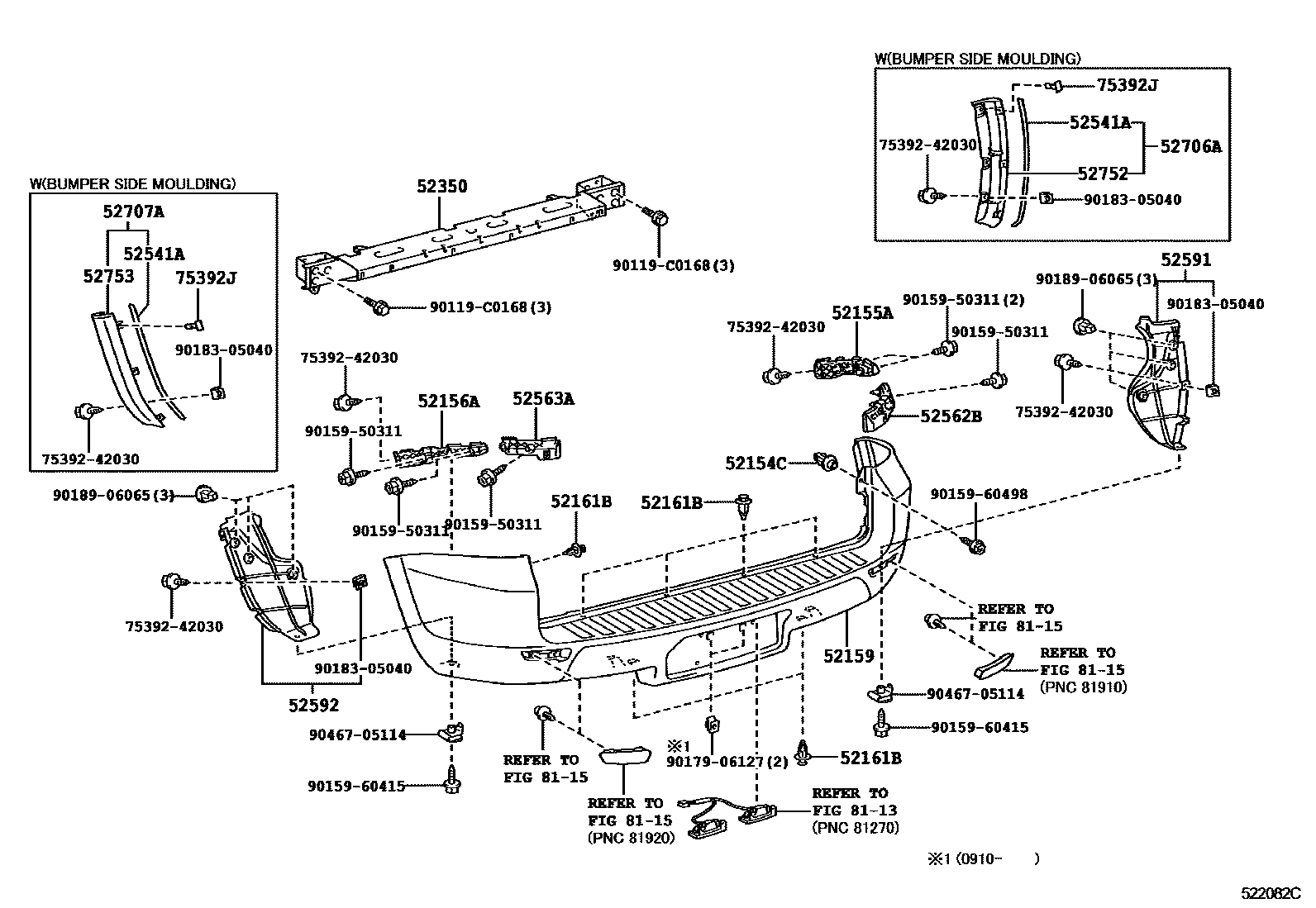

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52154C | Rear bumper bracket No. 1 | 52154-0R020 |
| 52155A | Rear bumper right side bracket | 52155-0R020 |
| 52156A | Rear bumper left bracket | 52156-0R020 |
| 52159 | rear bumper cover | 52159-0R903 · 52159-0R904 · 52159-0R905 · 52159-0R906 · 52159-0R909 · 52159-0R910 · 52159-0R911 |
| 52161B | Rear bumper insert | 52161-02040 |
| 52350 | Rear bumper running board assembly | 52350-0R030 |
| 52541A | rear bumper protector | 52541-0R020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R020 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R020 |
| 52591 | Rear bumper right seal | 52591-0R020 |
| 52592 | Rear bumper left seal | 52592-0R020 |
| 52706A | Rear bumper right side protective strip sub-assembly | 52706-0R902 |
| 52707A | Rear bumper left protection strip sub-assembly | 52707-0R901 |
| 52752 | Rear bumper right side protective strip | 52752-0R902 |
| 52753 | Rear bumper left protective strip | 52753-0R902 |
| 75392J | External protective strip fixings | 75392-0R020 |
