Toyota RAV4 前保险杠及附件 — Figure 5252

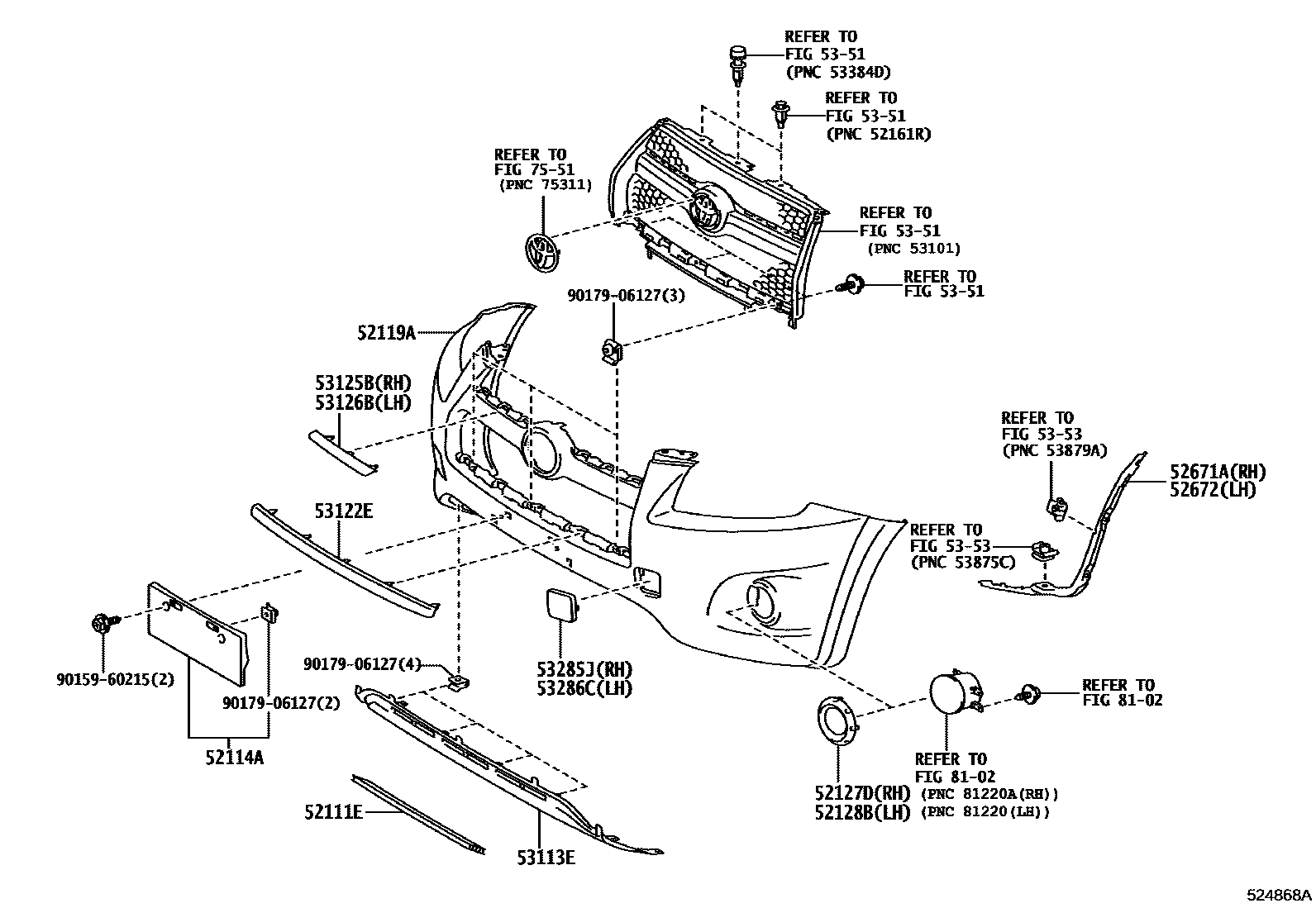

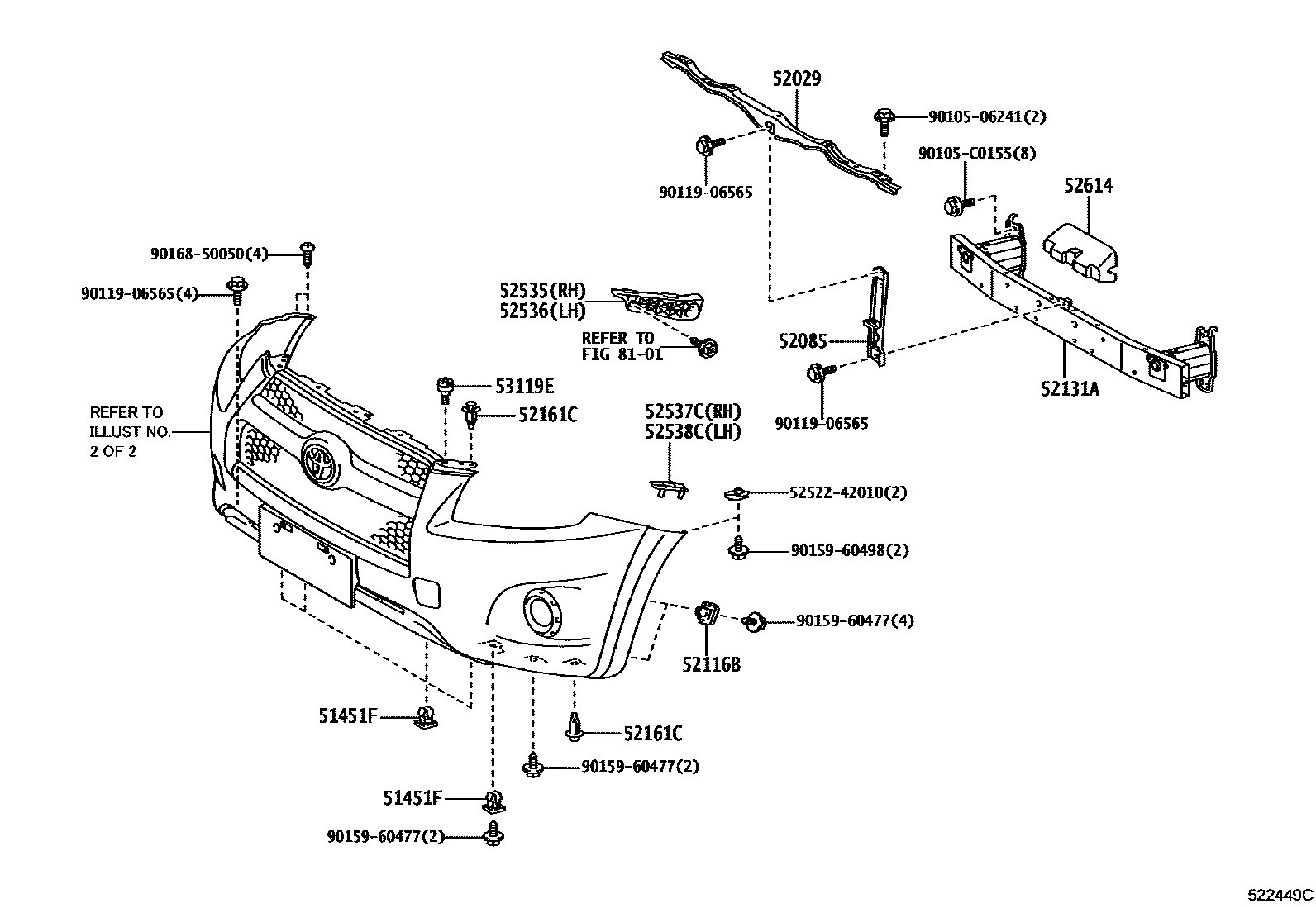

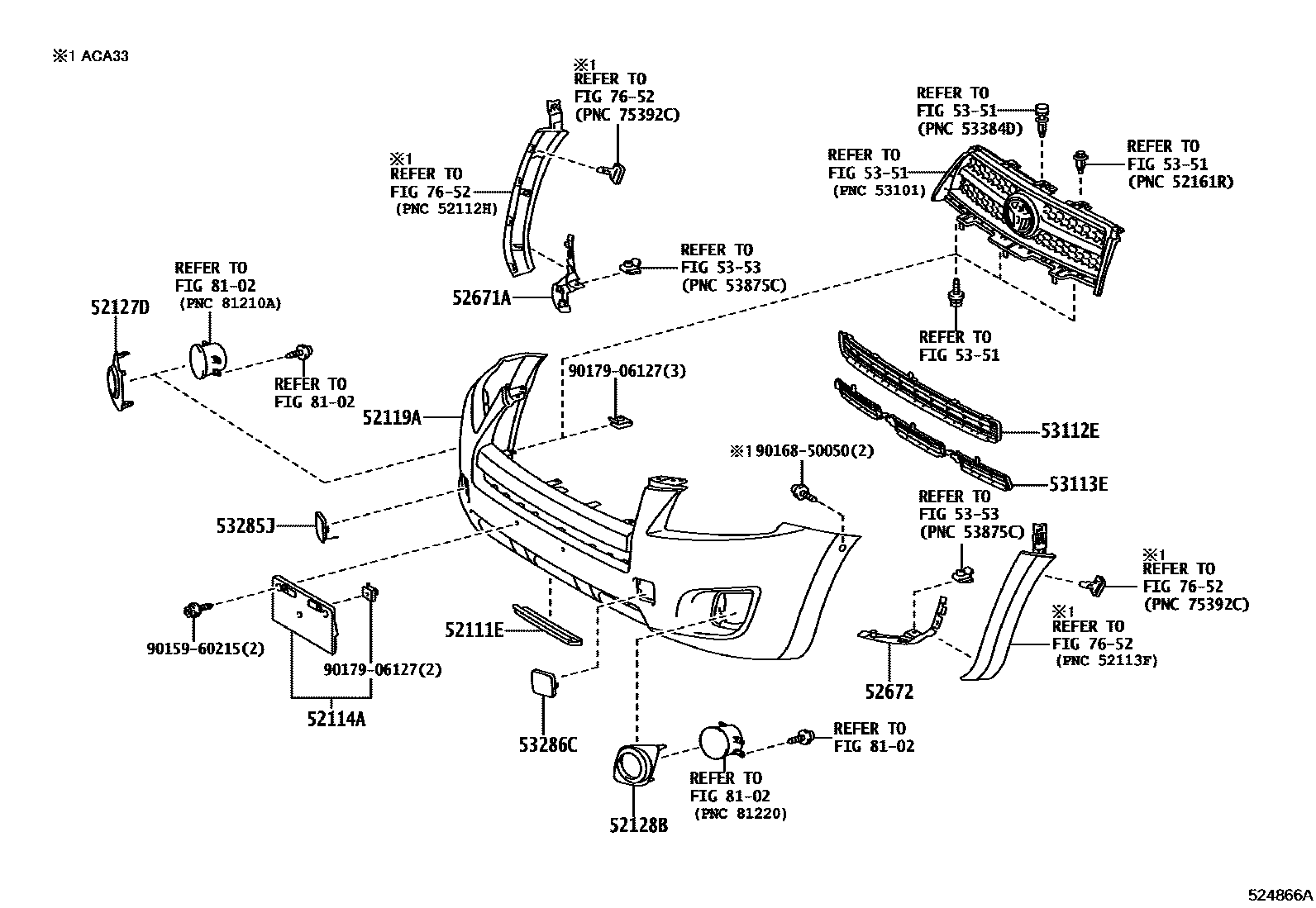

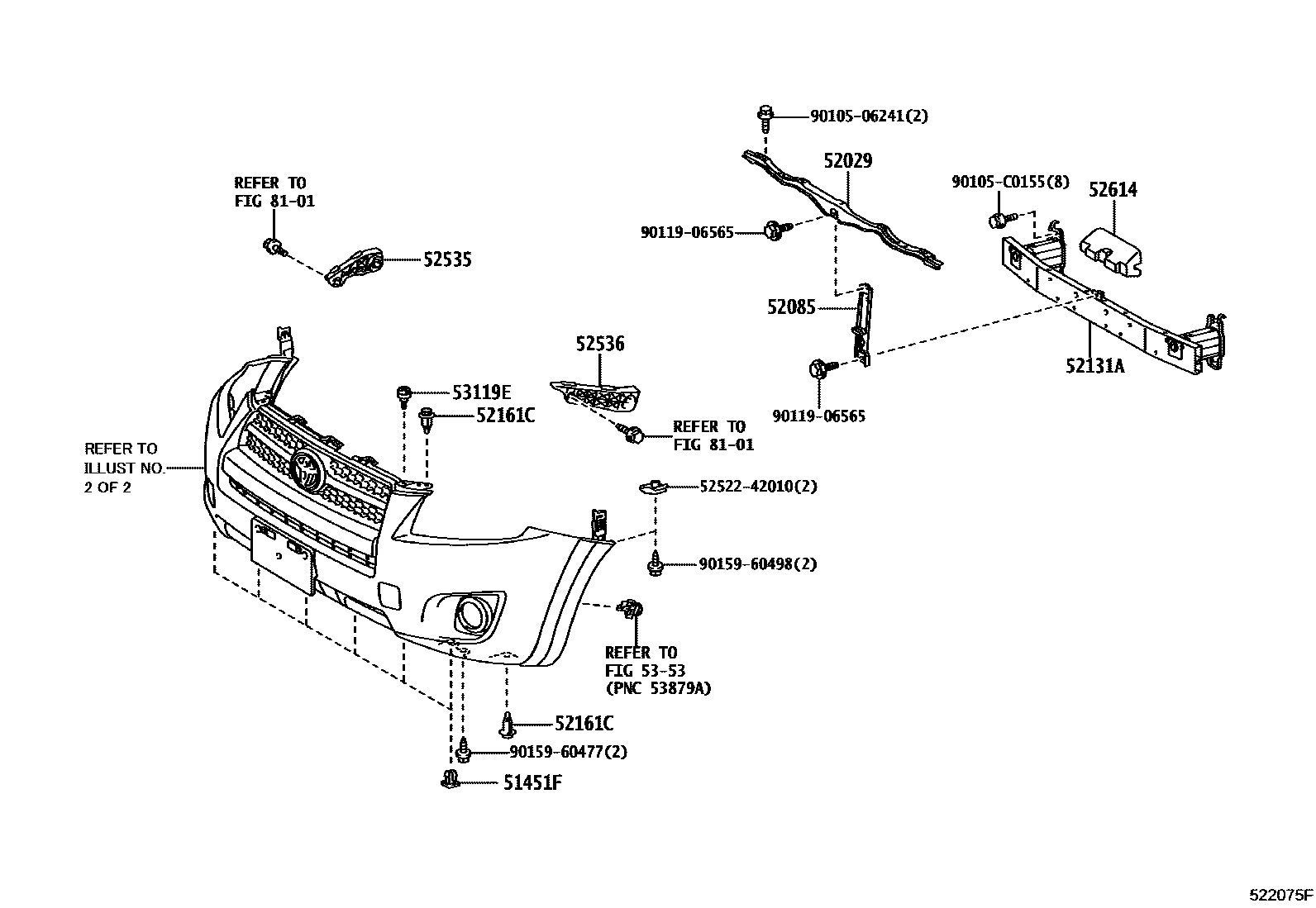

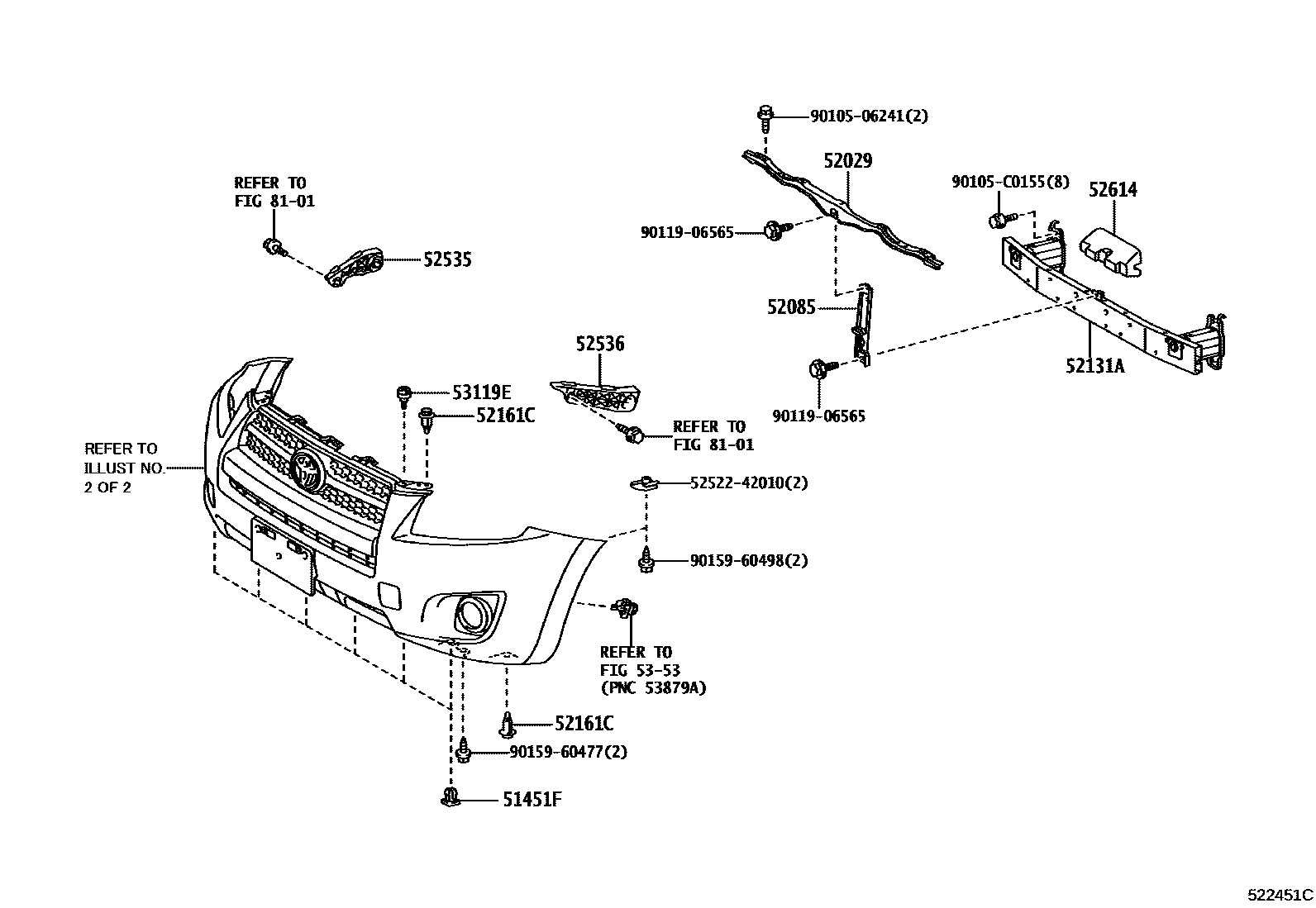

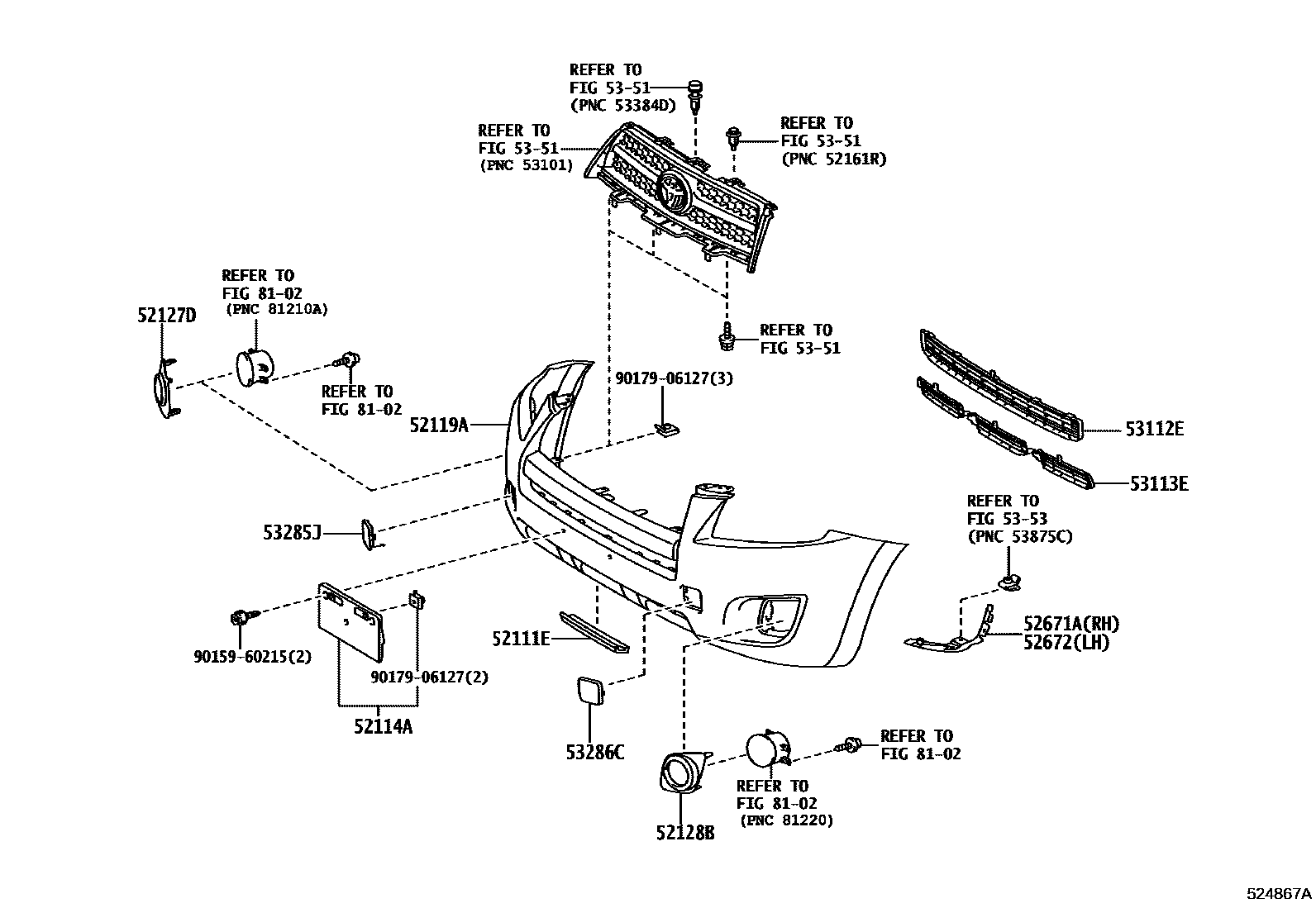

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06193 · 90189-C0006 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-0R020 |
| 52085 | Front bumper center stay sub-assembly | 52085-0R010 |
| 52111E | front bumper stay | 52111-0R020 · 52111-0R040 |
| 52114A | Front bumper extension mounting bracket | 52114-0R030 · 52114-0R050 |
| 52116B | front bumper fixings | 52115-0R030 |
| 52119A | front bumper cover | 52119-0R904 · 52119-0R905 · 52119-0R908 · 52119-0R909 |
| 52127D | Front bumper right hole cover | 52127-0R040 · 52127-0R060 |
| 52128B | Front bumper left hole cover | 52128-0R040 · 52128-0R060 |
| 52131A | Front bumper reinforcement | 52021-0R030 |
| 52161C | front bumper insert | 52161-02040 |
| 52535 | Front bumper right side fixing bracket | 52535-0R020 |
| 52536 | Front bumper left fixed bracket | 52536-0R020 |
| 52537C | Front bumper No. 2 right side fixing bracket | 52537-0R020 |
| 52538C | Front bumper No. 2 left side fixing bracket | 52538-0R020 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R020 |
| 52671A | Front bumper arm right extension section | 52671-0R030 · 52671-0R040 |
| 52672 | Front bumper arm left extension | 52672-0R030 · 52672-0R040 |
| 53112E | No. 1 radiator lower grille | 53112-0R020 |
| 53113E | No. 2 radiator lower grille | 53113-0R020 · 53113-0R040 · 53113-0R050 |
| 53119E | Radiator grille protector | 53119-20120 |
| 53122E | Radiator grille lower protective strip | 53122-0R040 |
| 53125B | Radiator grille right center protective strip | 53125-0R040 |
| 53126B | Radiator grille left middle protective strip | 53126-0R040 |
| 53285J | Front bumper arm right hole cover | 53285-0R906 · 53285-0R907 |
| 53286C | Front bumper arm left hole cover | 53286-0R906 · 53286-0R907 |
