Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

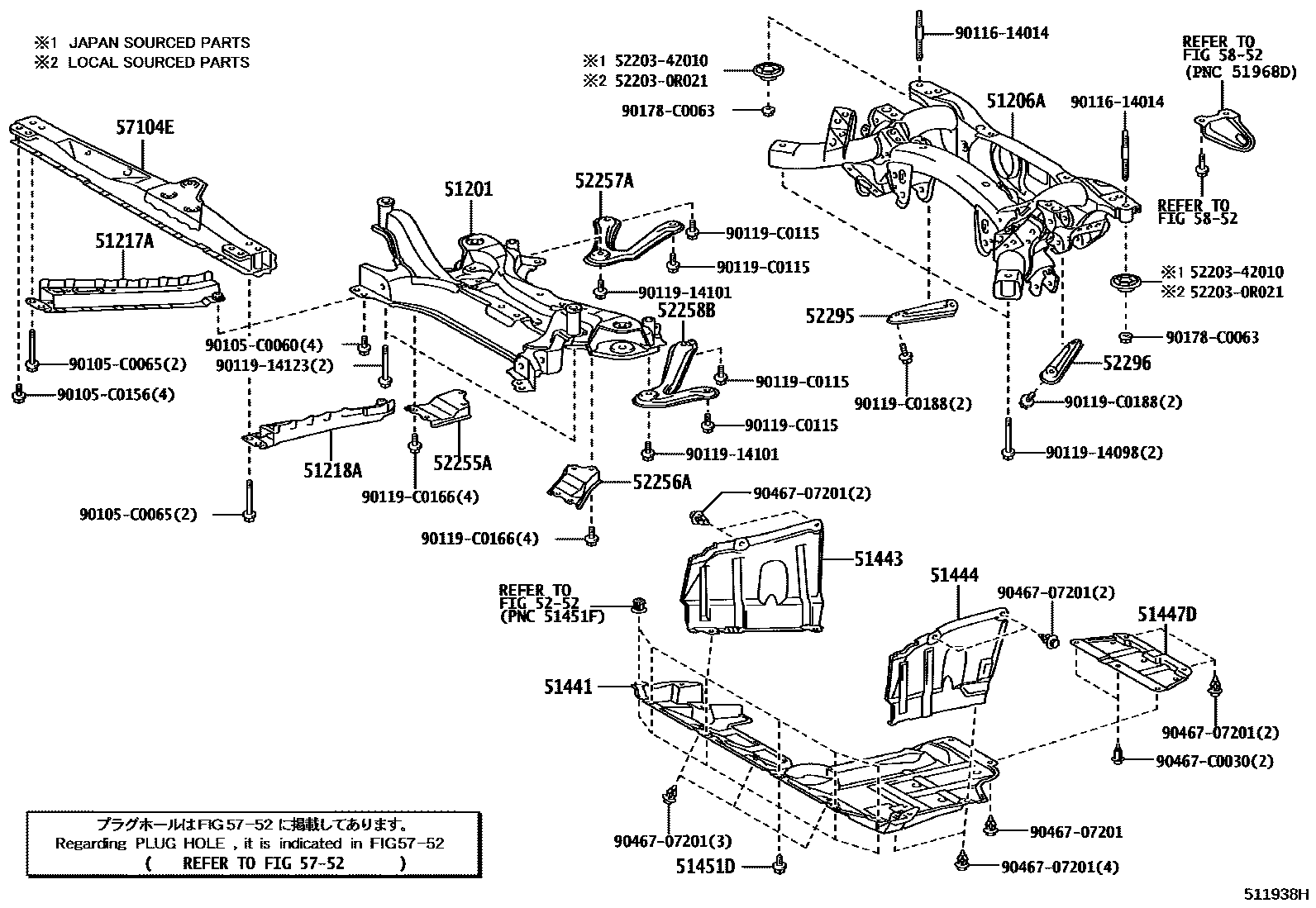

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02131 |
| 51206A | Rear suspension cross member sub-assembly | 51206-0R021 · 51206-0R042 |
| 51217A | Right front suspension cross member reinforcement | 51107-0R020 |
| 51218A | Left front suspension cross member reinforcement | 51108-0R020 |
| 51441 | No. 1 engine bottom cover | 51410-0R020 |
| 51443 | Engine right rear bottom cover | 51443-0R020 |
| 51444 | Engine left rear bottom cover | 51444-0R030 |
| 51447D | No. 4 engine center bottom cover | 51447-02030 |
| 51451D | Screw No. 1 | 90159-60498 |
| 52255A | Right front suspension cross member front bracket | 52255-02030 |
| 52256A | Left front suspension cross member front bracket | 52256-02030 |
| 52257A | Right front suspension cross member rear bracket | 52257-0R020 |
| 52258B | Left front suspension cross member rear bracket | 52258-0R020 · 52258-0R021 |
| 52295 | Right rear suspension cross member bracket | 52295-0R020 |
| 52296 | Left rear suspension cross member bracket | 52296-0R020 |
| 57104E | Front cross member sub-assembly | 57104-0R020 |
