Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

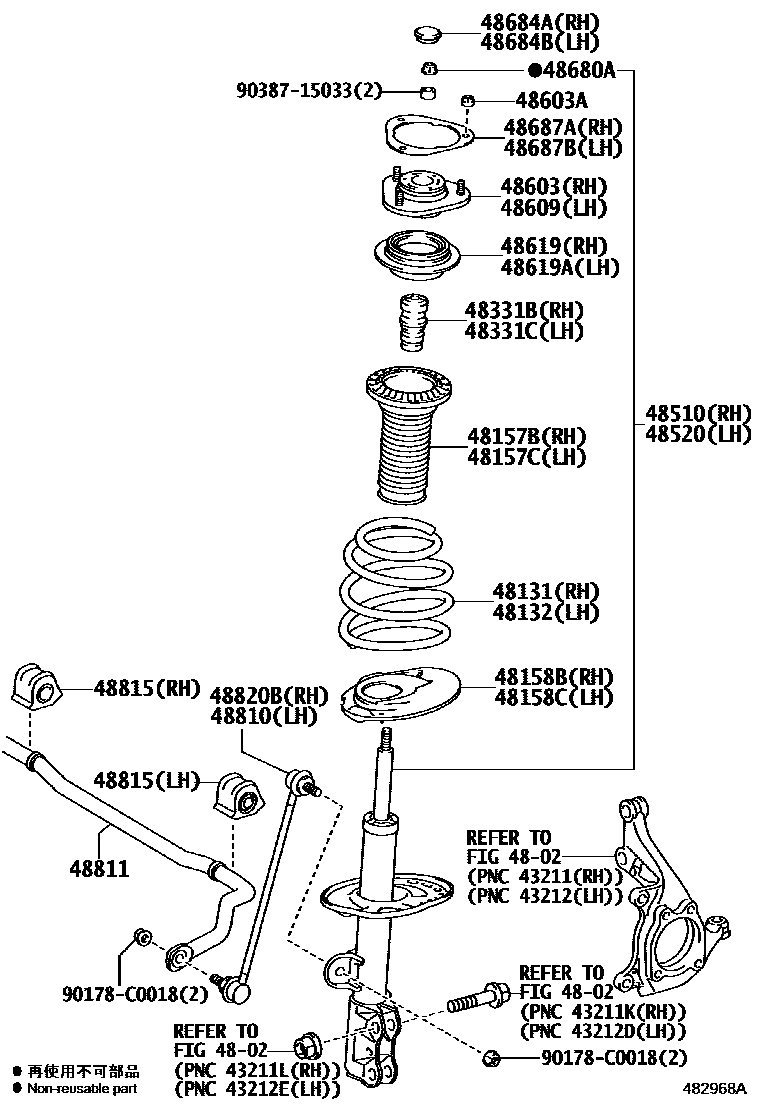

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0R060 · 48131-0R070 · 48131-0R080 · 48131-0R090 |
| 48132 | Left front coil spring | 48131-0R060 · 48131-0R070 · 48131-0R080 · 48131-0R090 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0R020 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0R020 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-0R020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-0R020 |
| 48331B | Right front spring buffer block | 48331-0R020 |
| 48331C | Left front spring buffer block | 48331-0R020 |
| 48510 | Right front shock absorber assembly | 48510-09W90 · 48510-09W91 |
| 48520 | Left front shock absorber assembly | 48520-09P90 · 48520-09P91 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0R020 |
| 48603A | Nut (for front suspension mount) | 90178-C0061 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0R020 |
| 48619 | Bearing installed on the right sliding column | 48619-0R020 |
| 48619A | Bearing installed on the left sliding column | 48619-0R020 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 |
| 48684A | Right front suspension support dust cover | 48684-0R020 |
| 48684B | Left front suspension support dust cover | 48684-0R020 |
| 48687A | Right front suspension support plate | 48687-28010 |
| 48687B | Left front suspension support plate | 48687-28010 |
| 48810 | Left front stabilizer bar link assembly | 48820-02080 |
| 48811 | front stabilizer bar | 48811-0R020 · 48811-0R030 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0R030 · 48815-0R040 · 48815-0R050 · 48815-0R060 |
| 48820B | Right front stabilizer bar link assembly | 48820-02080 |
