Toyota RAV4 制动助力器和真空管 — Figure 4703

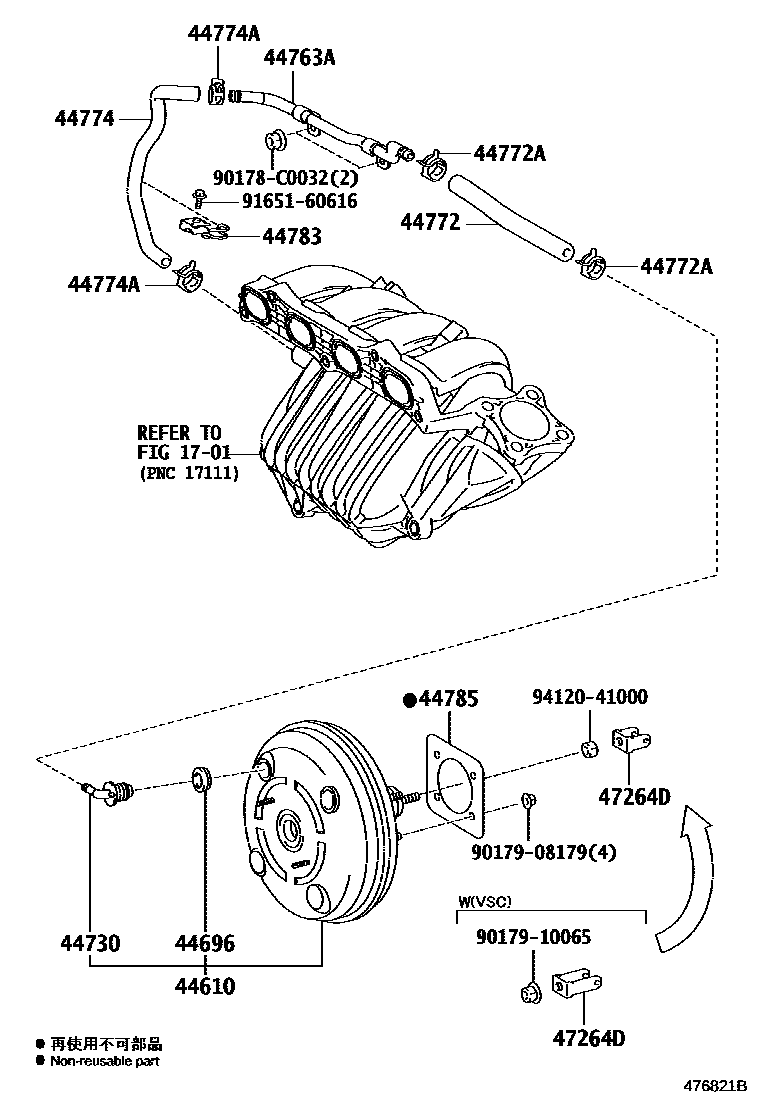

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0R031 · 44610-0R032 · 44610-0R041 · 44610-0R042 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0R010 |
| 44772 | Hoses (check valve to connector tube) | 44772-0R010 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-0R020 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44783 | Vacuum hose clamp | 44783-44010 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-48020 |
