Toyota RAV4 Brake Pedal & Bracket — Figure 4701

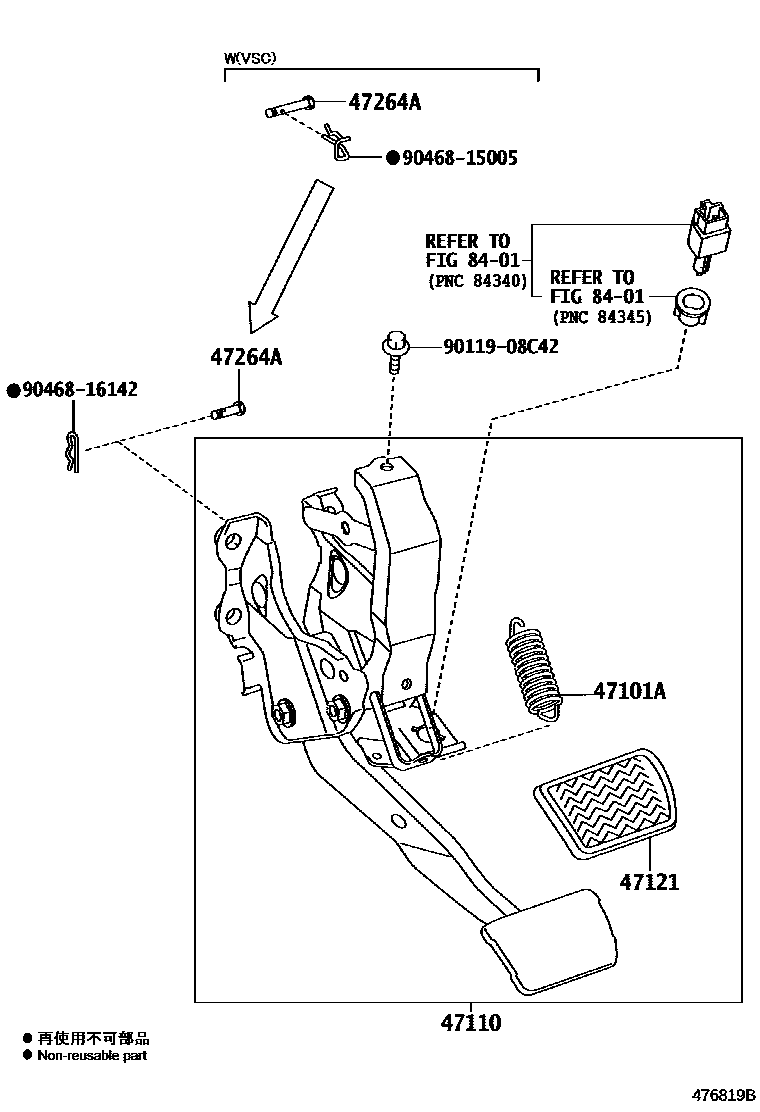

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 47146-42020 |
| 47110 | Brake pedal bracket assembly | 47110-0R030 · 47110-0R031 · 47110-0R040 · 47110-0R041 · 47110-0R050 · 47110-0R051 · 47110-0R060 · 47110-0R061 |
| 47121 | brake pedal pad | 31321-42010 · 47121-0R020 · 47121-42010 |
| 47264A | Pin (for push rod) | 90249-06180 · 90249-08256 |
