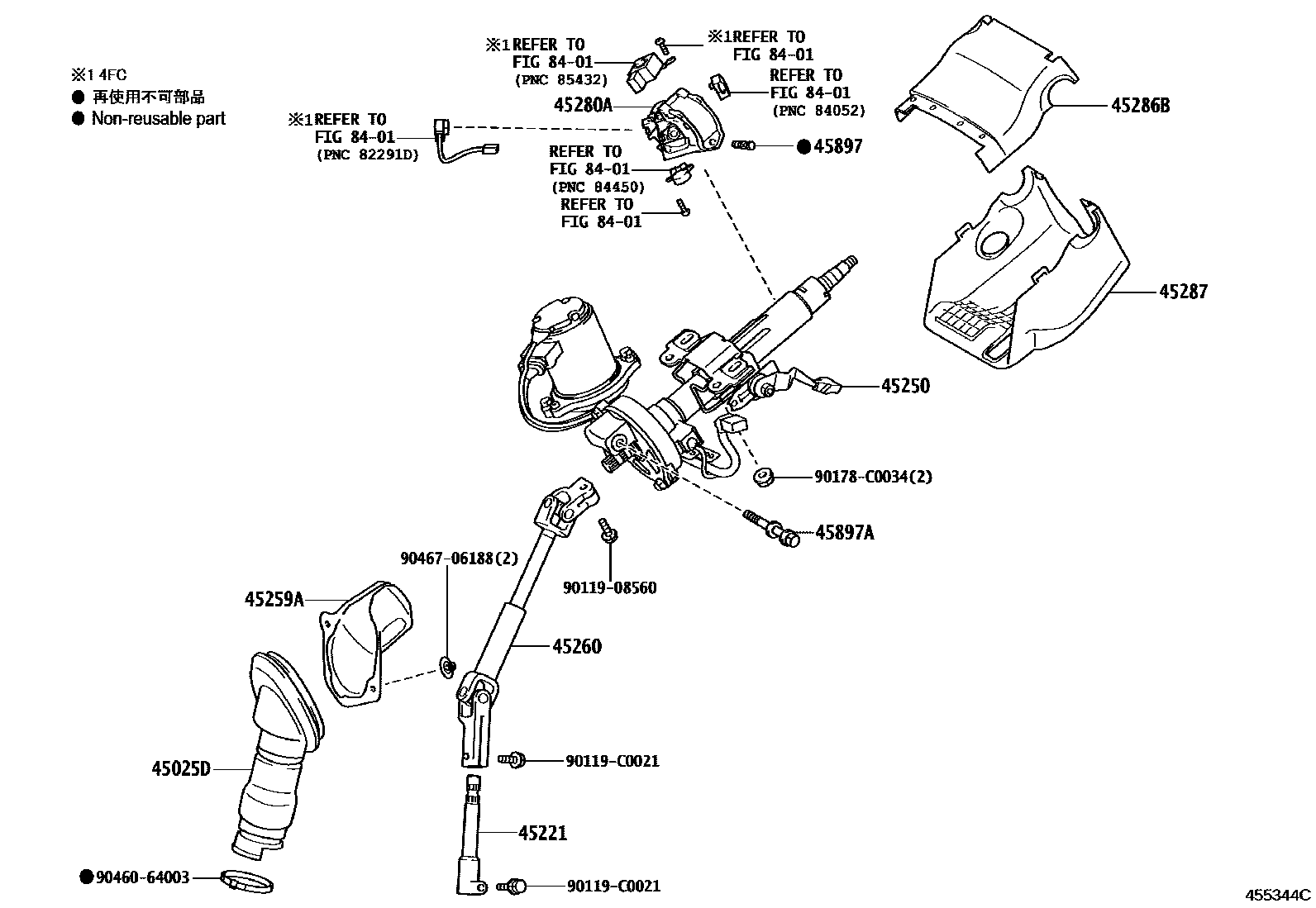

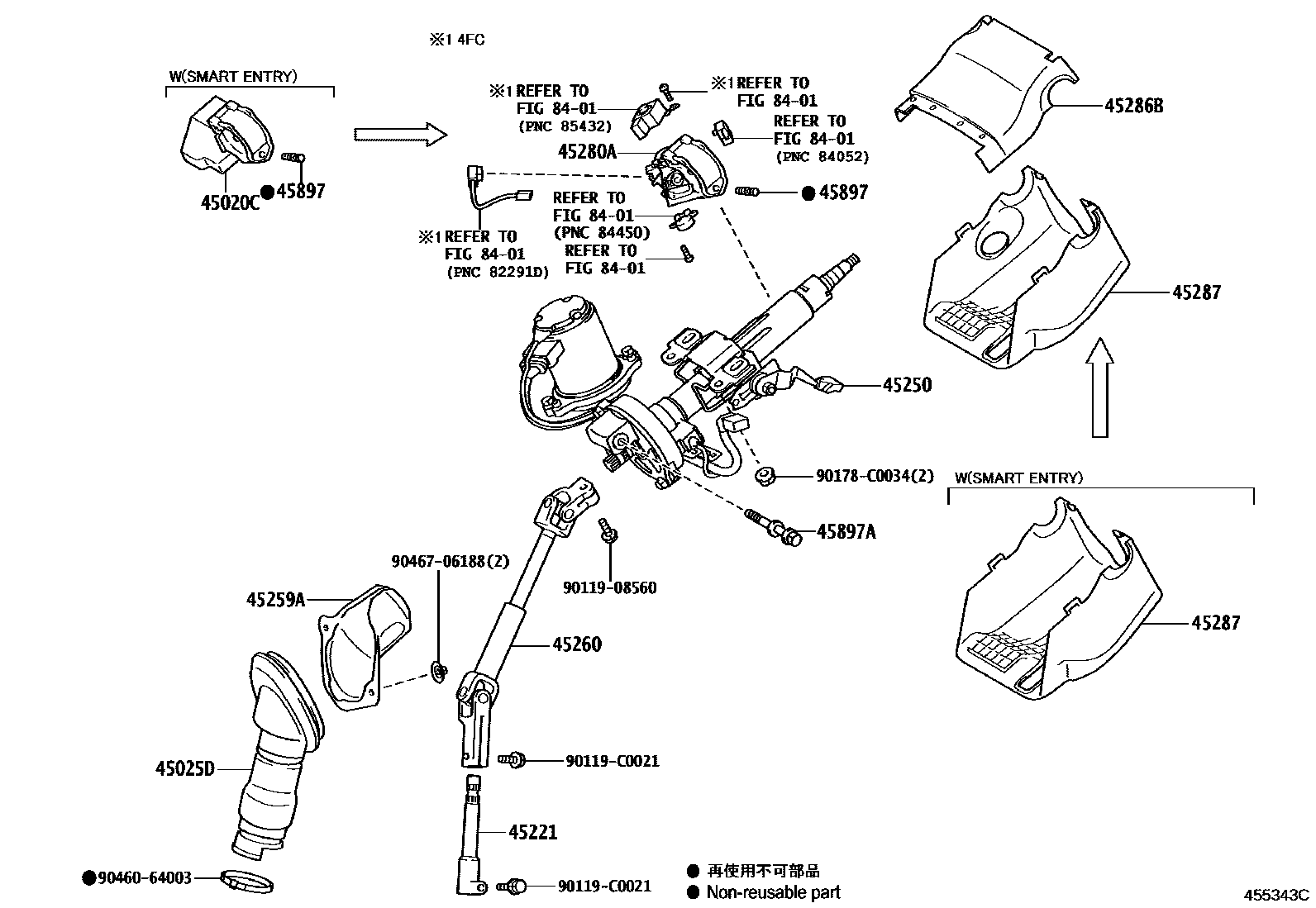

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-02250 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0R030 |
| 45221 | steering intermediate shaft | 45221-42070 · 45221-42071 |
| 45250 | Steering column assembly | 45250-42270 · 45250-42271 · 45250-42280 · 45250-42281 |
| 45259A | Steering column hole cover silencer plate | 45259-0R020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42090 |
| 45280A | Steering column upper bracket assembly | 45280-02180 · 45280-02190 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
