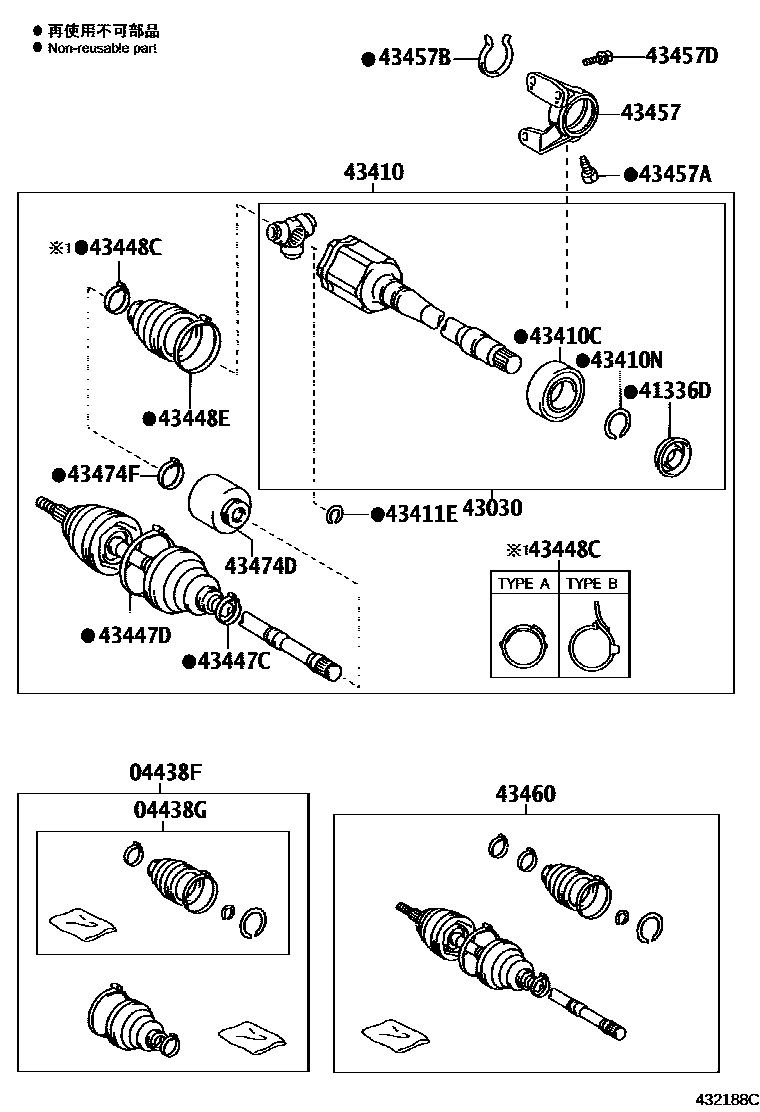

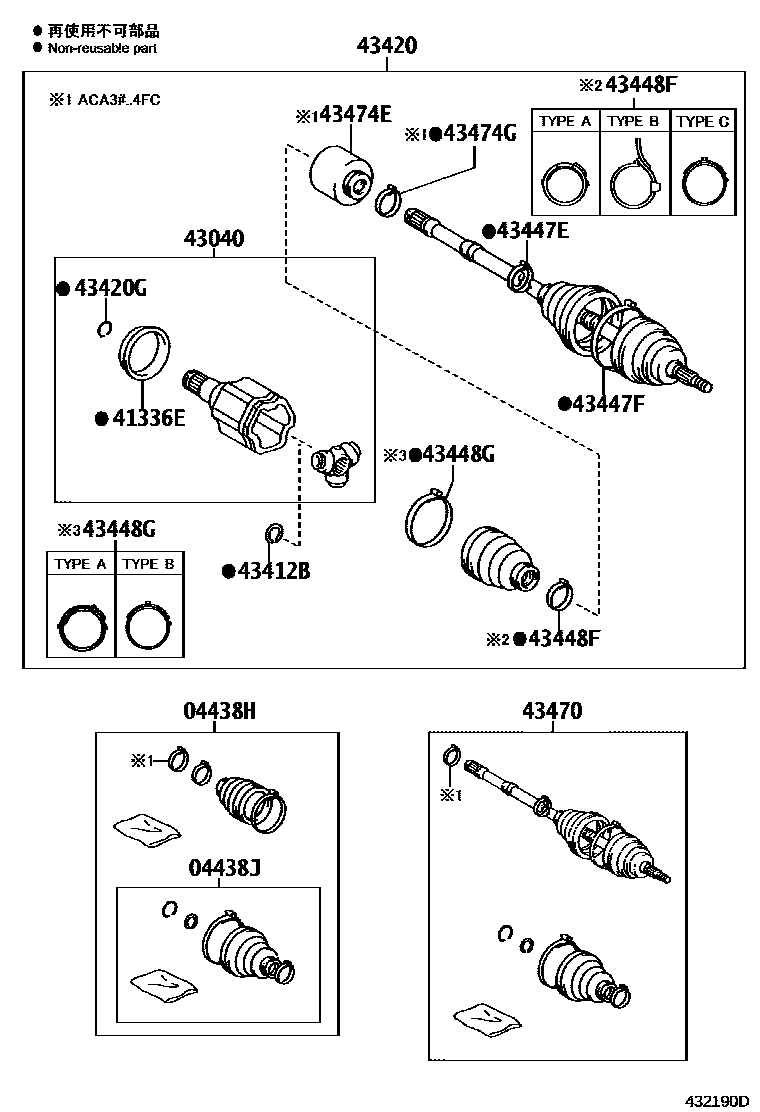

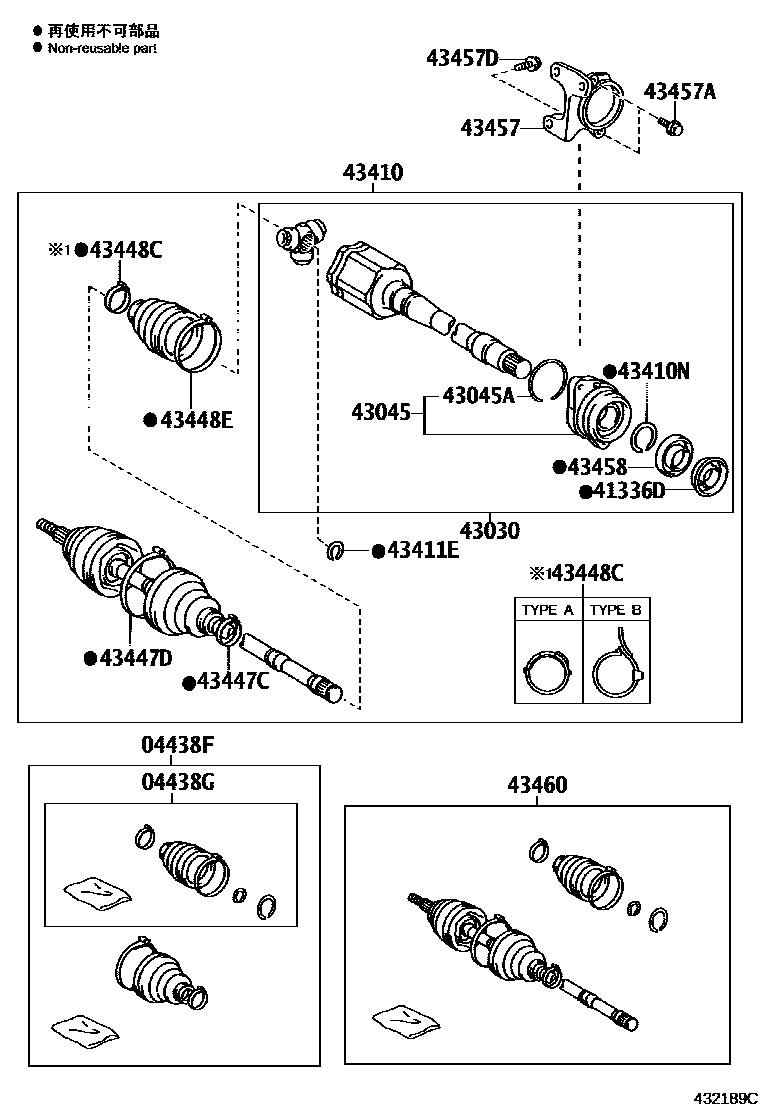

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0R050 · 04427-0R051 · 04427-0R060 · 04427-0R070 · 04427-0R071 · 04427-0R080 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0R050 · 04437-0R060 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-0R030 · 04428-0R031 · 04428-0R040 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-0R030 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-52020 |
| 41336E | Left front driveshaft dust cover | 41336-28020 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-0R010 · 43030-0R020 · 43030-0R030 · 43030-0R110 · 43030-0R120 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06190 · 43040-06300 · 43040-0R010 · 43040-0R020 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-0R010 · 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-0R050 · 43410-0R060 · 43410-0R070 · 43410-0R080 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 · 90363-C0015 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-0R050 · 43420-0R060 · 43420-0R070 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06410 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06400 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-42010 · 43457-42050 · 43457-42060 · 43457-42090 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-C0124 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-C0014 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-09X30 · 43470-09X40 · 43470-09X50 · 43470-09X60 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09X70 · 43470-09X80 · 43470-09X90 |
| 43474D | Right front driveshaft shock absorber | 43474-0R010 |
| 43474E | Left front driveshaft shock absorber | 43474-0R010 · 43474-0R020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06420 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 |
