Toyota RAV4 前桥壳和差速器 — Figure 4301

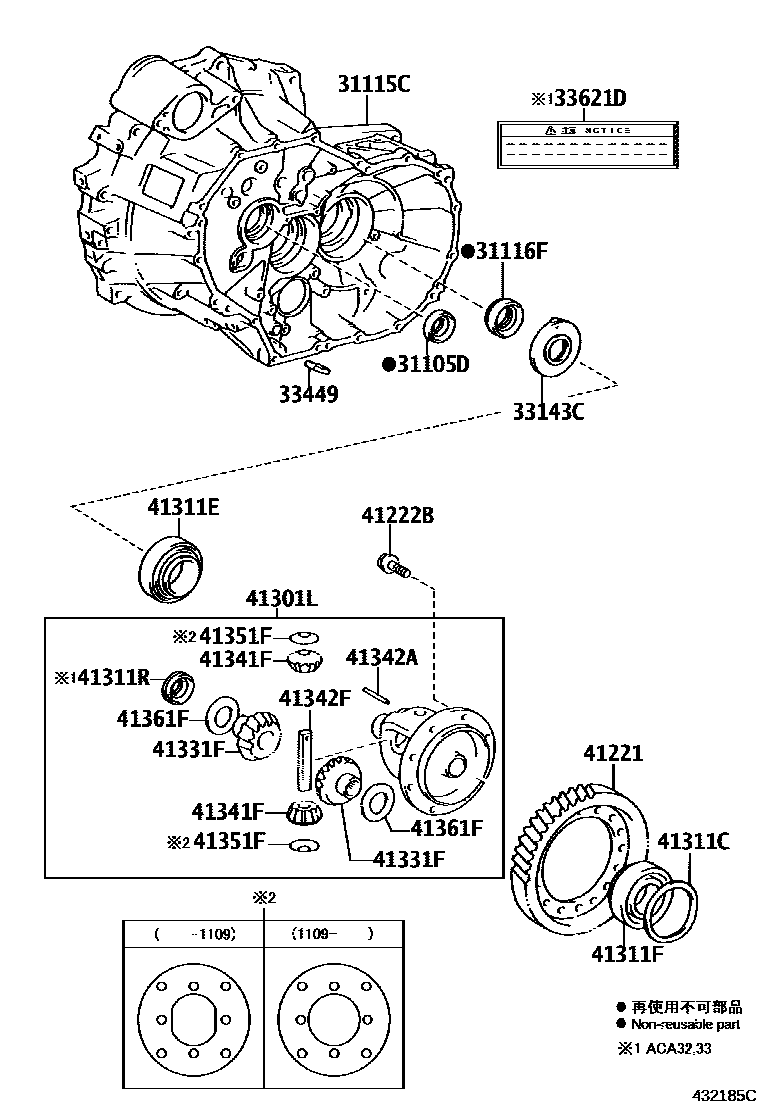

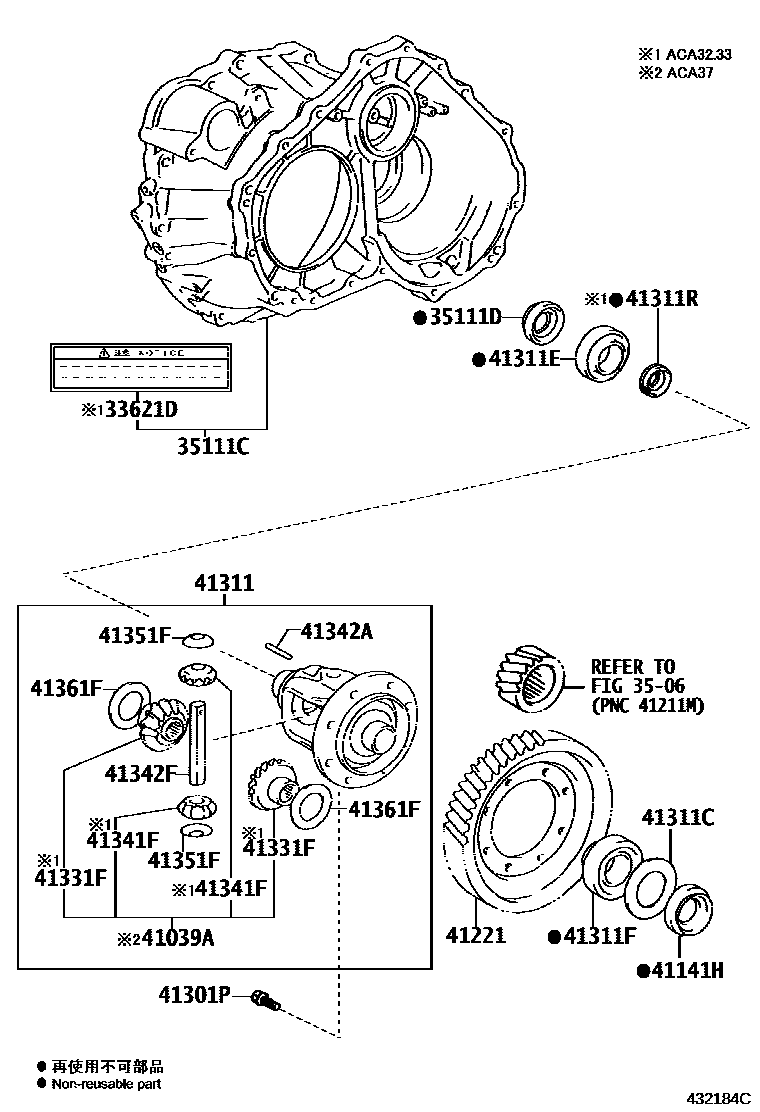

Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30017 |
| 31115C | Front transmission axle housing (MTM) | 31115-20072 · 31115-42041 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40030 · 90311-40036 · 90311-55004 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-20010 |
| 33621D | Transaxle oil information label | 33621-42010 · 33621-42020 |
| 35111C | Transmission axle housing | 35105-28032 · 35105-28044 |
| 35111D | Oil seal (for transaxle housing) | 90311-40031 · 90311-55005 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50036 · 90311-50044 · 90311-50048 |
| 41221 | Front differential ring gear | 41221-28120 · 41221-33170 · 41221-42060 · 41221-42090 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 · 41301-42100 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-28090 · 41301-28100 · 41301-42180 |
| 41311C | Rear gasket (for front differential case) | 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-56091 · 90564-56092 · 90564-56093 · 90564-56094 · 90564-56095 · 90564-56096 · 90564-56097 · 90564-56098 · 90564-56099 · 90564-56100 · 90564-56101 · 90564-56102 · 90564-56103 · 90564-56104 · 90564-56105 · 90564-56106 · 90564-56107 · 90564-56108 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 · 90564-79001 · 90564-79002 · 90564-79003 · 90564-79004 · 90564-79005 · 90564-79006 · 90564-79007 · 90564-79008 · 90564-79009 · 90564-79010 · 90564-79011 · 90564-79012 · 90564-79013 · 90564-79014 · 90564-79015 · 90564-79016 · 90564-79017 · 90564-79018 · 90564-79090 · 90564-79091 · 90564-79092 · 90564-79093 · 90564-79094 · 90564-79095 · 90564-79096 · 90564-79097 · 90564-79098 · 90564-79099 · 90564-79100 · 90564-79101 · 90564-79102 · 90564-79103 · 90564-79104 · 90564-79105 · 90564-79106 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50075 · 90366-57001 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50072 · 90366-50078 · 90366-50106 |
| 41311R | Oil seal (for front differential case) | 90316-34001 |
| 41331F | Front differential side gear | 41331-12140 · 41331-48050 · 41331-48070 |
| 41341F | Front differential planetary gear | 41341-12090 · 41341-48040 · 41341-48060 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28010 · 41342-28020 · 41342-28030 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-30060 · 41351-33011 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33010 · 41362-33080 · 41363-33010 |
