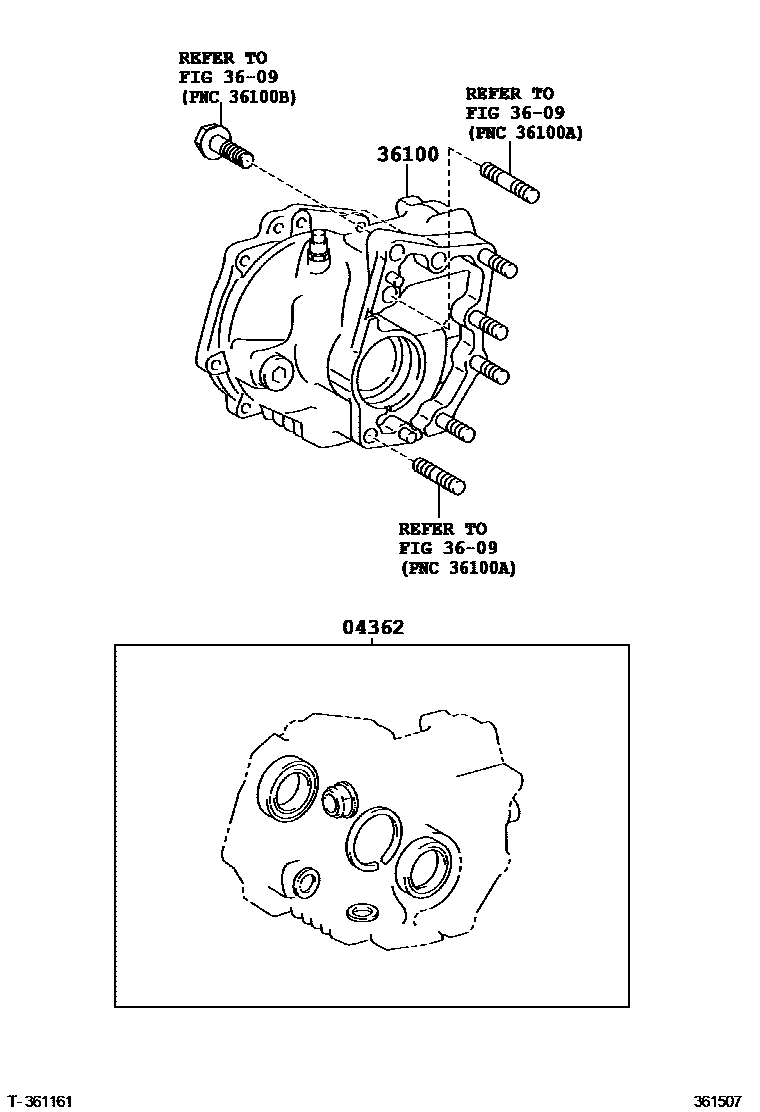

Toyota RAV4 Transfer Assembly & Gasket Kit — Figure 3608
Toyota RAV4 EPC diagram 3608, Transfer Assembly & Gasket Kit, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-42020 |
| 36100 | Transfer case assembly | 36100-42091 |
