Toyota RAV4 Shift Lever & Retainer — Figure 3312

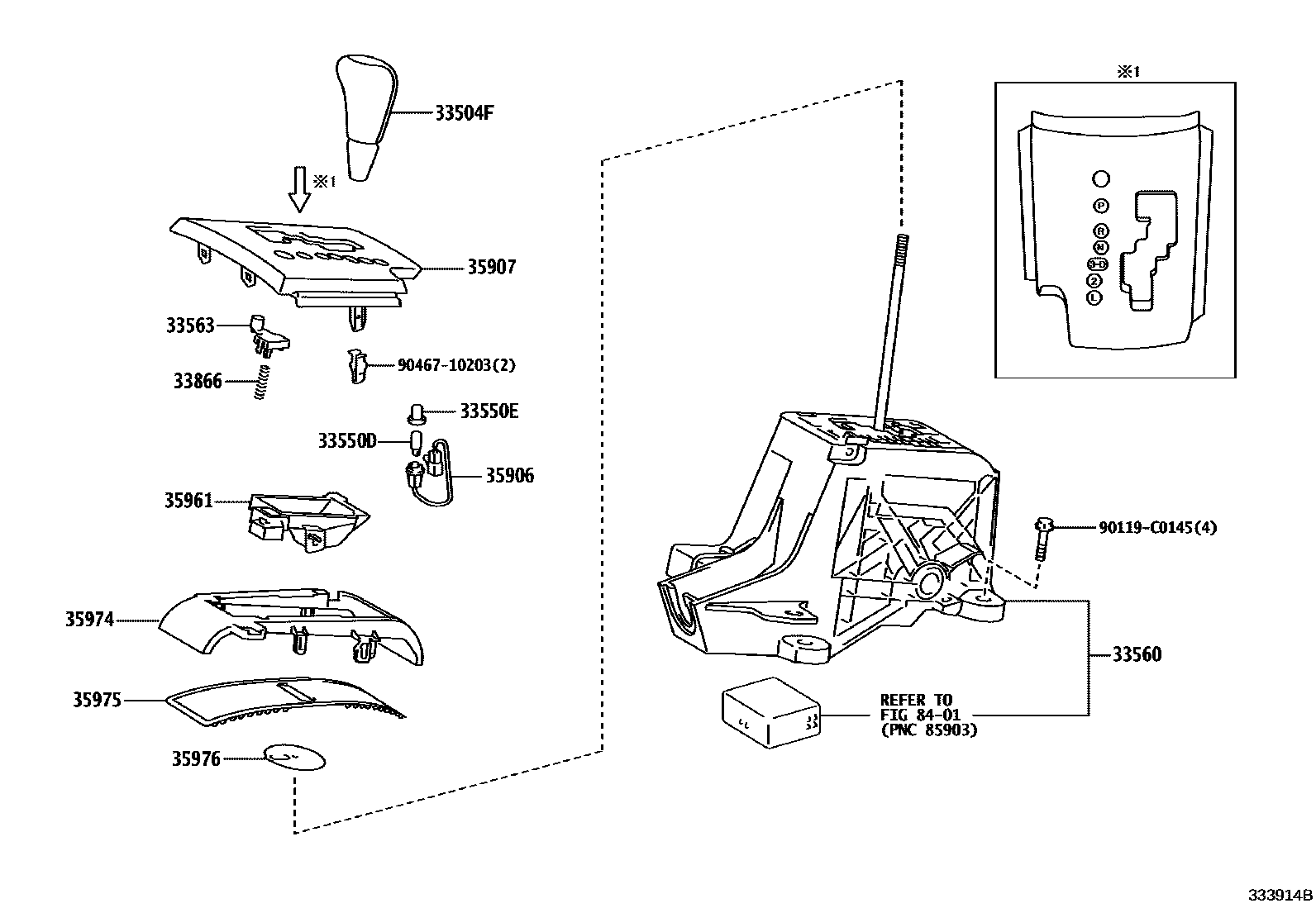

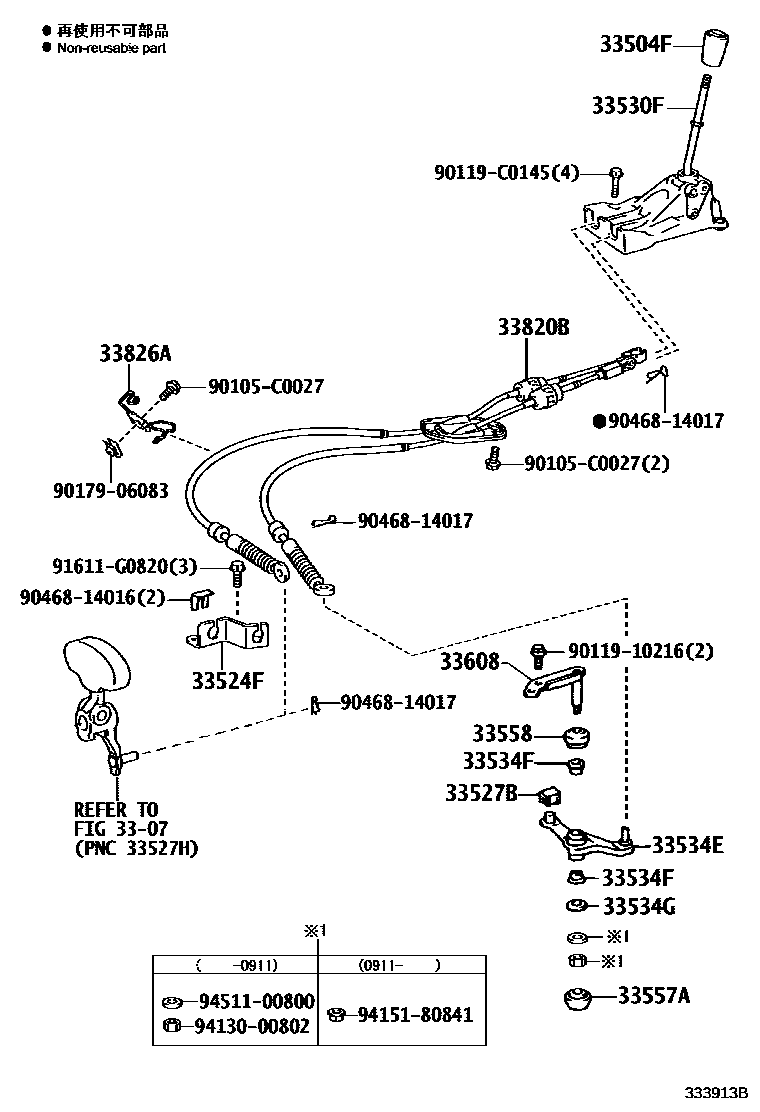

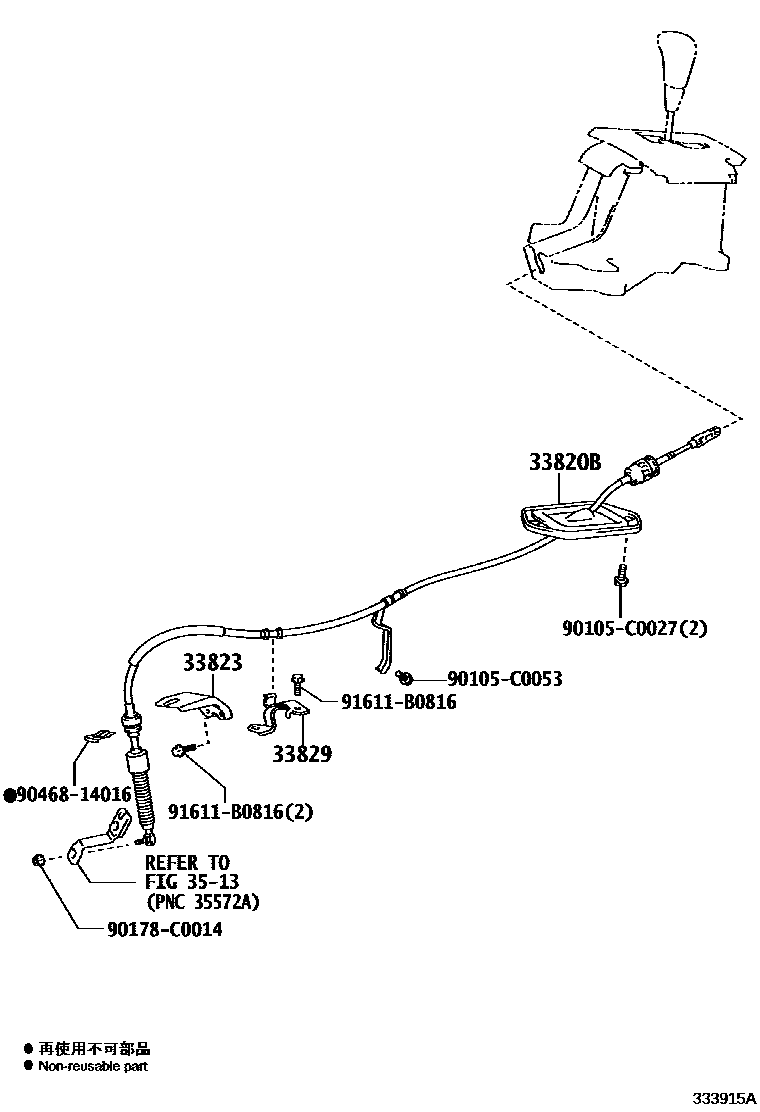

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0R010 · 33530-42080 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04071 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-0R010 |
| 33563 | Shift lock release button | 33563-0R030 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33820B | Transmission control cable assembly | 33820-0R050 · 33820-0R060 · 33820-0R070 |
| 33823 | No. 1 transmission control cable bracket | 33823-0R050 |
| 33826A | No. 2 transmission control cable bracket | 33826-44061 |
| 33829 | Transmission control cable bracket | 33829-0R070 |
| 33866 | Shift lock release spring | 33866-0R010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0R020 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-0R030 · 35907-0R040 |
| 35961 | position indicator housing | 35961-0R020 |
| 35974 | Position indicator light lower shell | 33560-0R050 |
| 35975 | Slide cover (for position indicator light) | 35975-0R020 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0R020 |
