Toyota RAV4 Alternator — Figure 1903

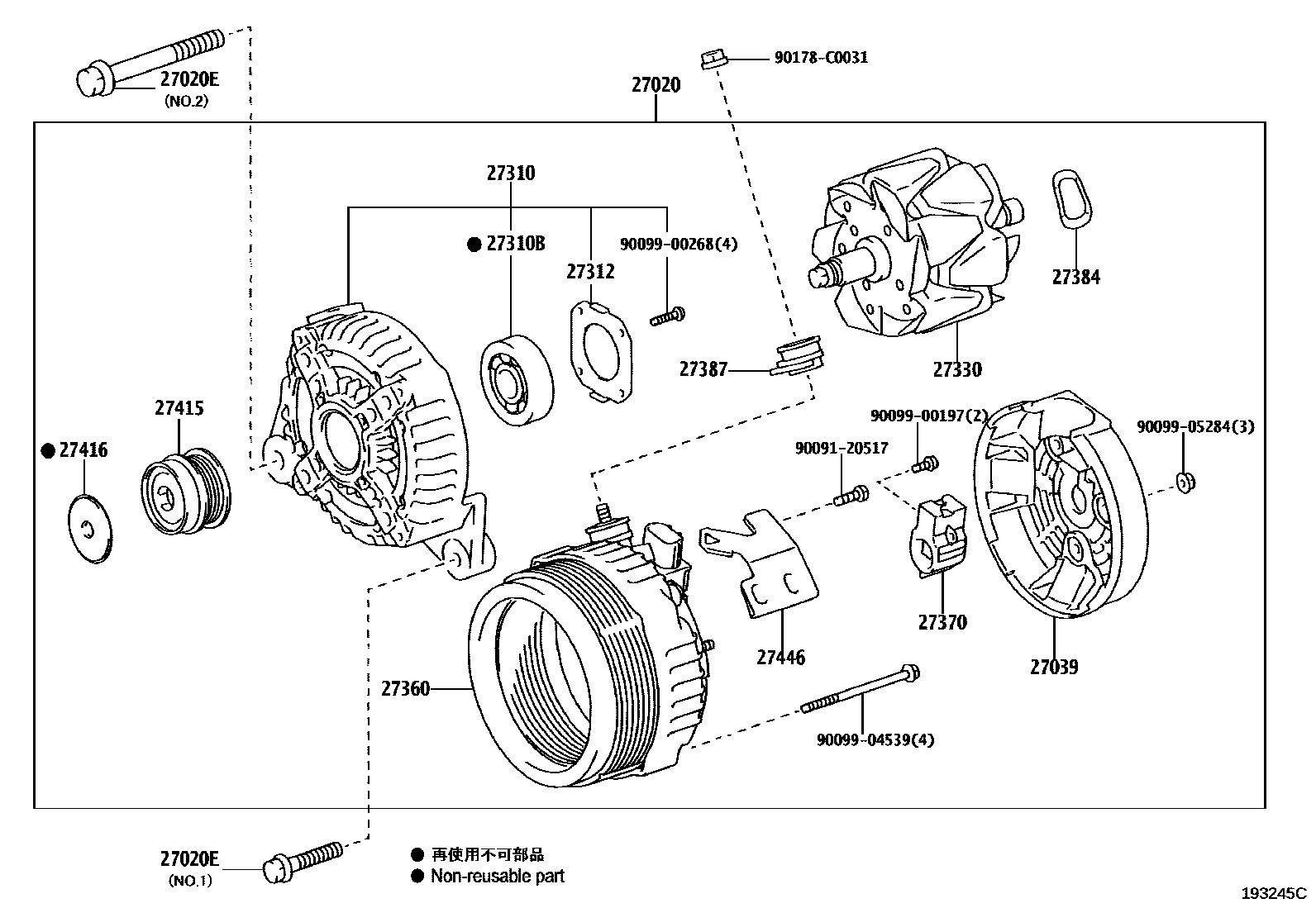

Toyota RAV4 EPC diagram 1903, Alternator, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H211 |
| 27020E | Bolts (for generator) | 90105-C0028 · 90105-C0034 · 91512-81085 · 91551-80840 |
| 27039 | Alternator Rear End Cover | 27039-0P070 · 27039-0T030 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90068-10042 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0T030 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H160 |
| 27370 | Alternator Brush Holder Assembly | 27370-0H110 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-0H110 · 27387-0T030 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W041 |
| 27416 | Generator pulley cover | 27416-0W020 |
| 27446 | Generator clamp | 27446-28120 |
