Toyota RAV4 点火线圈和火花塞 /电热塞 — Figure 1901

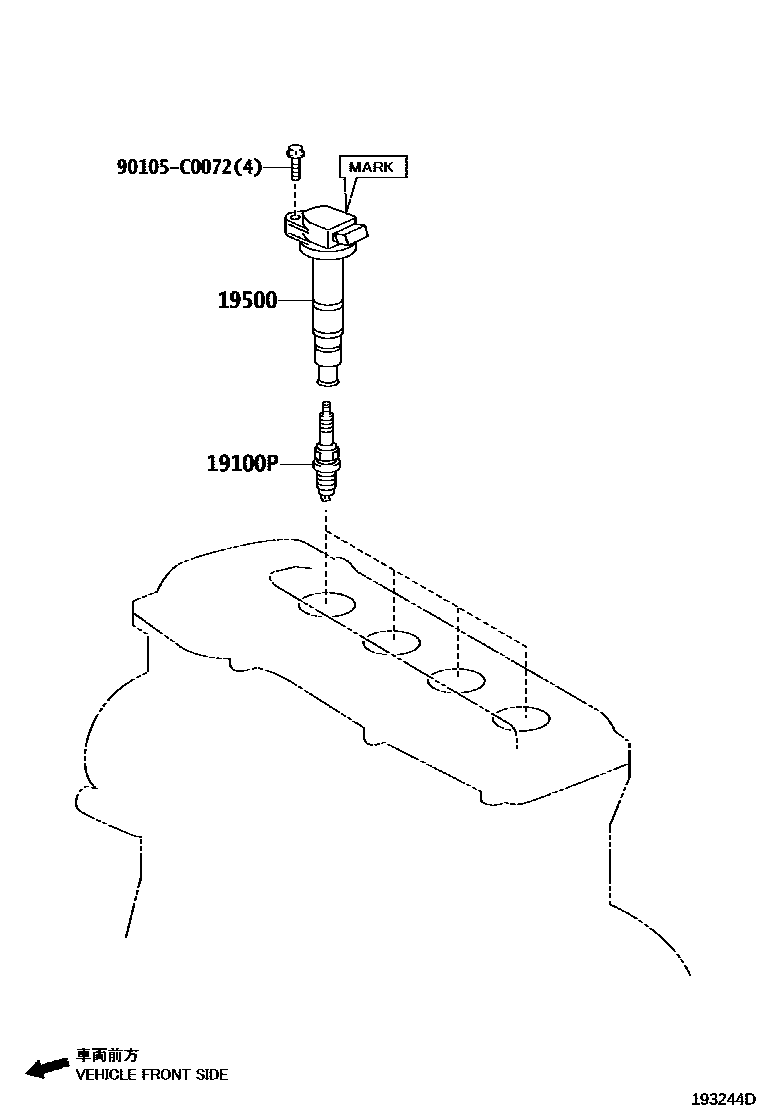

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01240 · 90919-C1002 |
| 19500 | Ignition coil assembly | 90919-02260 · 90919-C2002 · 90919-C2006 |
