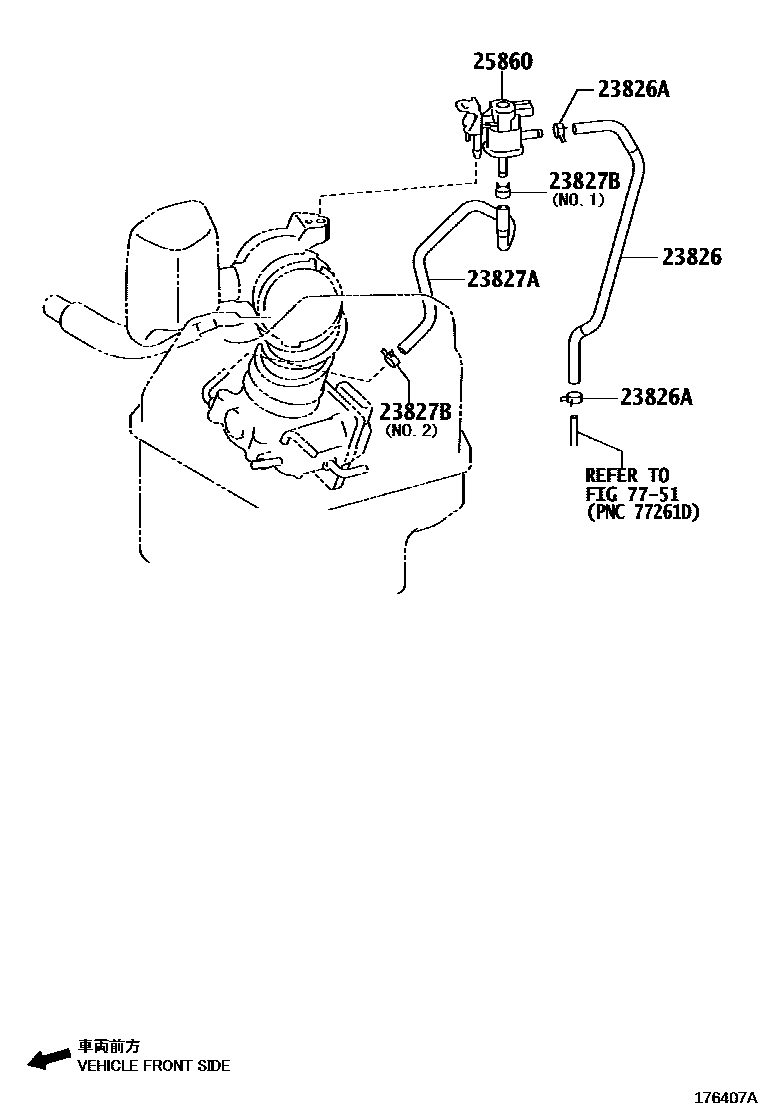

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23826 | No. 1 fuel vapor supply hose | 23826-0H300 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0H120 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-41000 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H140 |
