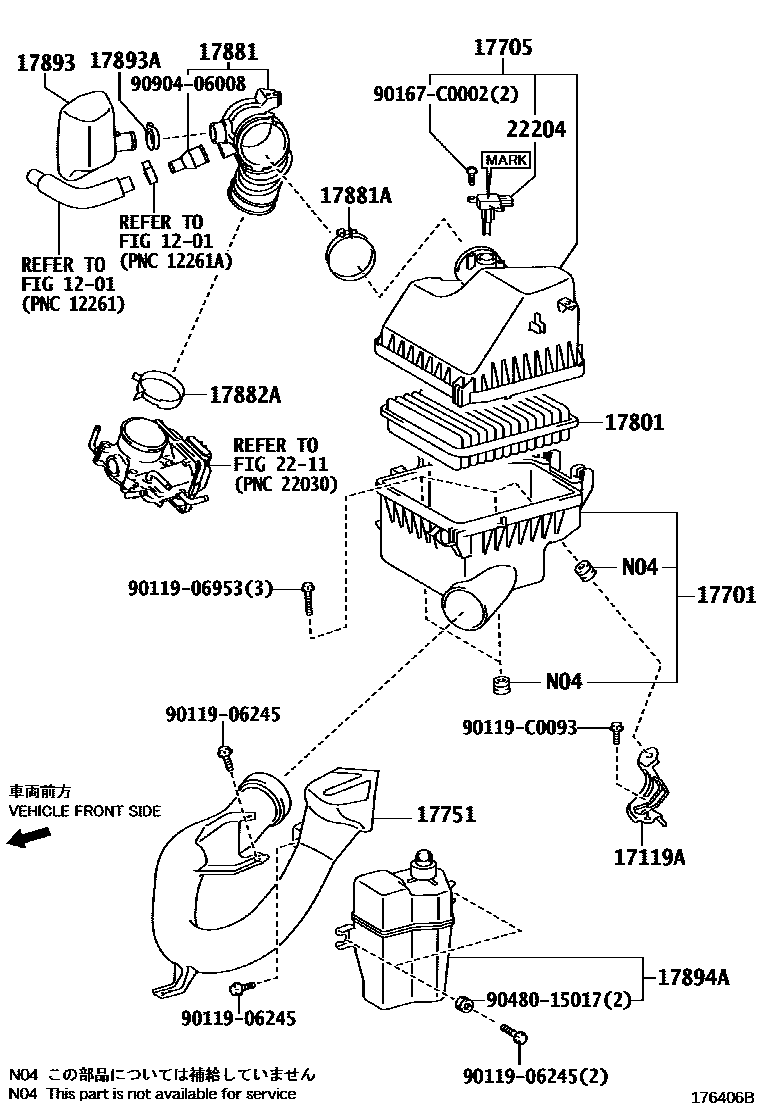

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0H090 |
| 17701 | Air filter housing sub-assembly | 17701-0H150 |
| 17705 | Air filter cover sub-assembly | 17705-0H180 |
| 17751 | No. 1 air filter air inlet | 17751-0H090 |
| 17801 | Air filter element sub-assembly | 17801-0H070 |
| 17881 | No. 1 air cleaner hose | 17881-0H150 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-C0019 |
| 17893 | Intake resonator | 17893-0H100 |
| 17893A | hose clamp | 96111-10380 |
| 17894A | No. 2 intake resonator | 17894-0H120 |
| 22204 | Intake air flow meter assembly | 22204-0P010 · 22204-0T010 · 22204-31020 |
