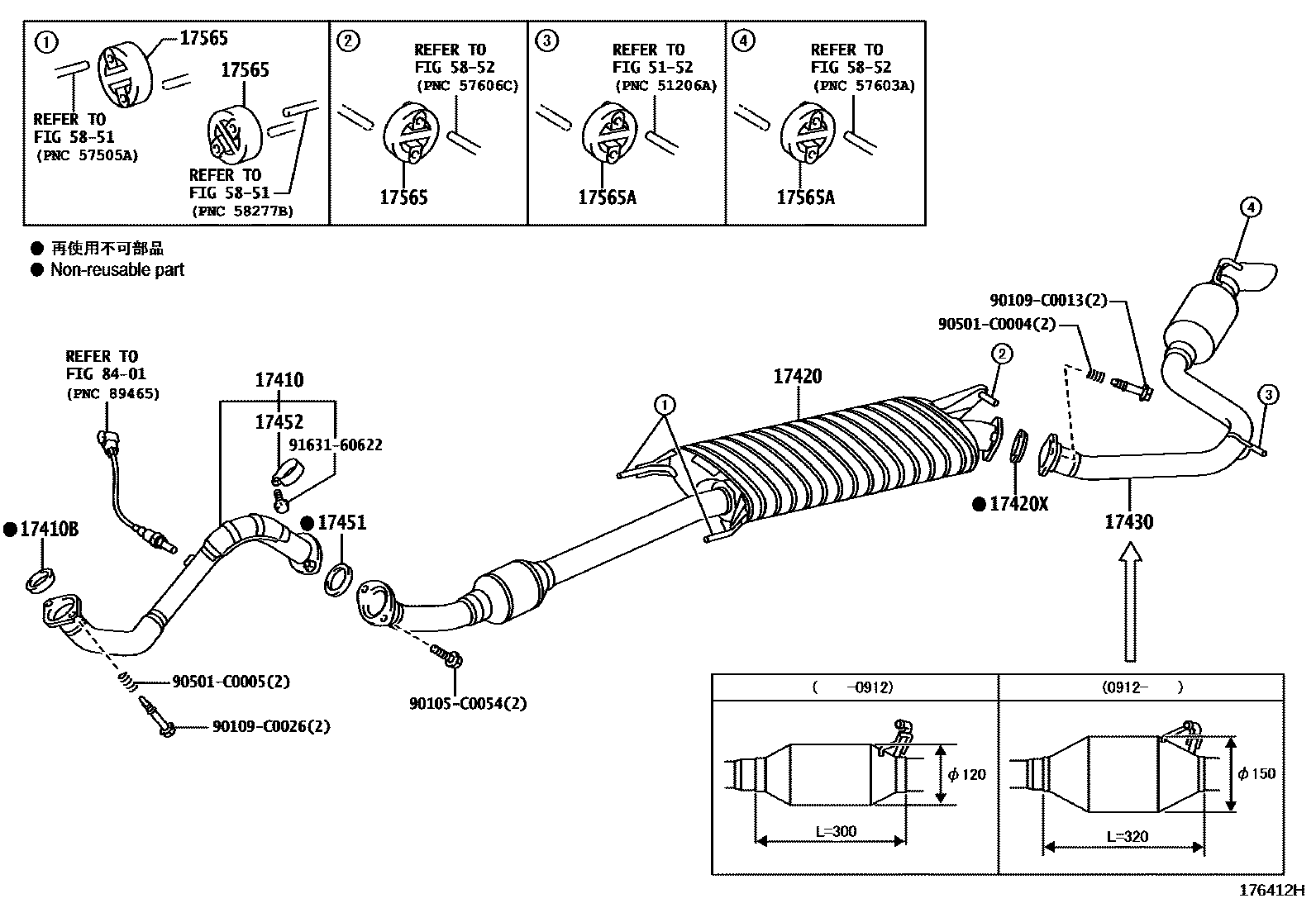

Toyota RAV4 Exhaust Pipe — Figure 1702
Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0H300 · 17410-0H301 |
| 17410B | Exhaust pipe gasket | 17451-0H020 |
| 17420 | Central exhaust pipe assembly | 17420-0H250 · 17420-0H251 · 17420-0H252 · 17420-0H300 |
| 17420X | Center exhaust pipe liner | 17451-0P011 · 17451-0P012 |
| 17430 | Exhaust tailpipe assembly | 17430-0H260 · 17430-0H261 · 17430-0H262 |
| 17451 | Exhaust pipe gasket | 90917-06078 · 90917-C6001 |
| 17452 | Exhaust pipe clamp | 17452-0H010 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0T010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D070 |
